777/888 Key Retaining Assembly

For Schlage Standard/Classic Full-Size Interchangeable Core Cylinders

777 CABINET DOOR FUNCTION

KEY-RETAINING — Standard/Classic

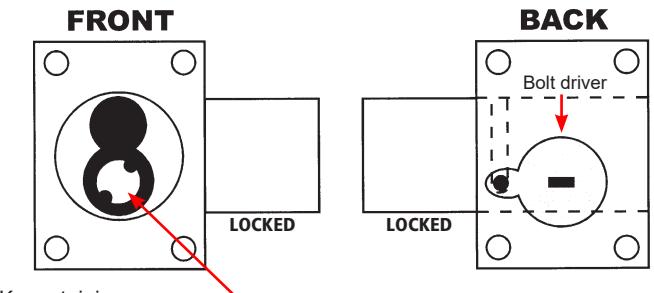

Standard FSIC Cylinder Left-Hand (LH) Key Retaining

Key retaining conversion requires purchase of alternate tail piece and bolt driver .

#777-2-OLD Tail piece Bolt driver

IMPORTANT!! Cycle lock to the LOCKED POSITION before inserting the core.

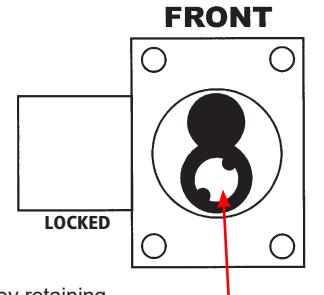

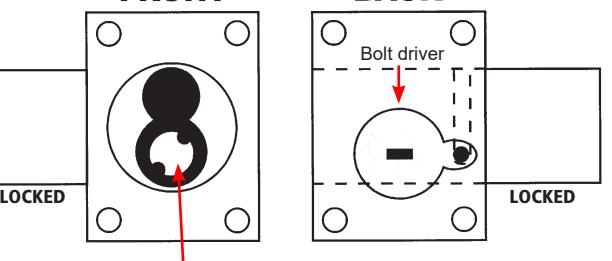

Standard FSIC Cylinder Right-Hand (RH) Key Retaining

Key retaining conversion requires purchase of alternate tail piece and bolt driver .

#777-2-OLD Tail piece Bolt driver

IMPORTANT!! Cycle lock to the LOCKED POSITION before inserting the core.

888 CABINET DRAWER FUNCTION

KEY-RETAINING — Standard/Classic

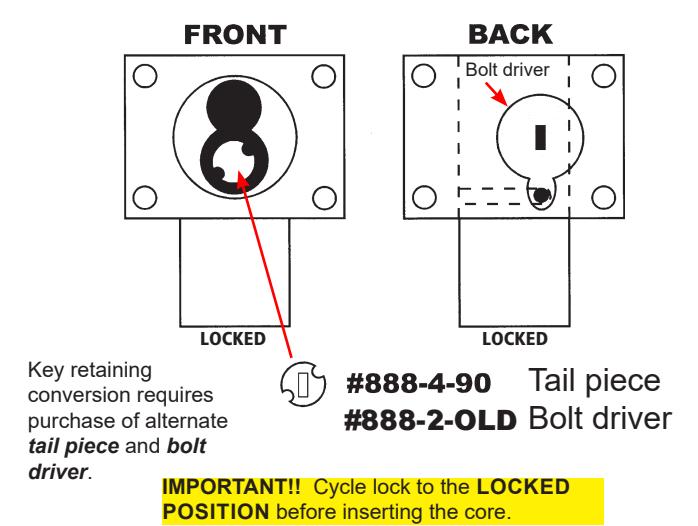

Standard FSIC Cylinder Inverted-Hand (IH) Key Retaining

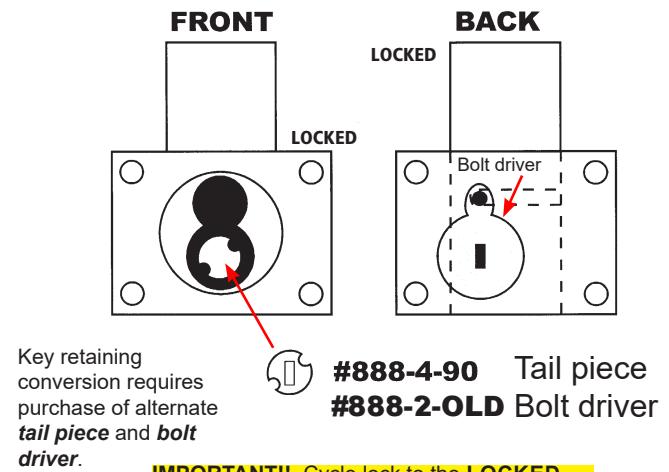

Standard FSIC Cylinder Vertical-Hand (VH) Key Retaining

IMPORTANT!! Cycle lock to the LOCKED POSITION before inserting the core.

777/888 Key Retaining Assembly

For Schlage Primus/Everest Full-Size Interchangeable Core Cylinders

777 CABINET DOOR FUNCTION

KEY-RETAINING — Primus/Everest

Primus/Everest FSIC Cylinder Left-Hand (LH) Key Retaining

LOCKED LOCKED Bolt driver

Key retaining conversion requires purchase of alternate tail piece and bolt driver .

#777-2-OLD Tail piece Bolt driver

IMPORTANT!! Cycle lock to the LOCKED POSITION before inserting the core.

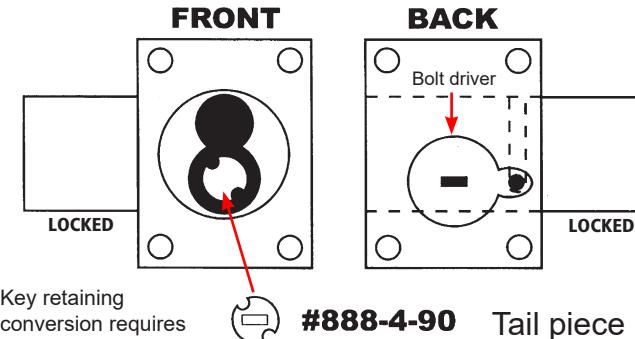

Primus/Everest FSIC Cylinder Right-Hand (RH) Key Retaining

#777-2-OLD Tail piece Bolt driver

IMPORTANT!! Cycle lock to the LOCKED POSITION before inserting the core.

888 CABINET DRAWER FUNCTION

purchase of alternate tail piece and bolt

driver .

KEY-RETAINING — Primus/Everest

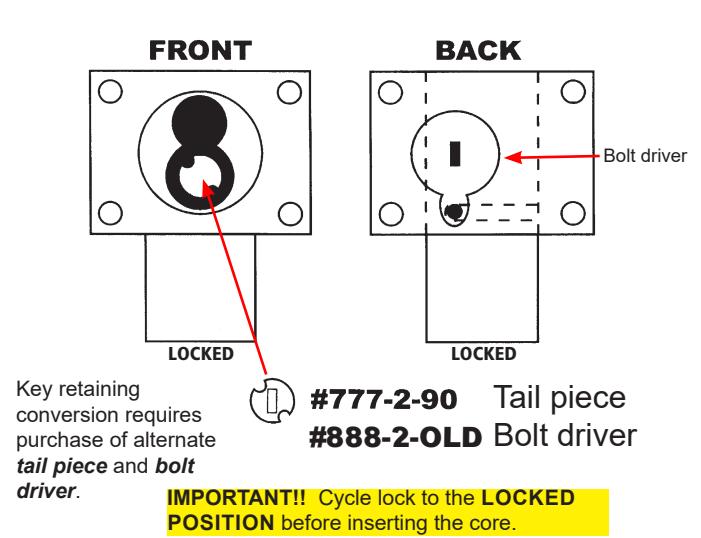

Primus/Everest FSIC Cylinder Inverted-Hand (IH) Key Retaining

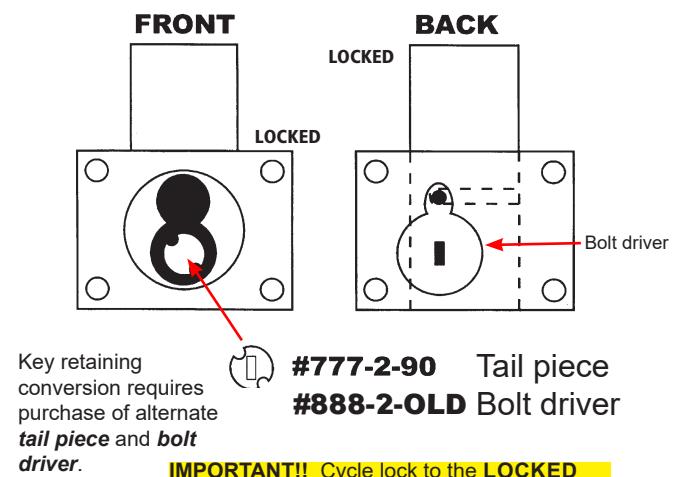

Primus/Everest FSIC Cylinder Vertical-Hand (VH) Key Retaining

IMPORTANT!! Cycle lock to the LOCKED POSITION before inserting the core.
