754LC | 854LC

LC Series: Less Cylinder Deadbolt Door & Drawer Cabinet Locks for Sargent Original Cylinders

GENERAL SPECIFICATIONS

Keyway: LC Series, less cylinder locks accept Sargent deadbolt-style 6-pin cylinder C480-2 (13-3457)

Rekeyable: Easily rekeyable via set-screw cylinder

removal mechanism

Standard function: Key removable in locked or

unlocked position (non-handed) US Patent Nos: 4,899,563; 4,920,774

Body: Zinc die cast Bolt: Brass.

Barrel diameter: 1-1/8" Barrel length: 1-3/8"

Finish: US26D (satin chrome) or US3 (polished

brass)

Includes: All parts to work with Sargent original cylinder (see cylinder information below)

CYLINDER INFORMATION

Cylinder: Not included

Accepts: Sargent C480-2 (13-3457) 6-pin deadbolt

cylinder

OPTIONAL ACCESSORIES

Spacers: 10-348 (1/4" thick), 10-349 (1/2" thick),

10-350 (1/8" thick)

Strikes: 10-052, 10-056, 10-057, 10-058, 12-2,

12-3, 12-4 Trim collar: TR78

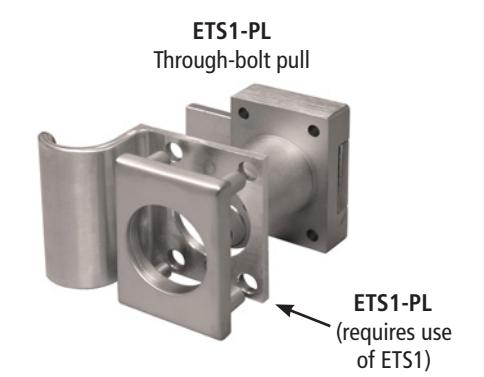

Through-bolt hardware: ETS1 through-bolt plate,

ETS1-PL trim pull and ETST1 template

754LC

Function: Cabinet door lock Bolt throw: 15/16"

854LC

Function: Drawer lock Bolt throw: 7/8"

AVAILABLE FINISHES

US26D US3

INCLUDED ACCESSORIES

10-056 strike Notched bar strike

754LC | 854LC

LC Series: Less Cylinder Deadbolt Door & Drawer Cabinet Locks for Sargent Original Cylinders

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

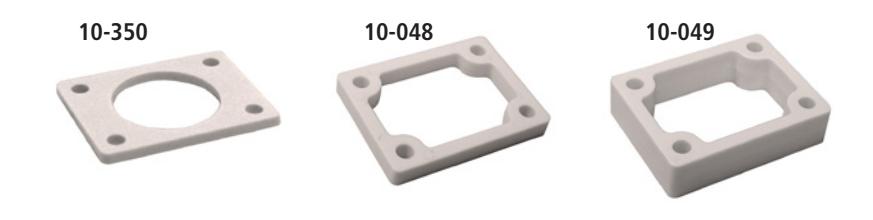

Internal Plastic Spacers

• 10-350 1/8" thick plastic spacers
• 10-348 1/4" thick plastic spacers
• 10-349 1/2" thick plastic spacers

Strikes

• Plastic bar strikes: 10-054, 10-055, 10-057, 10-058. Metal strikes: 10-056 12-1, 12-2, 12-3, 12-4

Trim Ring

• TR78 trim ring

Through-Bolt Mounting Plate

External metal 1/8" or 1/4" through-bolt plate allows for secure and attractive flush mounting of the cabinet lock face. Available in US3 or US26D finish.

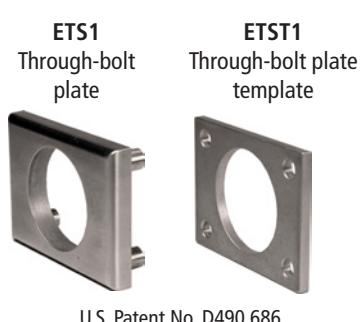

• ETS1-125 through-bolt plate, 1/8" thick
• ETS1-250 through-bolt plate, 1/4" thick

Through-Bolt Mounting Plate Template

Allows for proper mounting hole placement of throughbolt plate. Can be used as a 1/8" shim spacer. Available in US3 and US26D finish.

• ETST2 through-bolt plate template

U.S. Patent No. D490,686

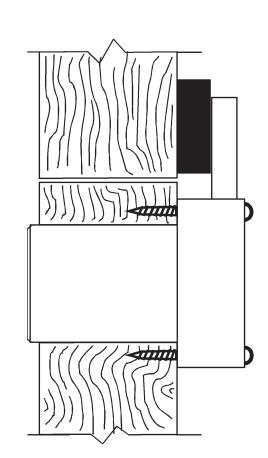

DIMENSIONS | TYPICAL INSTALLATION

754LC Door Lock

854LC Drawer Lock

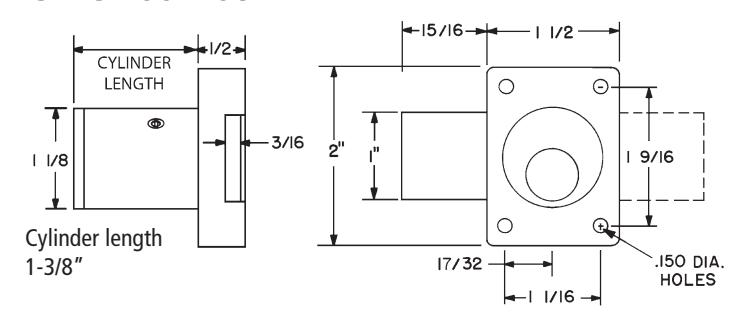

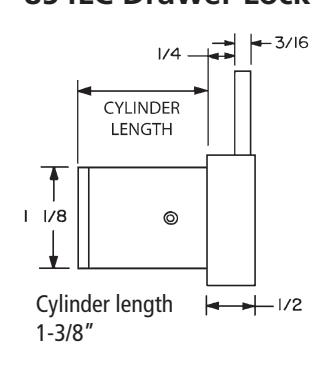

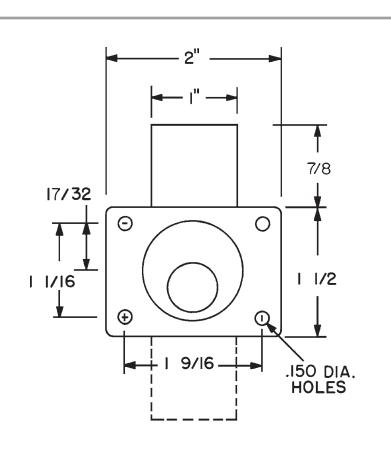

754LC - top view 854LC - side view
