PRODUCT DATA SHEET

729R

SFIC: Showcase, Ratchet Lock For BEST style

ANSI/BHMA: Complies with clause 6.3 (8.2~8.4) of ANSI/BHMA A156.11 ANSI standards

SPECIFICATIONS

Retrofits: Best 3S

ANSI/BHMA: Complies with clause 6.3 (8.2~8.4) of

ANSI/BHMA A156.11 ANSI standards Use: Sliding glass or wood doors

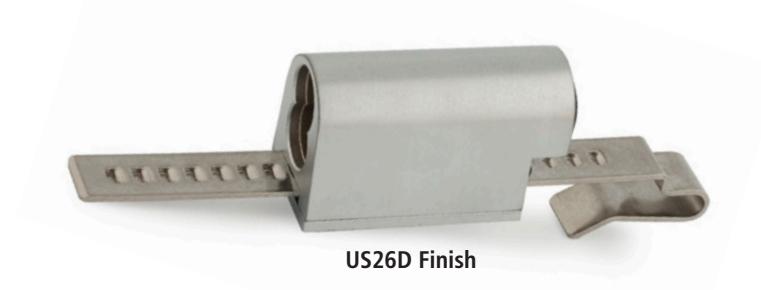

Body: Zinc die cast Strap: Steel Finish: 26D

Packaged: Packed 10 per box

KEYING INFORMATION

Cores: Not included.

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen XT

or VIDEX CyberLock SFIC cylinders

INCLUDED ACCESSORIES

729RS-1 strap for 3/16" to 1/4" material thickness 725-1 spacer to fit 6 or 7 pin cores 725-PA plastic thumbturn

OPTIONAL ACCESSORIES

Alternate straps: 729RS-2 strap for 3/8" material thickness, or 729RS-3 strap for up to 5/8" material thickness

SFIC cores: 206/207 Series

INCLUDED ACCESSORIES

SFIC: Rim Latch Door & Drawer Cabinet Lock

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

206/207 Series

• 206 Series 6-pin SFIC cylinder
• 207 Series 7-pin SFIC cylinder

AVAILABLE KEYWAYS
A	B	C	D	E	F	G	H
J	K	L	M	Q	1C	1D	KMT300

Alternate straps (available separately)

All straps are 6" in length.

• 729RS-2 strap for 3/8" material thickness
• 729RS-3 strap for up to 5/8" material thickness

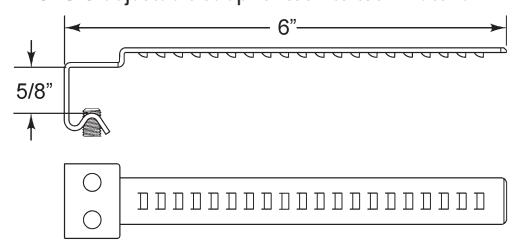

729RS-2 strap for 3/8" material 729RS-3 adjustable strap for 3/8" to 5/8" material

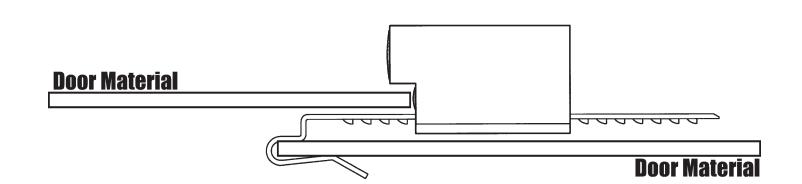

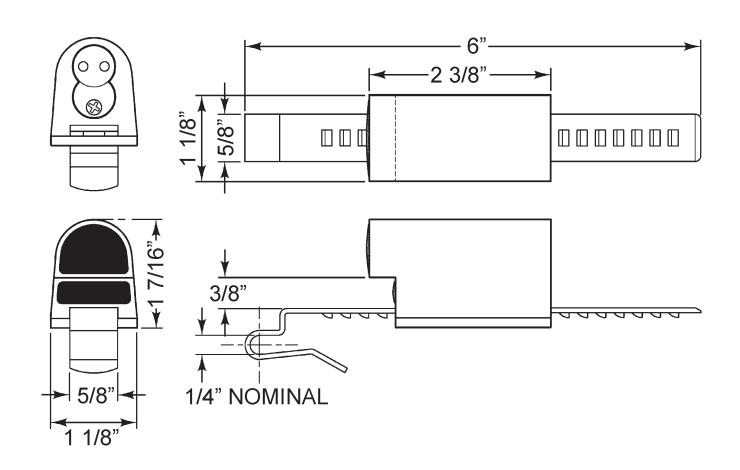

DIMENSIONS | TYPICAL INSTALLATION
