View PDFInstallation Instructions

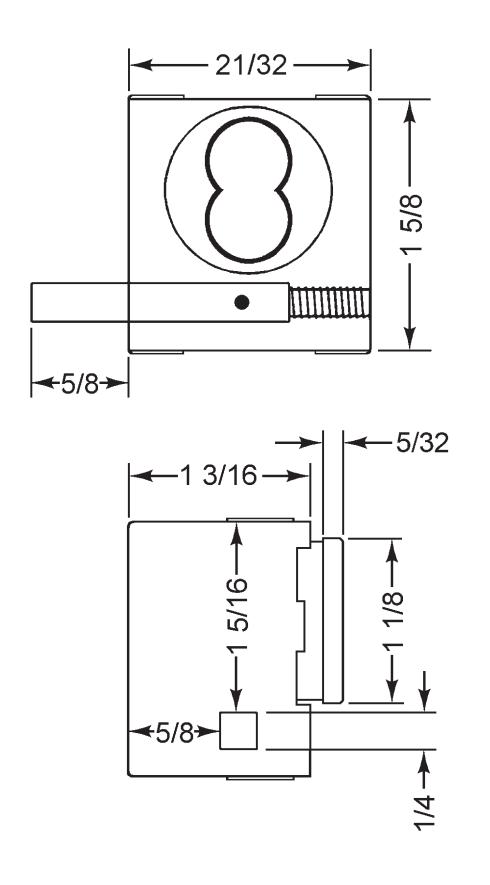

728MBL
For metal mail boxes

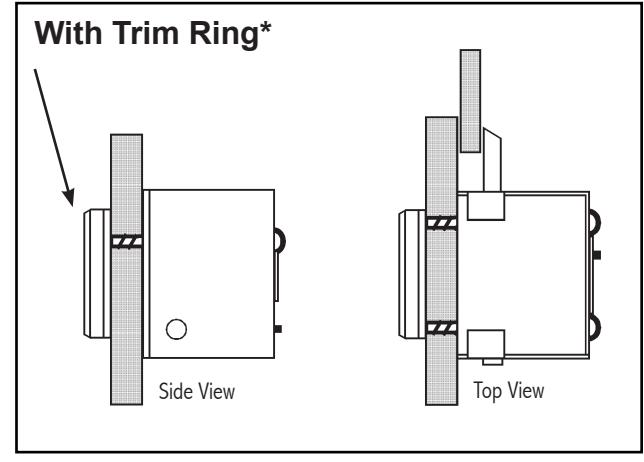

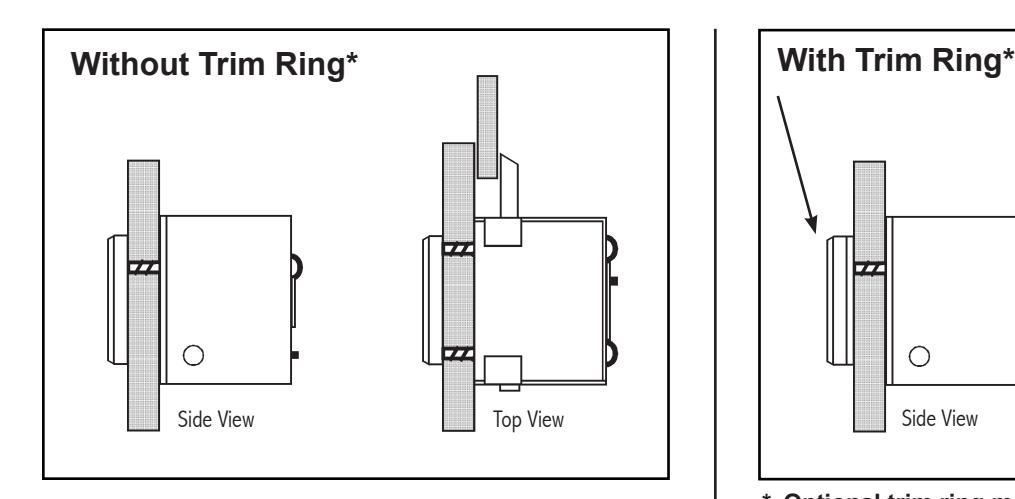

* Optional trim ring may be required for thin gauge metal doors when used with 7-pin SFIC cylinders
|
Title
Installation instructions for 728MBL series mail box lock |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date | |||||
| 728MBL | n/a | Spring Latch | Surface | 07/2017 | |||||

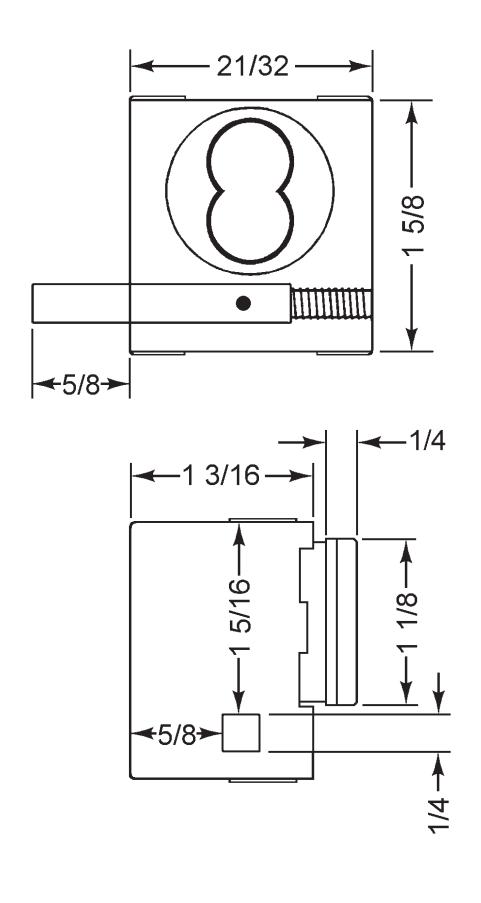

728MBL
For metal mail boxes

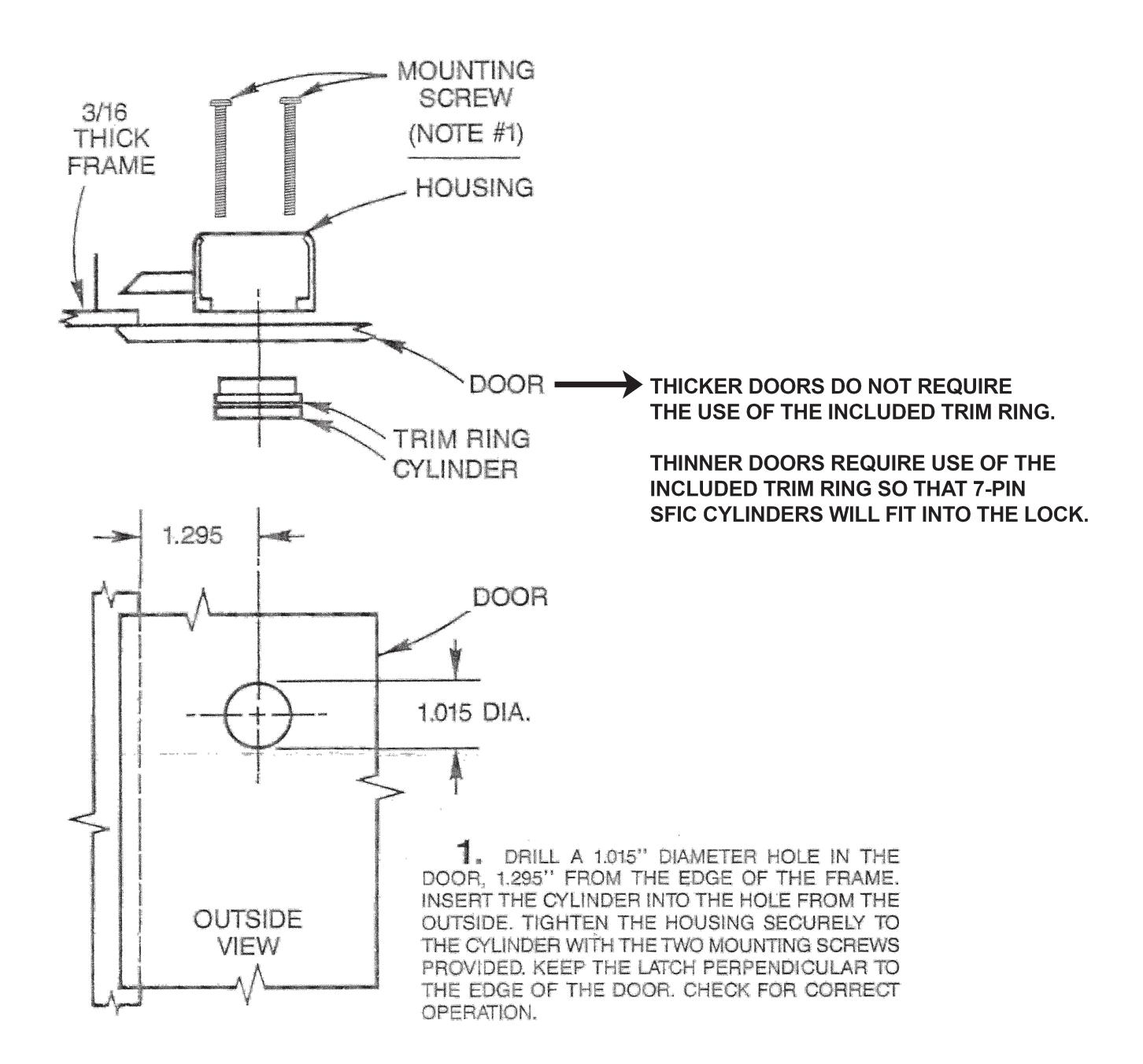

NOTE: Actual installation will vary depending upon the specific mailbox manufacturer and dimensions of the metal enclosure and door.
| Title | Installation instructions for 728MBL series mail box lock | ||||
|---|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date | |
| 728MBL | n/a | Spring Latch | Surface | 07/2017 |
