725RSL

SFIC: Enclosure Lock for NEMA Metal Traffic Control Boxes

core cylinders

As installed on inside of metal cabinet door.

GENERAL SPECIFICATIONS

Retrofits: Best 5L7RD (with option code " SL "

square latch, spring loaded) Function: Square latch, spring loaded Mounting: Rim (surface) mounted Handing: Available for doors or drawers

Cylinder housing: Solid brass Barrel diameter: 1-1/8" Cylinder length: 1-1/16"

Finish: US26D (satin chrome) or US4 (satin brass).

KEYING INFORMATION

Cores: Not included

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders.

INCLUDED ACCESSORIES

725-1 spacer to fit 6 or 7 pin cores 725-SP-RL solid lipped strike 725-PA plastic thumbturn

Spring loaded square bolt.

725RSL

Specialty function: Spring loaded square bolt. For standard deadbolt function, see 725RD or 725MD Series locks.

ALTERNATE HANDINGS

725RSL-RH

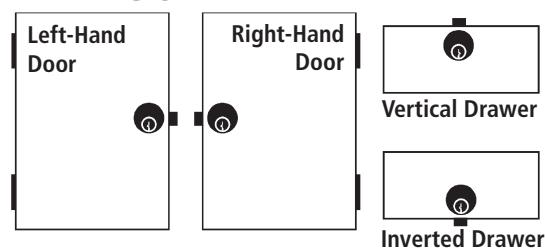

HANDING CHART

INCLUDED ACCESSORIES

725RSL

SFIC: Enclosure Lock for NEMA Metal Traffic Control Boxes

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

206/207 Series

• 206 Series 6-pin SFIC cylinder
• 207 Series 7-pin SFIC cylinder

AVAILABLE KEYWAYS A B C D E F G H J K L M Q 1C 1D KMT300

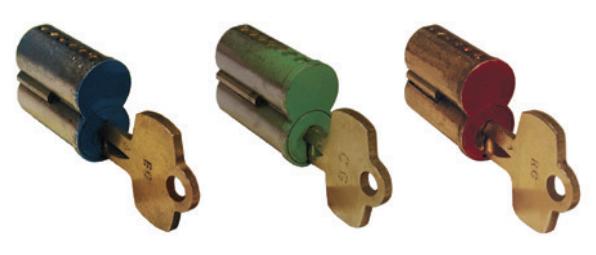

207 Series (BL/GR/RD)

• 207 Series 7-pin A keyway SFIC cylinders available in BLUE, GREEN or RED.

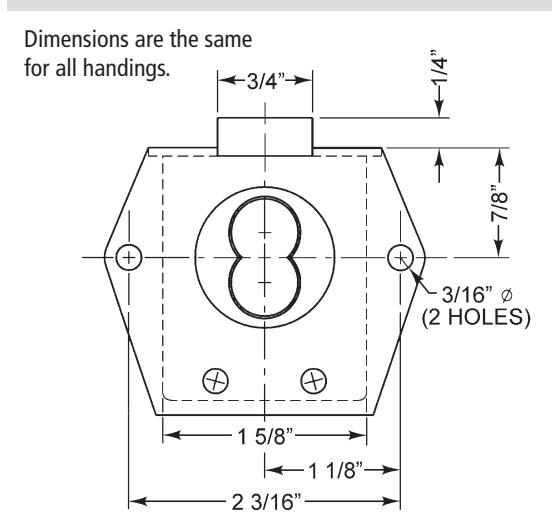

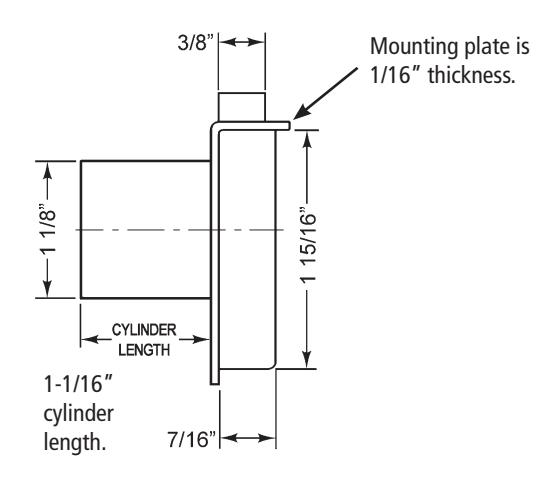

DIMENSIONS

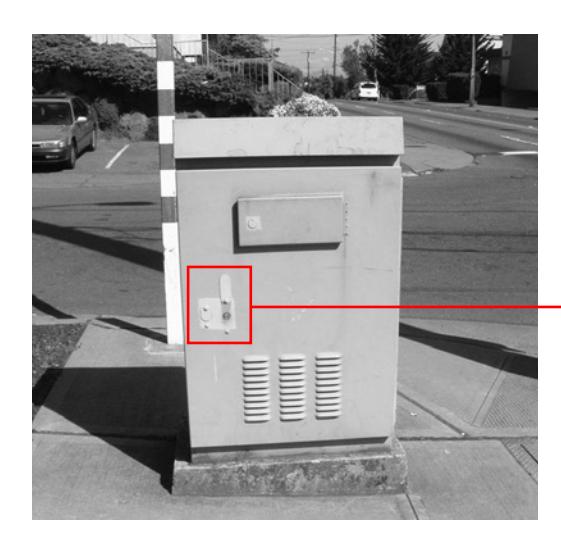

TYPICAL INSTALLATION

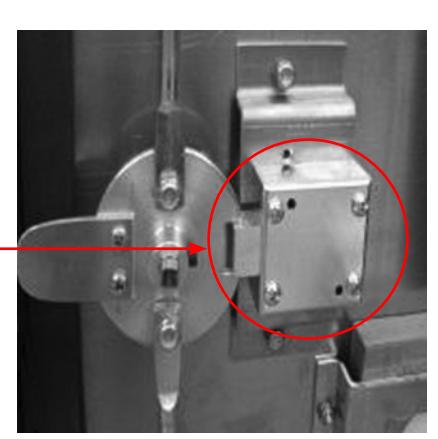

As installed on inside of metal cabinet door.
