725RL

SFIC: Rim Latch Door & Drawer Cabinet Lock

ANSI/BHMA Grade 1

GENERAL SPECIFICATIONS

Retrofits: Best 5L7RL

Function: Rim (surface) mounted latch Handing: Available for doors or drawers

Reverse latch: This option is available for vertical

or inverted function

Testing: Passed ANSI/BHMA A156.11 Grade 1

performance requirements. Barrel diameter: 1-1/8"

Cylinder length: 1-1/16" or 1-3/8"

Finish: US26 (polished chrome), US26D (satin chrome), US4 (satin brass), US3 (polished brass) or US10B (oil rubbed bronze). 1-3/8" barrel length

locks available in US26D finish only.

KEYING INFORMATION

Cores: Not included

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen

XT or VIDEX CyberLock SFIC cylinders.

INCLUDED ACCESSORIES

725-1 spacer to fit 6 or 7 pin cores 725-SP-RL solid lipped strike 725-PA plastic thumbturn

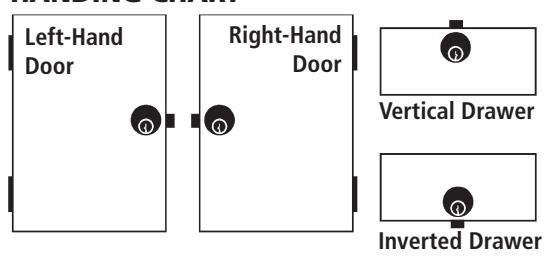

HANDING CHART

725RL-DW-VH-26D drawer vertical

725RL

Function: Deadbolt cabinet door or

drawer lock

Reverse latch (optional): Available for drawer vertical or drawer inverted function (use is for in-swinging doors)

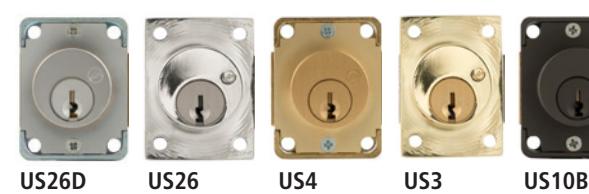

AVAILABLE FINISHES

HANDING

INCLUDED ACCESSORIES

ANSI/BHMA Grade 1 725RL

SFIC: Rim Latch Door & Drawer Cabinet Lock

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

Internal Plastic Spacers

• WP725 1/8" thick plastic spacers
• WP726 1/4" thick plastic spacers

Strikes

• Plastic bar strikes: 10-054, 10-055, 10-057, 10-058. Metal strikes: 10-056 12-1, 12-2, 12- 3, 12-4, 725-SP

Trim Ring

• TR78 trim ring

206/207 Series

• 206 Series 6-pin SFIC cylinder
• 207 Series 7-pin SFIC cylinder

interchangeable core cylinders

AVAILABLE KEYWAYS

•	207 Series 7-pin SFIC cylinder
BEST		A	B	C	D	E	F	G	H
BEST compatible		J	K	L	M	Q	1C	1D	KMT300

725RL Typical Installation

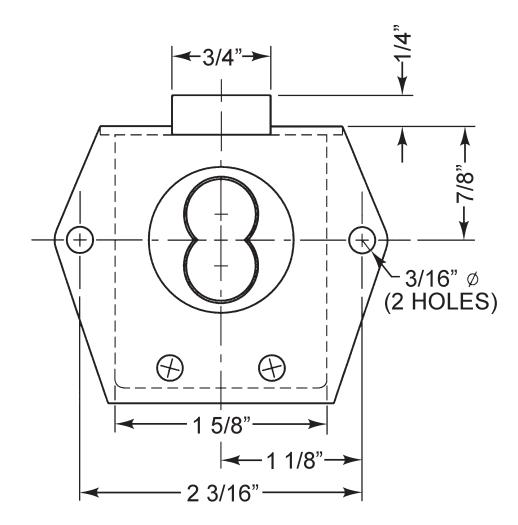

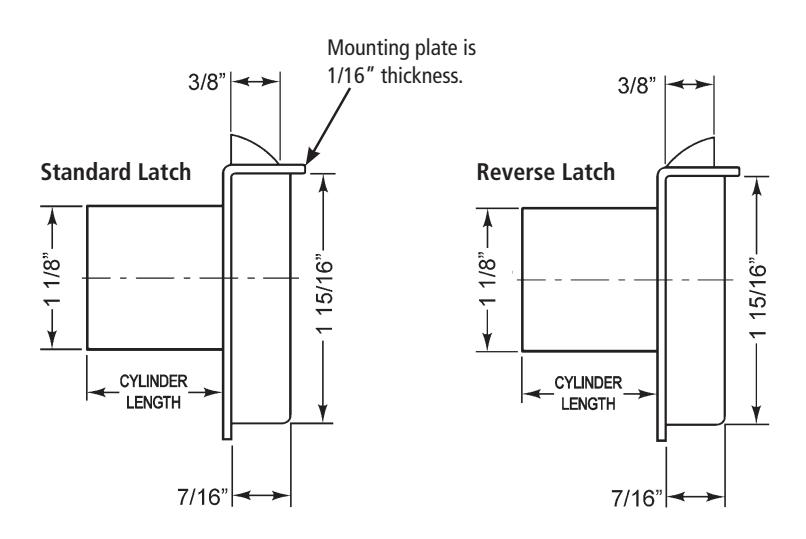

DIMENSIONS | TYPICAL INSTALLATION

Dimensions are the same for all handings.

1-1/16" or 1-3/8" cylinder length. 1-3/8" cylinder length is available in US26D finish only.
