725ML

SFIC: Mortise Latch Door & Drawer Cabinet Lock

ANSI/BHMA Grade 1

GENERAL SPECIFICATIONS

Retrofits: Best 5L7ML

Function: Mortise mounted latch Handing: Available for doors or drawers

Reverse latch: This option is available for vertical

or inverted function.

Testing: Passed ANSI/BHMA A156.11 Grade 1

performance requirements. Barrel diameter: 1-1/8"

Cylinder length: 1-1/16" or 1-3/8"

Finish: US26 (polished chrome), US26D (satin chrome), US4 (satin brass), US3 (polished brass) or US10B (oil rubbed bronze). 1-3/8" barrel length

locks available in US26D finish only.

KEYING INFORMATION

Cores: Not included

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen

XT or VIDEX CyberLock SFIC cylinders.

INCLUDED ACCESSORIES

725-1 spacer to fit 6 or 7 pin cores 725-SP-ML slotted lipped strike 725-PA plastic thumbturn

725ML-DW-VH drawer vertical

725ML

Function: Cabinet door or drawer latch

lock

Reverse latch (optional): Available for drawer vertical or drawer inverted function (use is for in-swinging doors)

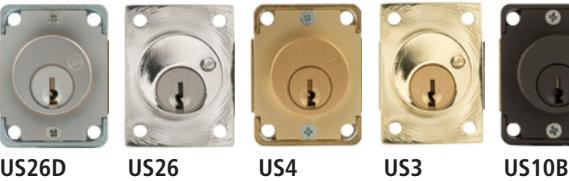

AVAILABLE FINISHES

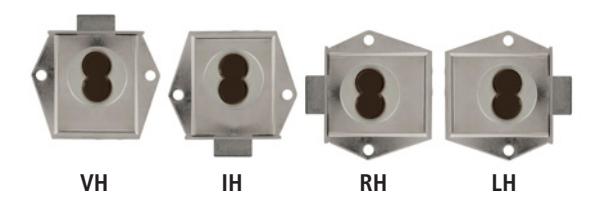

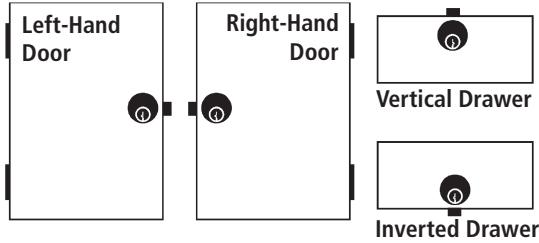

HANDING CHART

HANDING

INCLUDED ACCESSORIES

ANSI/BHMA Grade 1 725ML

SFIC: Mortise Latch Door & Drawer Cabinet Lock

OPTIONAL ACCESSORIES

Internal Plastic Spacers

• WP725 1/8" thick plastic spacers
• WP726 1/4" thick plastic spacers

Strikes

• Plastic bar strikes: 10-054, 10-055, 10-057, 10-058. Metal strikes: 10-056 12-1, 12-2, 12- 3, 12-4, 725-SP

Trim Ring

• TR78 trim ring

206/207 Series

• 206 Series 6-pin SFIC cylinder
• 207 Series 7-pin SFIC cylinder

AVAILABLE KEYWAYS

A	B	C	D	E	F	G	H
J	K	L	M	Q	1C	1D	KMT300

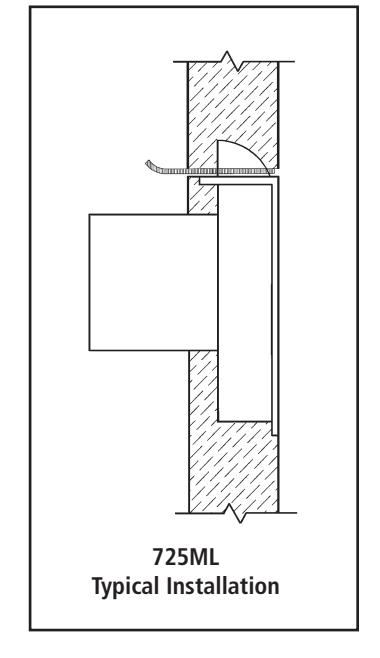

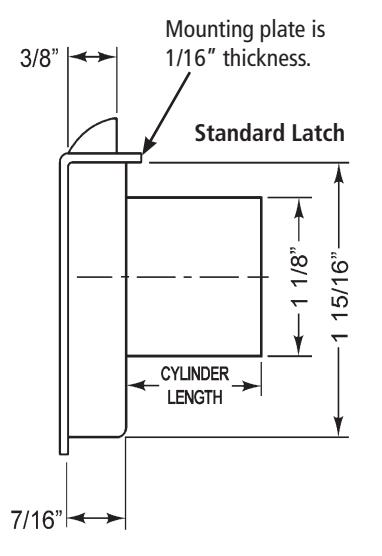

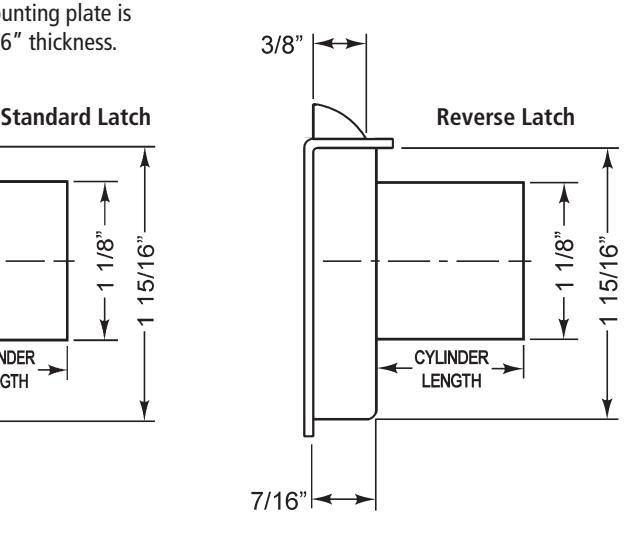

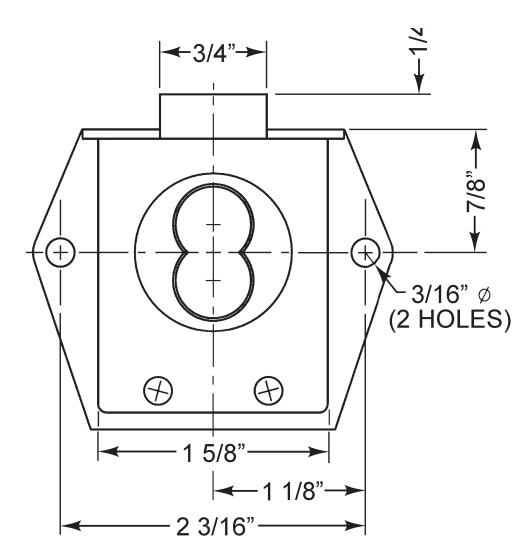

DIMENSIONS | TYPICAL INSTALLATION

Dimensions are the same for all handings.

1-1/16" or 1-3/8" cylinder length. 1-3/8" cylinder length is available in US26D finish only.
