725MD

SFIC: Mortise Deadbolt Door & Drawer Cabinet Lock

BEST compatible interchangeable core cylinders BEST

ANSI/BHMA Grade 1

SPECIFICATIONS

Retrofits: Best 5L7MD

Function: Mortise mounted deadbolt Handing: Available for doors or drawers Testing: Passed ANSI/BHMA A156.11 Grade 1

performance requirements. Barrel diameter: 1-1/8"

Cylinder length: 1-1/16" or 1-3/8"

Finish: US26 (polished chrome), US26D (satin chrome), US4 (satin brass), US3 (polished brass) or US10B (oil rubbed bronze). 1-3/8" barrel length locks available in US26D finish only.

KEYING INFORMATION

Cores: Not included

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders.

INCLUDED ACCESSORIES

725-1 spacer to fit 6 or 7 pin cores 725-SP-MD slotted rectangular strike 725-PA plastic thumbturn

725MD-DW-VH-26D drawer vertical

725MD

Function: Deadbolt cabinet door or

drawer lock

Standard function: Key removable in locked or unlocked position. Standard

locks are non-handed.

Key-retaining function: Key removable in locked position only. Key retaining function available for drawer vertical

configuration only.

AVAILABLE FINISHES

US26D US26 US4 US3 US10B

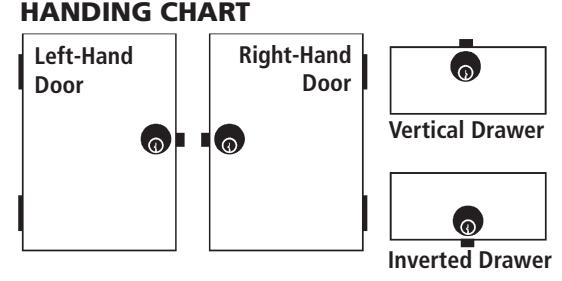

HANDING

INCLUDED ACCESSORIES

ANSI/BHMA Grade 1 725MD

SFIC: Mortise Deadbolt Door & Drawer Cabinet Lock

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

Internal Plastic Spacers

• WP725 1/8" thick plastic spacers
• WP726 1/4" thick plastic spacers

Strikes

• Plastic bar strikes: 10-054, 10-055, 10-057, 10-058. Metal strikes: 10-056 12-1, 12-2, 12- 3, 12-4, 725-SP

Trim Ring

• TR78 trim ring

206/207 Series

• 206 Series 6-pin SFIC cylinder
• 207 Series 7-pin SFIC cylinder

interchangeable core cylinders

AVAILABLE KEYWAYS

•	207 Series 7-pin SFIC cylinder
BEST		A	B	C	D	E	F	G	H
BEST compatible		J	K	L	M	Q	1C	1D		KMT300

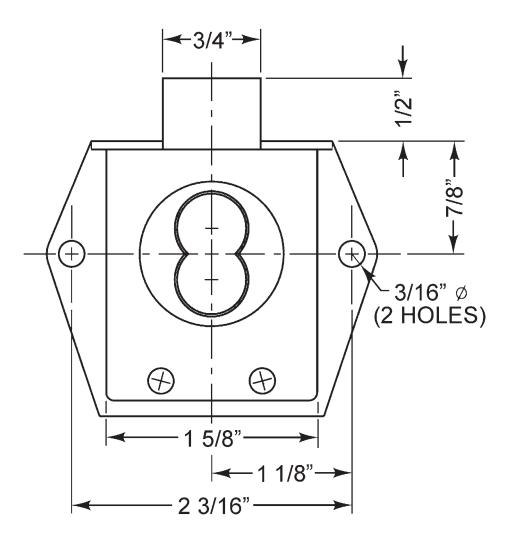

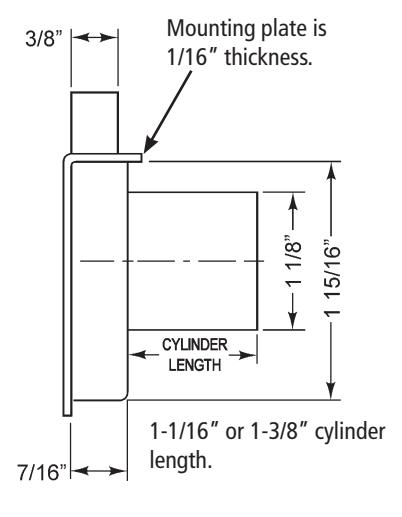

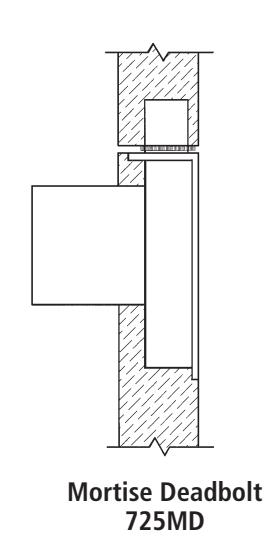

DIMENSIONS | TYPICAL INSTALLATION

Dimensions are the same for all handings.
