725 Series

SFIC: Door & Drawer Cabinet Locks

ANSI/BHMA Grade 1

GENERAL SPECIFICATIONS

Retrofits: Best 5L Series

Function: Mortise or rim (surface) mounted

deadbolt and latch locks

Handing: Available for doors or drawers Testing: Passed ANSI/BHMA A156.11 Grade 1

performance requirements. Barrel diameter: 1-1/8"

Cylinder length: 1-1/16" or 1-3/8"

Finish: US26 (polished chrome), US26D (satin chrome), US4 (satin brass), US3 (polished brass) or US10B (oil rubbed bronze). 1-3/8" barrel length locks available in US26D finish only.

KEYING INFORMATION

Cores: Not included

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders.

ALTERNATE FUNCTIONS

Key-retaining function: Key removable in locked position only. Key retaining function available for drawer vertical only.

Reverse latch: Available for drawer vertical or drawer inverted function (use is for in-swinging doors)

INCLUDED ACCESSORIES

725-1 spacer to fit 6 or 7 pin cores 725-SP series matching strikes 725-PA plastic thumbturn

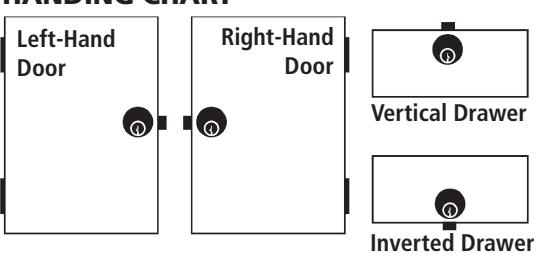

HANDING CHART

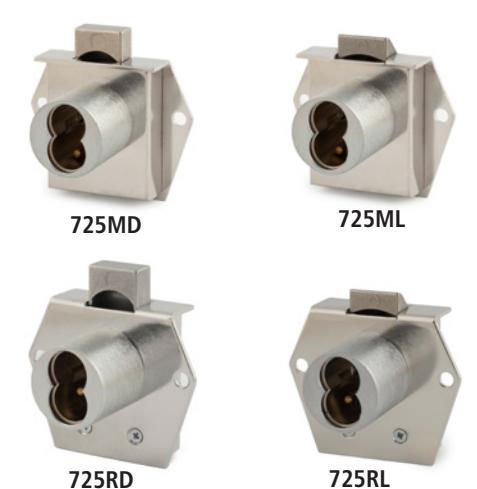

725 Functions

MD/ML Function: Mortise mount deadbolt or latch cabinet door or drawer locks

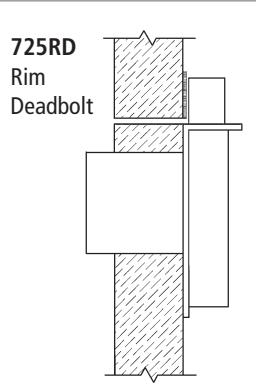

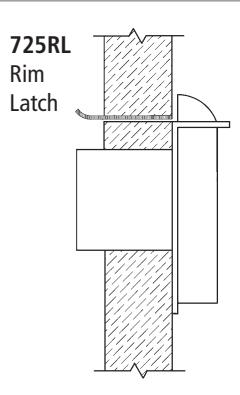

RD/RL Function: Rim (surface) mount deadbolt or latch cabinet door or drawer locks

AVAILABLE FINISHES

US4

US3

US10B

INCLUDED ACCESSORIES

725-1

725-SP-RD for 725RD locks

725-SP-RL for 725RL locks

for 725ML locks

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

ANSI/BHMA Grade 1 725 Series

SFIC: Door & Drawer Cabinet Lock

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

Internal Plastic Spacers

• WP725 1/8" thick plastic spacers
• WP726 1/4" thick plastic spacers Strikes
• Plastic bar strikes: 10-054, 10-055, 10-057, 10-058. Metal strikes: 10-056 12-1, 12-2, 12-3, 12-4, 725-SP

Trim Ring

• TR78 trim ring

206/207 Series

• 206 Series 6-pin SFIC cylinder
• 207 Series 7-pin SFIC cylinder

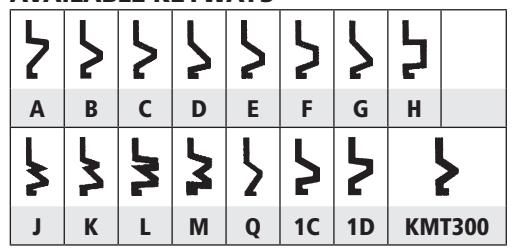

AVAILABLE KEYWAYS

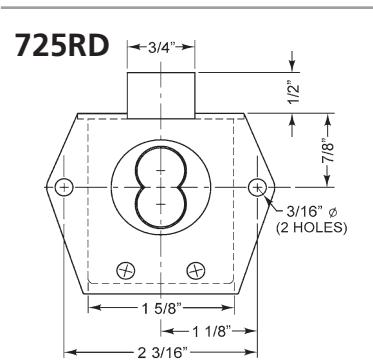

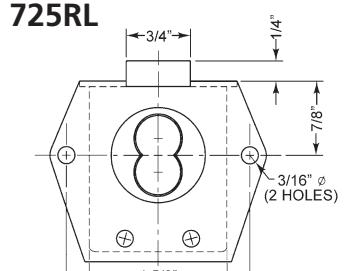

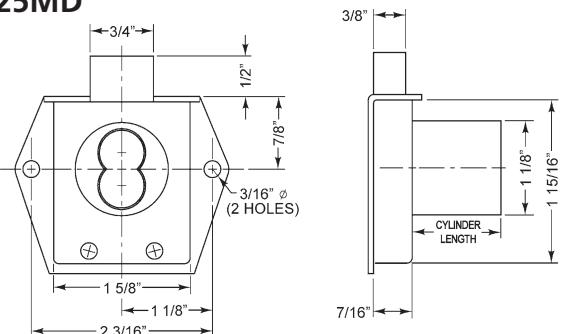

DIMENSIONS

Dimensions are the same for all handings.
