PRODUCT DATA SHEET

723S

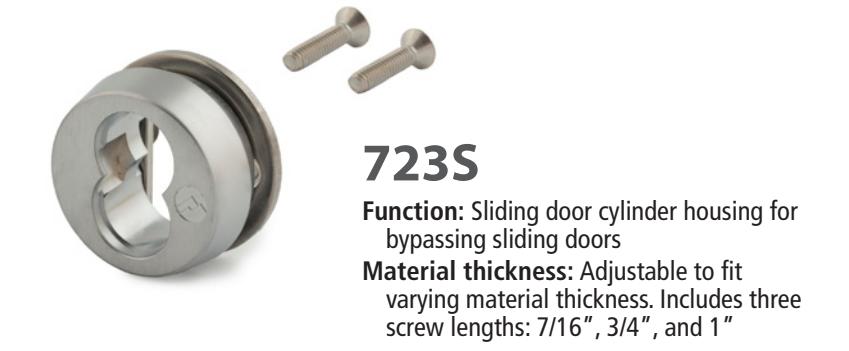

SFIC: Sliding Door Cylinder Housing

BEST compatible interchangeable core cylinders

SPECIFICATIONS

Retrofits: Best 4S

Function: For use on bypassing sliding doors. Core acts as stop for interior sliding door.

Material: Zinc die cast Finish: 26D or US26

INCLUDED ACCESSORIES

Screws: Includes 3 sizes of screws (7/16", 3/4" and 1") to adapt lock for use on varying material thicknesses

KEYING INFORMATION

Core: Not included, requires special core Accepts: Best (6C or 6CP), Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores

OPTIONAL ACCESSORIES

SFIC cores: 207S Series

723S

SFIC: Sliding Door Cylinder Housing

OPTIONAL ACCESSORIES

207S Series Cores for use with 723S

• 207S Series 7-pin SFIC cylinder

AVAILABLE KEYWAYS
A	B	C	D	E	F	G	H
J	K	L	M	Q	1C	1D	KMT300

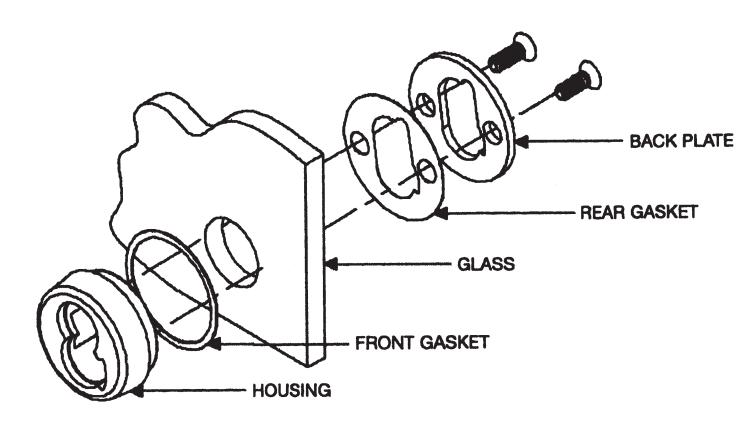

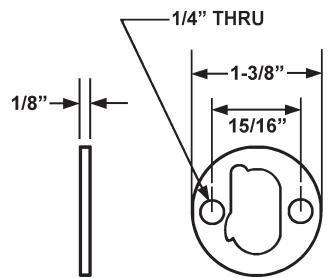

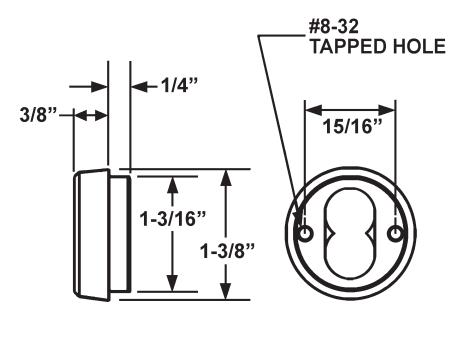

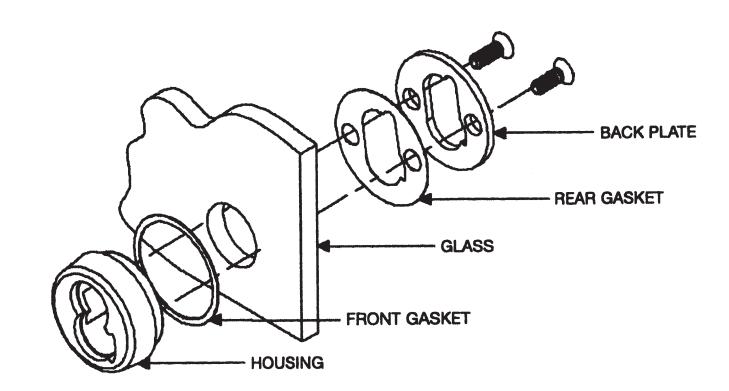

DIMENSIONS | TYPICAL INSTALLATION

Note: Lock can be adjusted for use on different material thicknesses by using an "O" ring or changing the screw length. The 723S ships standard with 3 screw sizes (7/16", 3/4" and 1").
