Olympus Lock – 722 Series -Sliding Door Plunger Lock Data Sheet

Open the original PDF document

View PDF

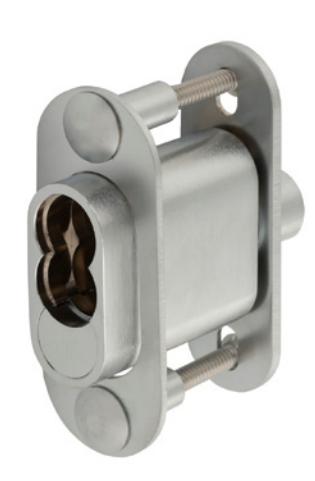

722S | 722S-TBM

SFIC: Sliding Door Plunger Lock

core cylinders

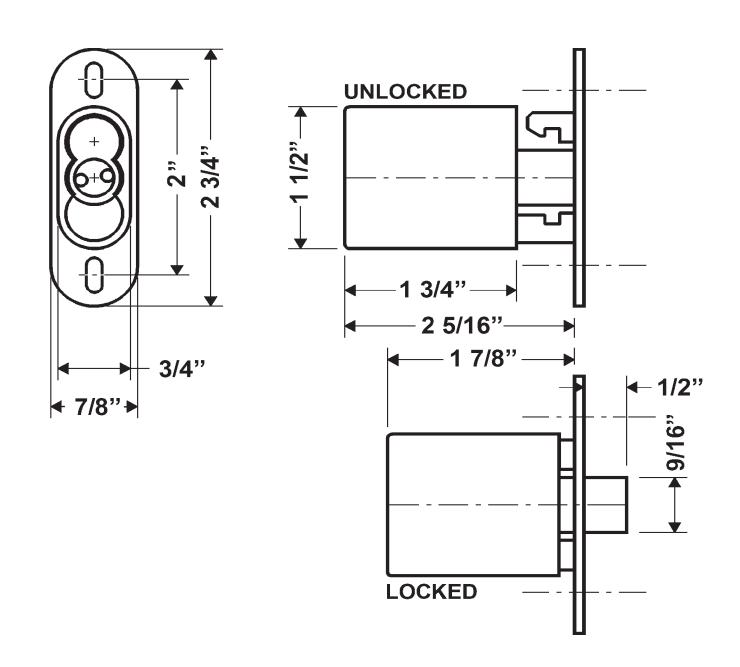

SPECIFICATIONS

Retrofits: Best 2S, 2S-TBM

Standard function: Key removable in locked and

unlocked position.

Key-retaining function: Key removable in locked position only. Specify -KR for key-retaining.

TBM function: Specify TBM for "through-bolt

mounting" Body: Solid brass Barrel length: 1-3/4" Bolt throw: 1/2"

Max. door thickness: 1-7/8" Min. door thickness (TBM): 5/8"

Finish: 26D

Packaged: Packed 10 per box

KEYING INFORMATION

Cores: Not included

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders

INCLUDED ACCESSORIES

725-1 spacer to fit 6 or 7 pin cores Matching strike 725-PA plastic thumbturn TBM locks include through-bolt plates and screws

OPTIONAL ACCESSORIES

SFIC cores: 206/207 Series

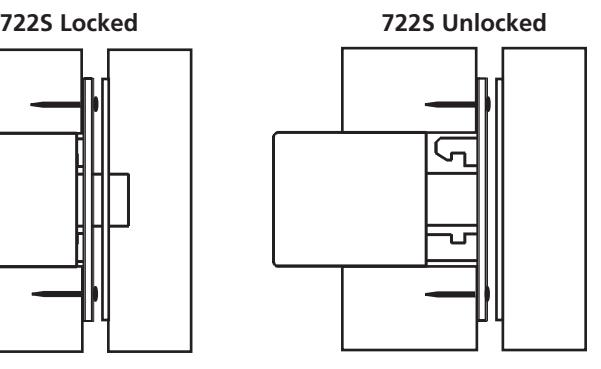

722S

Function: Sliding door plunger lock for

bypassing sliding doors

Material: Fits up to 1-3/4" material Standard function: Key removable in locked or unlocked position. Standard

locks are non-handed.

Key-retaining function: Key removable in locked position only. Specify -KR for

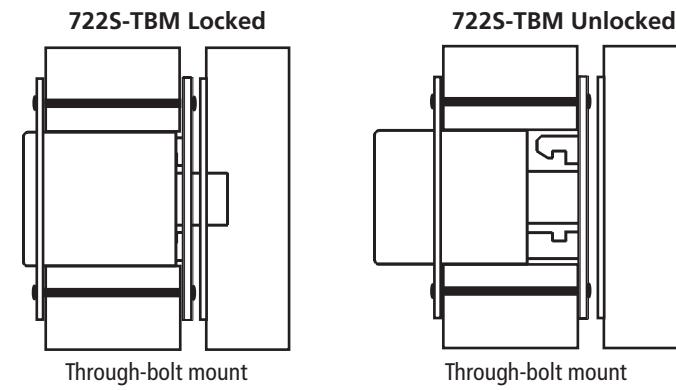

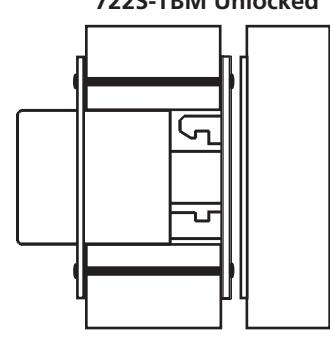

722S-TBM

Function: Sliding door plunger lock for bypassing sliding doors. Includes with through-bolt mounting hardware. Material: Fits up to 1-3/4" material Standard function: Key removable in

locked or unlocked position. Standard locks are non-handed.

Key-retaining function: Key removable in locked position only. Specify -KR for key-retaining.
