Olympus Lock – 721 Series – Door and Drawer Deadbolt Locks Data Sheet

Open the original PDF document

View PDF

721DR | 721DW

SFIC: Deadbolt Door & Drawer Cabinet Locks

interchangeable core cylinders

ANSI/BHMA Grade 1 E07121 | E07041

Woodwork Institute (WI) acknowledged product

SPECIFICATIONS

Retrofits: Best 3L

Reversible: Field reversible between door and drawer

functions

Long bolt: Extends bolt 3/4" on both ends. Specify -LB

option when ordering.

Testing: Passed ANSI/BHMA A156.11 Grade 1

performance requirements.

US Patent Nos: 4,899,563; 4,920,774

Body: Zinc die cast Barrel diameter: 1-1/8"

Cylinder length: 1-1/4" or 1-3/8"

Finish : US26D (satin chrome), US4 (satin brass) or US10B (oil rubbed bronze), US19 (flat black). 1-3/8" barrel length locks available in US26D finish only.

KEYING INFORMATION

Cores: Not included

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores

Compatible electronic cylinders: Medeco Nexgen XT or

VIDEX CyberLock SFIC cylinders.

INCLUDED ACCESSORIES

For 1-1/4"barrel length locks:

725-1 spacer to fit 6 or 7 pin cores

725-PA plastic thumbturn

10-350 (qty 3) plastic spacers

10-054 1/4" plastic bar strike

10-057 .65" plastic bar strike

For 1-3/8"barrel length locks:

725-1 spacer to fit 6 or 7 pin cores 725-PA plastic thumbturn

10-054 1/4" plastic bar strike

OPTIONAL ACCESSORIES

Extended (long) bolt: 721-1-LB (for use with 721DR or 721DW)

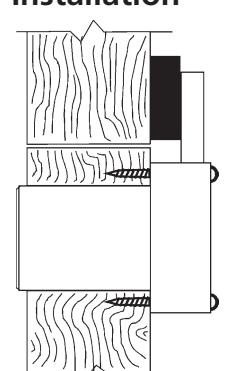

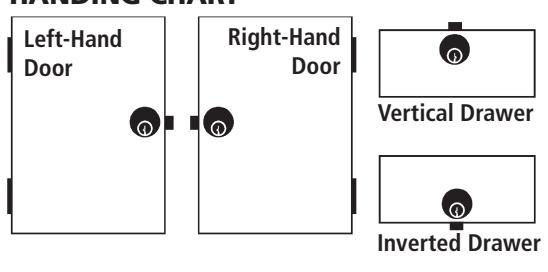

HANDING CHART

ANSI/BHMA No. E07121

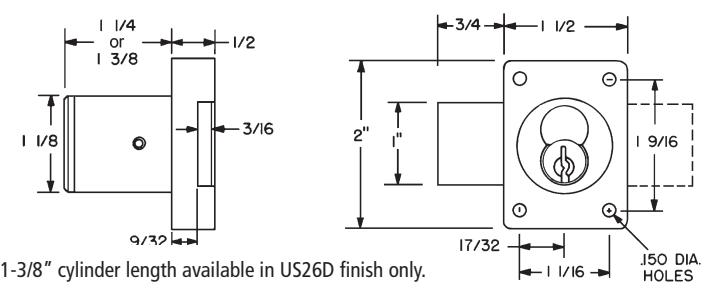

721DR

Function: Cabinet door lock

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed.

Key-retaining function: Key removable in locked position only. Specify -KR for key-retaining.

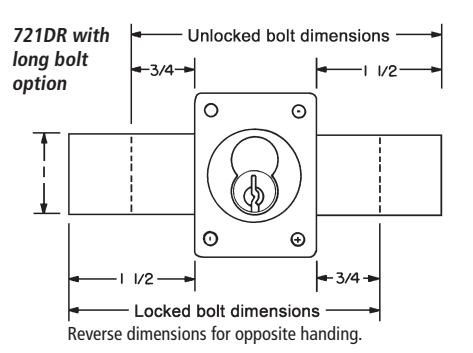

Long bolt

ANSI/BHMA No. E07041

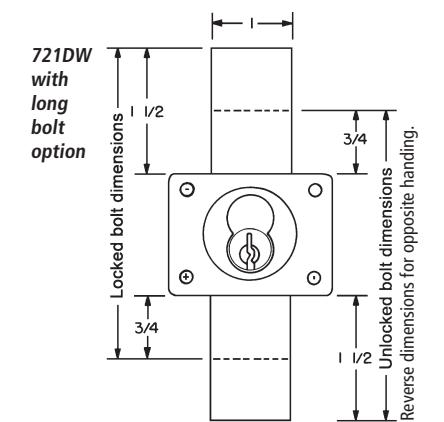

721DW

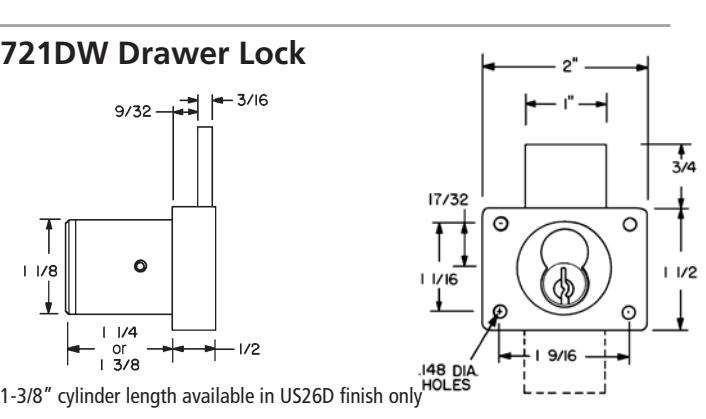

Function: Drawer lock

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed.

Key-retaining function: Key removable in locked position only. Specify -KR for key-retaining.

AVAILABLE FINISHES

US26D US26 US4 US3 US10B US19

INCLUDED ACCESSORIES

10-350 internal spacers 1/4"plastic bar strike For a flush fit on varying material thicknesses

10-054 bar strike

10-057 strike .65" plastic bar strike

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

ANSI/BHMA Grade 1 721DR | 721DW E07121 | E07041

SFIC: Deadbolt Door & Drawer Cabinet Locks

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

Internal Plastic Spacers

10-350 1/8" thick plastic spacers
10-348 1/4" thick plastic spacers
10-349 1/2" thick plastic spacers

Strikes

• Plastic bar strikes: 10-054, 10-055, 10-057, 10-058. Metal strikes: 10-056 12-1, 12-2, 12-3, 12-4

Trim Ring

• TR78 trim ring

206/207 Series

206 Series 6-pin SFIC cylinder
207 Series 7-pin SFIC cylinder

interchangeable core cylinders

AVAILABLE KEYWAYS

• 207 Series 7-pin SFIC cylinder
BEST	A	B	C	D	E	F	G	H

BEST compatible interchangeable	J	K	L	M	Q	1C	1D	KMT300

Through-Bolt Mounting Plate

External metal 1/8" or 1/4" through-bolt plate allows for secure and attractive flush mounting of the cabinet lock face. Available in US3 or US26D finish.
