720LM/DM

SFIC: Cam Lock For Small Format Interchangeable Core

For BEST style interchangeable core cylinders

ANSI/BHMA Grade 1 E07261 | E07271

Woodwork Institute (WI) acknowledged product

GENERAL SPECIFICATIONS

Function: Cam lock Retrofits: Best 1E7E4

ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to E07261/

E07271.

Cylinder diameter: 1-1/8"

Across flats: 7/8"

Max. material thickness: 1-1/8" Min. material thickness: 0.08"

Functions: Includes parts for key-retaining or

non-key-retaining function.

Cam installation: See our website for cam

assembly instructions. Body: Zinc die cast

Finish: 26D, US26, US3 or US4 Packaged: Packed 10 per box

KEYING INFORMATION

Cores: Not included.

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen

XT or VIDEX CyberLock SFIC cylinders

INCLUDES

725-PA plastic thumbturn 720-PL3 stabilizer plate 725-1 spacer to fit 6 or 7 pin cores 720-3-1 short inverted cam 720-3-2 long vertical cam 720-CDLM lost motion cam shifter 720-CDDM key retaining door cam shifter 720-KR key retaining drawer cam shifter

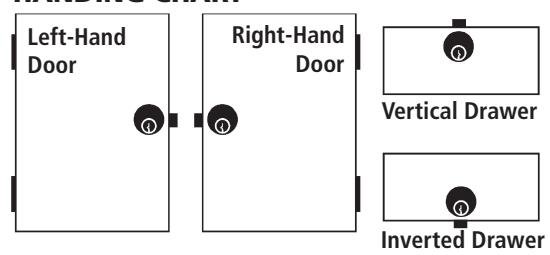

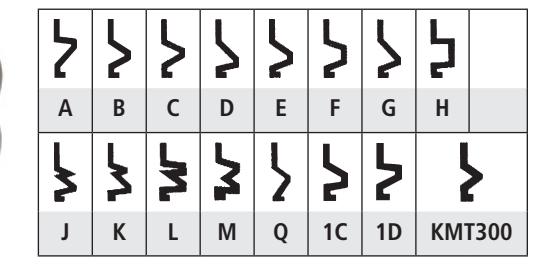

HANDING CHART

US26D finish included

Anti-rotation plate

AVAILABLE FINISHES

US26D US26 US4 US3

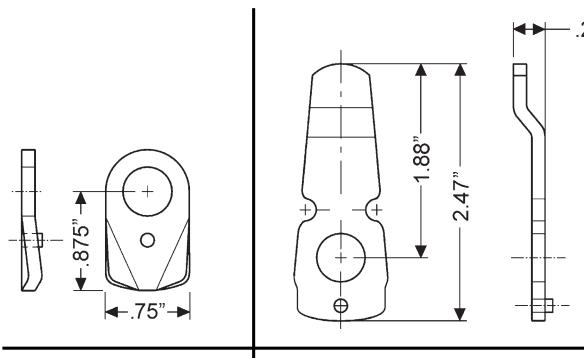

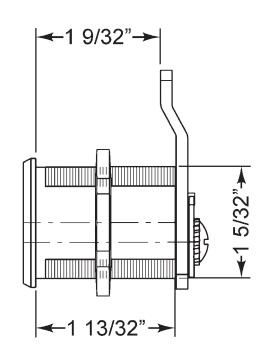

INCLUDED CAMS

720-3-1 for inverted function

720-3-2 inbent cam for vertical function (bottom-pin style)
