720B-DM

SFIC: Solid Brass Cam Lock Direct Drive for Small Format Interchangeable Core

core cylinders

SPECIFICATIONS

Retrofits: Best 1E7D4

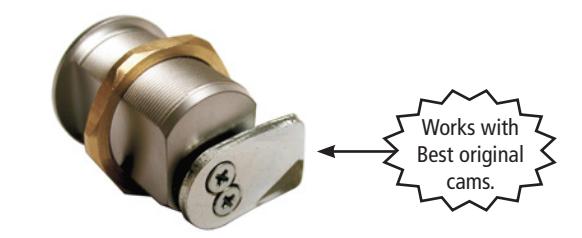

Cams: Will work with Best original cams

Cylinder diameter: 1-1/8"

Across flats: 7/8"

Max. material thickness: 1-1/8" Min. material thickness: 0.08"

Functions: Direct drive screw on cam mechanism

Body: Machined solid brass

Finish: US26D

Packaged: Packed 10 per box

KEYING INFORMATION

Cores: Not included.

Accepts: Best, Arrow, Falcon, KSP, Schlage SFIC or equivalent small format interchangeable cores Compatible electronic cylinders: Medeco Nexgen XT or VIDEX CyberLock SFIC cylinders

INCLUDES

725-PA plastic thumbturn 720-3-D1 short direct drive cam TR201 spacer collar, 1/8" TR202 spacer collar, 1/4" 725-1 spacer for 6 pin cores

720B-DM

Function: Cam lock, direct drive screw on cam

mechanism

Material: Sold brass machined body Cam installation: See our website for cam

assembly instructions.

TR202 1/4"

720B-DM

SFIC: Solid Brass Cam Lock Direct Drive for Small Format Interchangeable Core

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

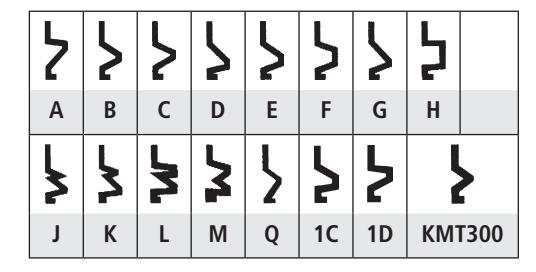

Optional Cams

720-3-SC1 switch cam

CL-MP-118 Double-D Metal Punch

Hole size: Punches a DOUBLE "D" hole size approximately 7/8" wide by 1-1/8" high.

TR200 Series Trim Collars

TR204 5/32"

206/207 Series SFIC Cylinders

Best compatible 6 and 7 pin small format interchangeable core cylinders

For BEST style interchangeable core cylinders

DIMENSIONS

MOUNTING CUTOUT
