Olympus Lock 720 820 920 CR25 SA54 ME93 YA93 Cam Assembly Instructions

For 720, 820, 920 Series

1-1/8" diameter cam locks

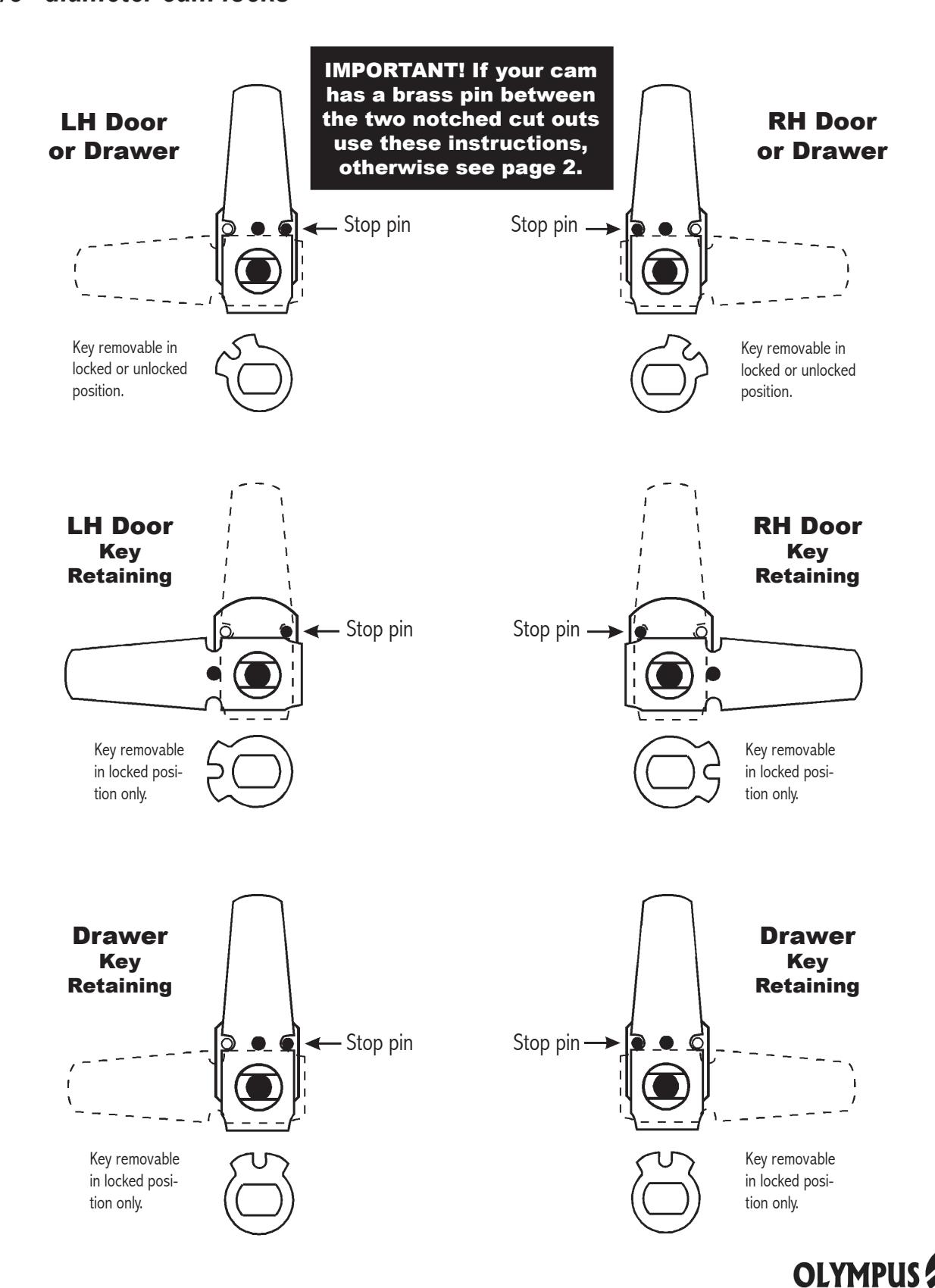

Assembled with vertical long cam 720-3-2 or extra long 3" cam 720-3-4

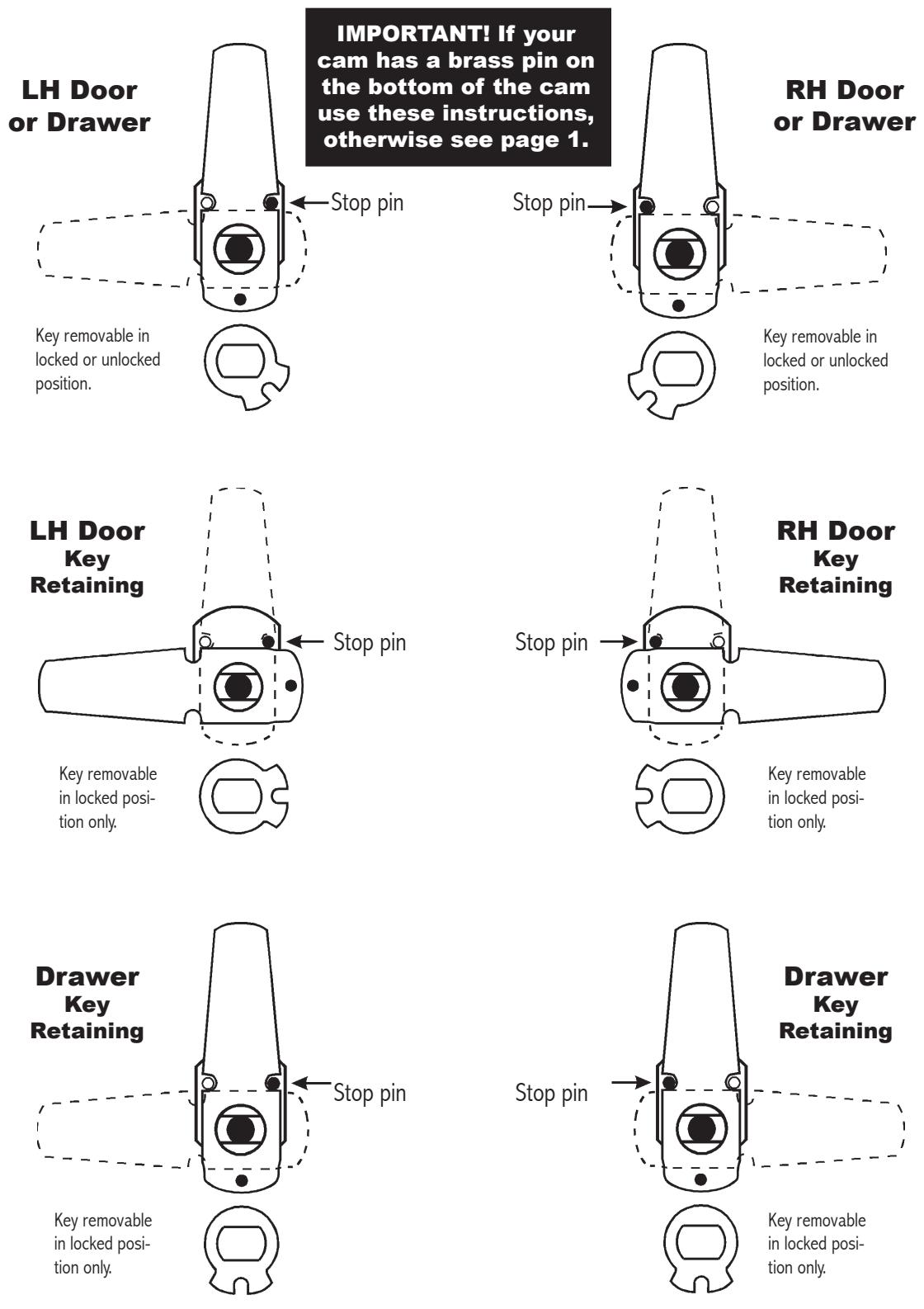

Assembled with vertical long cam For 720, 820, 920 Series 720-3-2 or extra long 3" cam 720-3-4

1-1/8" diameter cam locks

For 720, 820, 920 Series

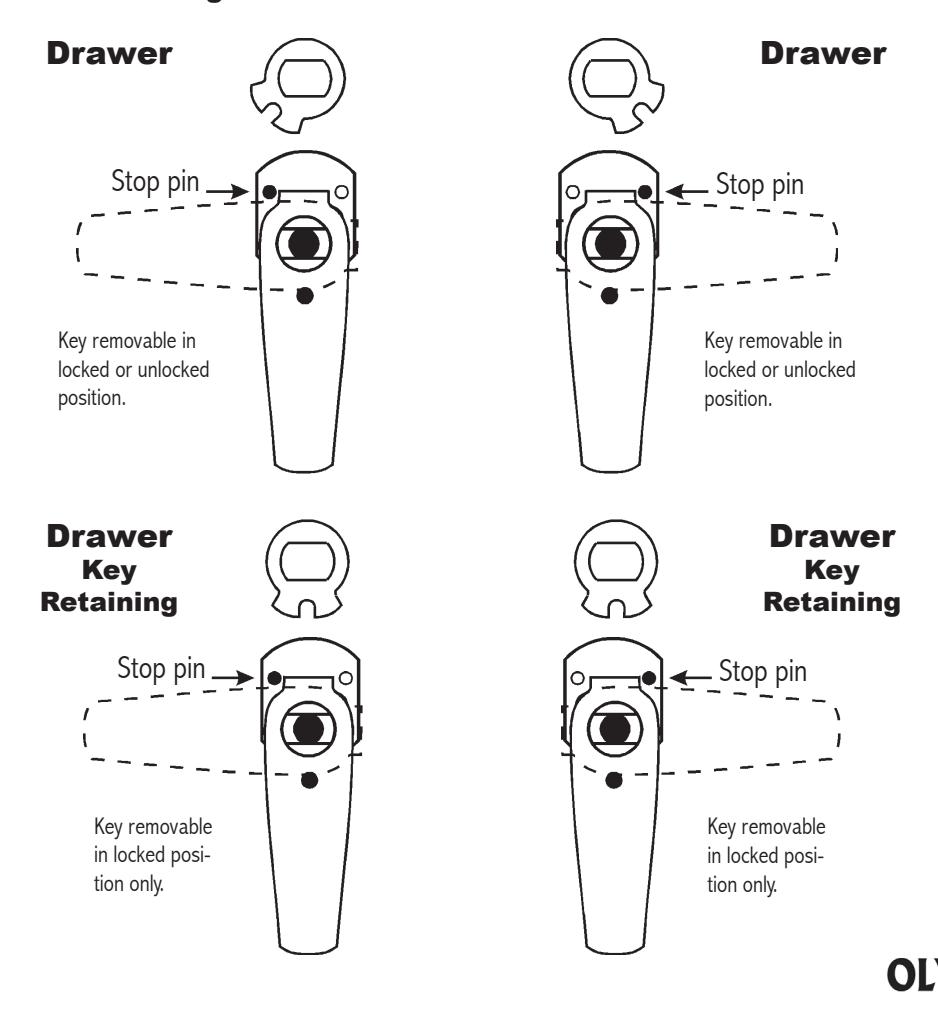

Assembled with short cam 720-3-1

1-1/8" diameter cam locks

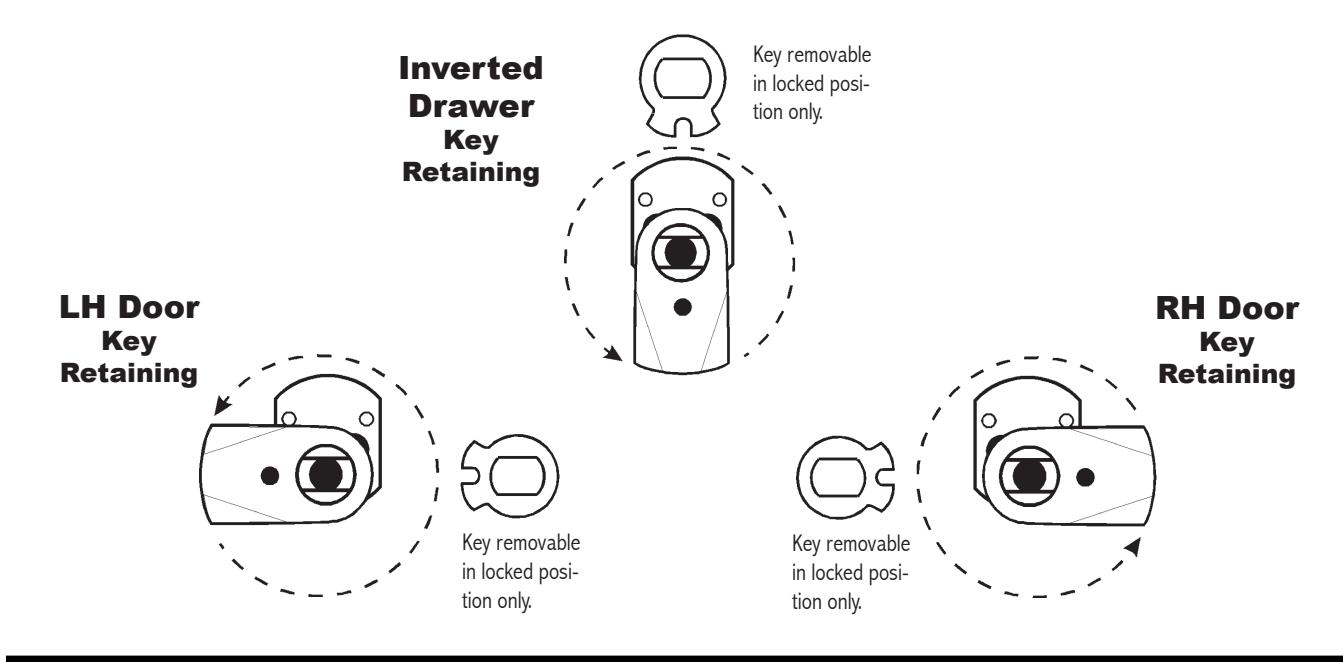

Assembled with inverted long cam 720-3-3 or 720-3-5
