700S | 800S

S Series: Schlage C Keyway Deadbolt Door & Drawer Cabinet Locks

ANSI/BHMA Grade 1 E07121 | E07041

Woodwork Institute (WI) acknowledged product

SPECIFICATIONS

Keying: Can be keyed together with other Schlage C Keyway locks

Rekeyable: Easily rekeyable via set screw cylinder

release mechanism ANSI/BHMA: Passed ANSI/BHMA A156.11 Grade 1 performance requirements. Equivalent to

E07121 (700S) / E07041 (800S). US Patent Nos: 4,899,563; 4,920,774

Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.

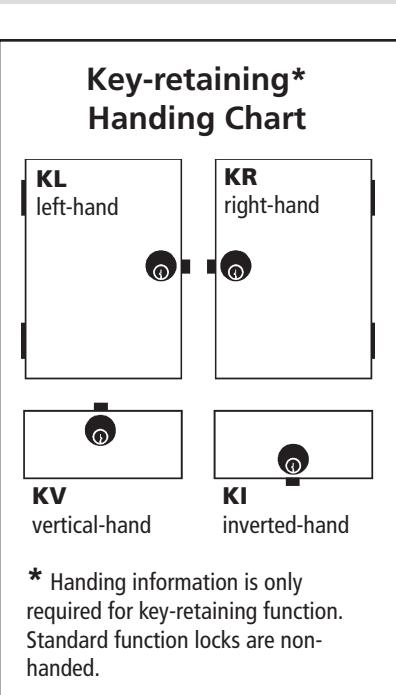

Key-retaining: Key removable in locked position only. Specify handing (KL/KR for doors or KI/KV for drawers) when ordering.

Body: Zinc die cast

Cylinder: Will accept other manufacturer's Schlage

compatible key-in-knob cylinders Cylinder length: 1-1/8" or 1-3/8" Barrel diameter: 1-1/8"

Finish: 26D, US3, 10B Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: Schlage C keyway Keys: Includes 2 keys per lock Cylinder: Solid brass, pin tumbler Stock keying: KD/KA - 5 pin standard

Stock KA#: 101, 102, O-Bit

Masterkeying: 5 pin standard, 6-pin available

Grand masterkeying: Available Keyblank 5-pin: KBSC-5 Keyblank 6-pin: KBSC-6

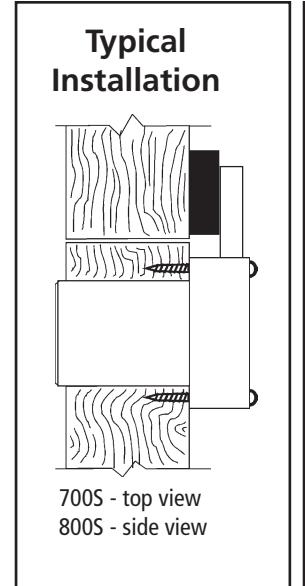

INCLUDED ACCESSORIES

For 1-1/8"barrel length locks:

10-350 plastic spacers (qty 2) 10-054 1/4" plastic bar strike

10-055 1/2" plastic bar strike

For 1-3/8"barrel length locks: 10-054 1/4" plastic bar strike

OPTIONAL ACCESSORIES

Spacers: 10-348 (1/4" thick), 10-349 (1/2" thick), 10-350 (1/8" thick)

Strikes: 10-052, 10-056, 10-057, 10-058, 12-2, 12-3,

12-4

Trim collar: TR78

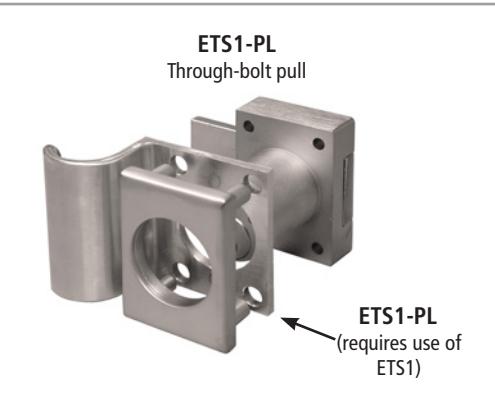

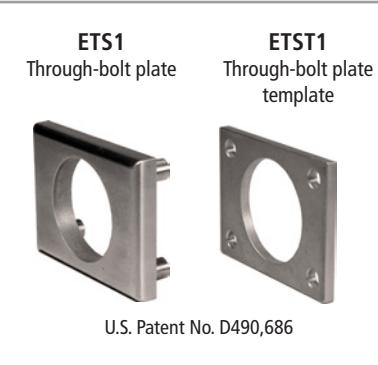

Through-bolt hardware: ETS1 through-bolt plate,

ETS1-PL trim pull and ETST1 template

700S

Function: Cabinet door lock ANSI/BHMA No.: E07121

US26D finish US3 finish US10B finish

800S

Function: Drawer lock ANSI/BHMA No.: E07041

US26D finish

US3 finish US10B finish

INCLUDED ACCESSORIES

10-350 internal spacers For a flush fit on varying material thicknesses

10-054 bar strike 1/4" plastic bar strike

10-055 bar strike 1/2" plastic bar strike

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

ANSI/BHMA Grade 1 700S | 800S E07121 | E07041

S Series: Schlage C Keyway Deadbolt Door & Drawer Cabinet Locks

OPTIONAL ACCESSORIES - See our website for a complete list of optional components.

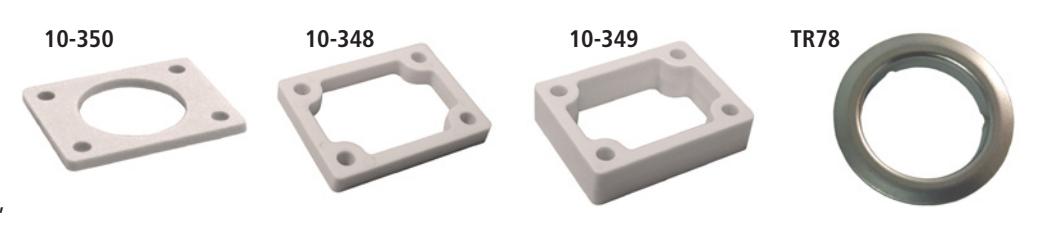

Internal Plastic Spacers

• 10-350 1/8" thick plastic spacers
• 10-348 1/4" thick plastic spacers
• 10-349 1/2" thick plastic spacers

Strikes

• Plastic bar strikes: 10-054, 10-055, 10-057, 10-058. Metal strikes: 10-052, 10-056 12-1, 12-2, 12-3, 12-4

Trim Ring

• TR78 trim ring

Through-Bolt Mounting Plate

External metal 1/8" or 1/4" through-bolt plate allows for secure and attractive flush mounting of the cabinet lock face. Available in US3 or US26D finish.

• ETS1-125 through-bolt plate, 1/8" thick
• ETS1-250 through-bolt plate, 1/4" thick

Through-Bolt Mounting Plate Template

Allows for proper mounting hole placement of throughbolt plate. Can be used as a 1/8" shim spacer. Available in US3 and US26D finish.

• ETST2 through-bolt plate template

DIMENSIONS

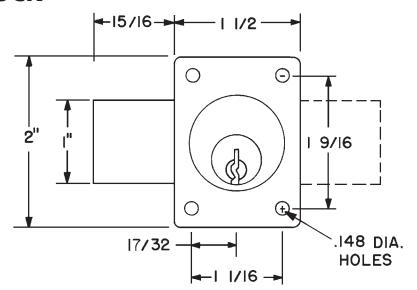

700S Cabinet Door Lock

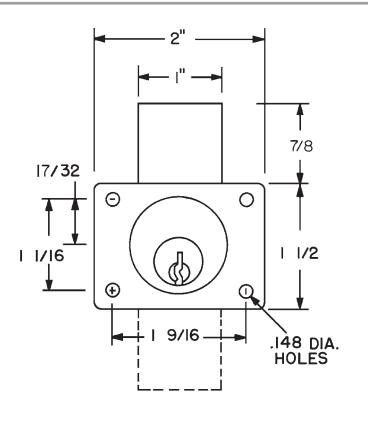

800S Drawer Lock
