500DR | 600DW

R Series: Deadbolt Door & Drawer Cabinet Locks

ANSI/BHMA Grade 1 E07121 | E07041

Woodwork Institute (WI) acknowledged product

SPECIFICATIONS

Keying: Can be keyed together with other R Series locks

Rekeyable: Easily rekeyable via set screw cylinder release mechanism

ANSI/BHMA: Passed ANSI/BHMA A156.11

Grade 1 performance requirements. Equivalent to E07121(500DR) / E07041(600DW).

Non-magnetic: See our 500M/600M Series MRI locks. Standard function: Key removable in locked or unlocked position. Standard function locks are non-handed.

Key-retaining: Key removable in locked position only. Specify handing (KL/KR for doors or KI/KV for drawers) when ordering.

Long bolt: Extends bolt 3/4" on both ends. Specify -LB

option when ordering.

US Patent Nos: 4,899,563; 4,920,774

Body: Zinc die cast

Cylinder: Solid brass, pin tumbler Cylinder length: 15/16" or 1-3/8"

Barrel diameter: 7/8" Finish: 26D, US4 or 10B*

*US10B not available on 500DR 1-3/8"

Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: R Series (equivalent to CCL R1 system)

Keys: Includes 2 keys per lock Stock keying: KD/KA - 5 pin standard Stock KA#: 4T21579, 4T37526

Masterkeyed: 5 pin standard, 6 pin available

Grand masterkeyed: Available Keyblank 5-pin: KBR-5-NP (equivalent to CO106, 1003A)

Keyblank 5-pin copper plated: KBR-5B (use with M Series MRI locks)

Keyblank 6-pin: KBR-6-NP (equivalent to L1003A)

INCLUDED ACCESSORIES

500DR: 2 keys, 56-1 bar strike, and lock mounting screws. 600DW : 2 keys, 12-3 angle strike, and lock mounting screws.

OPTIONAL ACCESSORIES

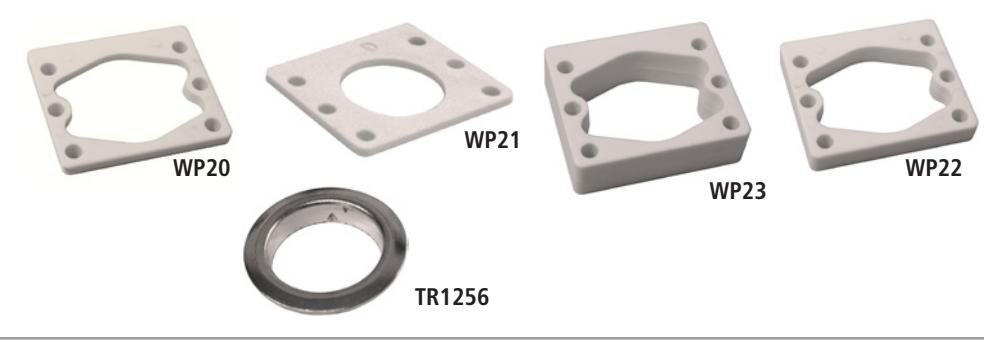

Spacers: WP20 (3/16" thick), WP21 (3/32" thick), WP22

(1/4" thick), WP23 (1/2" thick) Strikes: 07S, 12-1, 12-2, 12-3, 12-5, 12-4, 56-1

Trip collar: TR1256

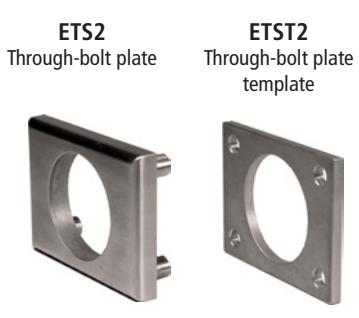

Through-bolt hardware: ETS2 through-bolt plate, ETS2-

PL trim pull and ETST2 template

Extended (long) bolt: 15-1-35 (for use with 500DR or

600DW)

500DR

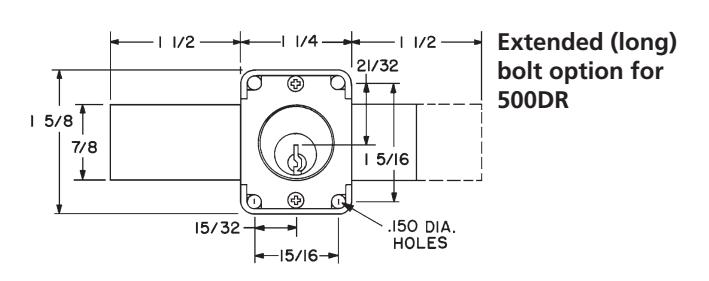

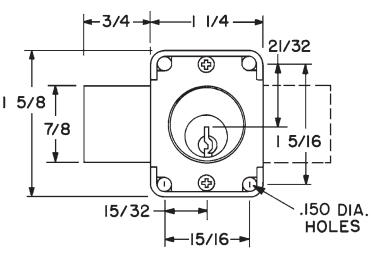

Function: Cabinet door lock ANSI/BHMA No. E07121 Barrel length: 15/16" or 1-3/8"

Extended bolt: Extends overall bolt length by 1-1/2". Specify -LB option at time of order.

With long-bolt option

600DW

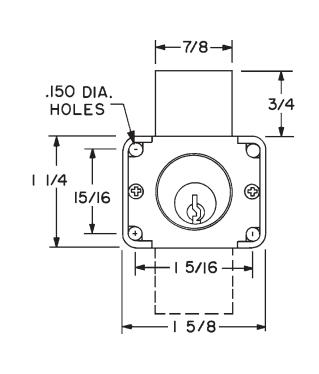

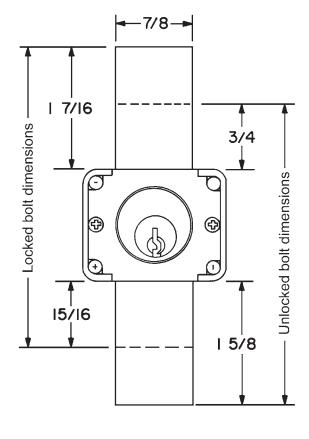

Function: Drawer lock ANSI/BHMA No. E07041 Barrel length: 15/16" or 1-3/8"

Extended bolt: Specify -LB option at time of

order.

With long-bolt option

AVAILABLE FINISHES

US26D US4 US10B
