400SD

R Series: Sliding Door Plunger Lock

SPECIFICATIONS

Keying: Can be keyed together with other R Series locks

Rekeyable: Easily rekeyable via speed-release

cylinder release mechanism

US Patent Nos: 4,920,774; 5,121,619

Standard function: Key removable in locked or

unlocked position. Body: Zinc die cast

Cylinder: Solid brass, pin tumbler

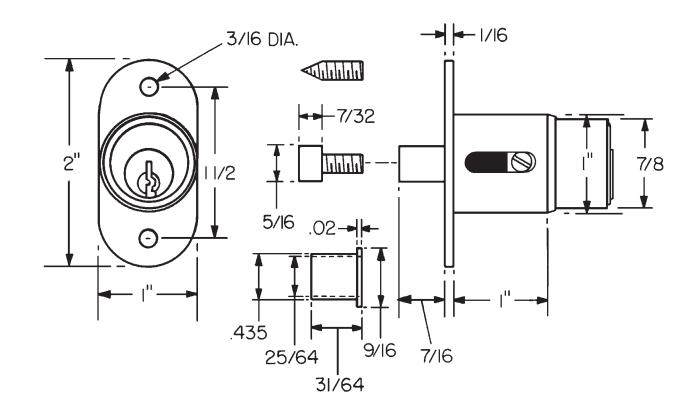

Cylinder length: 1" Barrel diameter: 1" Finish: 26D, US3 or 10B Packaged: Packed 10 per box

KEYING INFORMATION

Keyway: R Series (equivalent to CCL R1 system)

Keys: Includes 2 keys per lock

Stock keying: KD/KA - 5 pin standard Stock KA#: 4T21579, 4T37526

Masterkeyed: 5 pin standard Grand masterkeyed: Available Keyblank 5-pin: KBR-5-NP (equivalent to CO106, 1003A)

INCLUDED ACCESSORIES

34-9 matching thimble strike 10-24 machine thread bolt extender for varying gaps between bypassing doors 10-24 machine thread strike locator

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

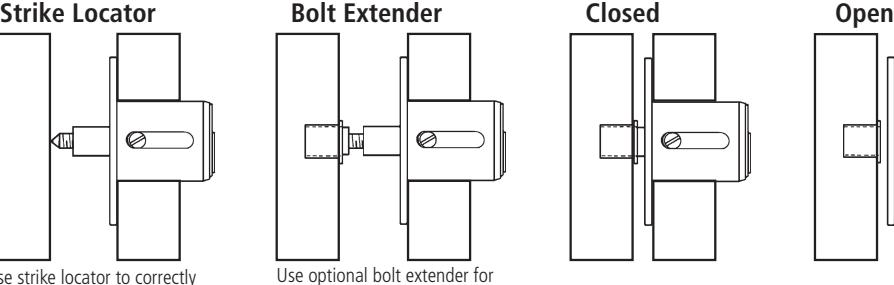

Use strike locator to correctly mark location to install strike.

AVAILABLE FINISHES

US26D US3 US10B
