OS-12C T MINIATURE PHOTO ELECTRIC
SAFETY BEAM
EASY-TO-INSTALL AMPLIFIER UNIT AND SENSOR HEADS

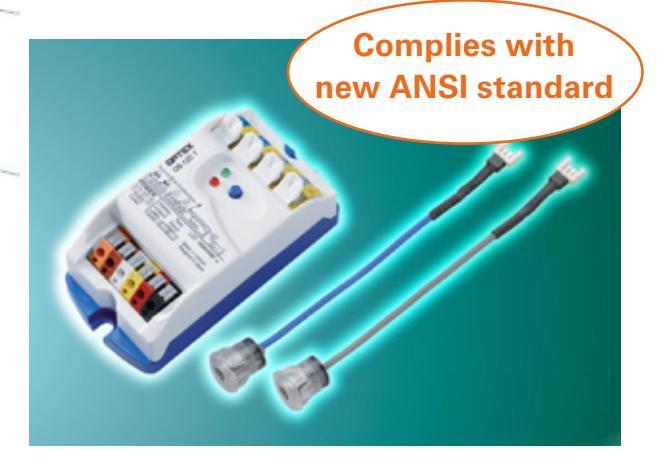

The Optex 0S-12C T amplifier has screwless wiring terminals, which realizes quick installation. Pressing the "Teach-In" button automatically sets the proper sensitivity and self-corrects crossed cables. One amplifier operates one or two pairs of sensor heads.
MONITORING CAPABILITY
OS-12C T has built-in "monitoring capability". OS-12C T monitors all its critical functions and notifies compatible controls when an error occurs.
Self-monitoring capability ensures a higher level of performance over the life of the sensor.
International Door Closers, Inc.
COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com
SINGLE BEAMS TYPE: UP TO 32' 10"
The Optex OS-12C T active infrared safety beam system is compatible with any type of automatic door. Its amplifier and sensor heads are designed for fast, simple installation while maintaining the hightest standards of safety and reliability.

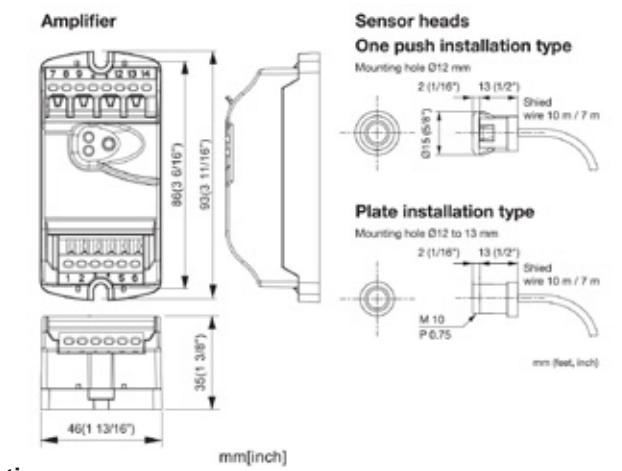

SPECIFICATIONS
| Model | OS-12CT |
|---|---|
| Installation distance | Less than 10 m (32' 10") |
| Detection method | Point to point near infrared light beam |
| Power supply | 12 to24 VAC/12 to30 VDC |
| Current draw | 160 mA Max. |
| Operating indicator |
BEAM1 / BEAM2
Stand-by: Green ON / Red ON Detection Active: Green OFF / Red OFF Insufficient sensitivity : Green Blink / Red Blink Test input error: Simultaneous twice Blinking(Red & Green) |
| Test input |
Opto coupler Voltage 5 to 30 V DC
Current 6 mA Max.(30 V DC |
|
Safety 0utput (lnitial
setting) |
50 V 0.3 A (resistance load) - N.O./N.C. Switchable |
| Response time | Approx. 0.1 sec. (from the moment of beam cut-off) |
| Relay hold time | Approx. 0.5 sec. |
| Operating temperature | -20 to +55°C (-4 to +131°F) |
| Weight | Amplifier 63 g (2.2 oz) |
| Component |
1 Amplifier, 2 Mounting screws, 1 Manual
(Sensor heads units are required for operation, sold separately) |

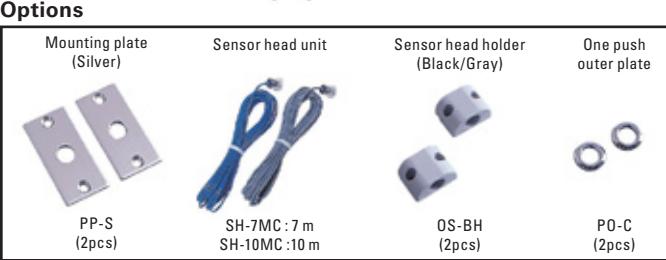

Note : OS-12C T amplifier can operate with 1 or 2 pairs of sensor heads. Note : The specifications herein are subject to change without prior notice due to improvements.
West: 800-544-4422 • East: 800-225-6737
