Offset Pivot Set

INSTALLATION INSTRUCTIONS

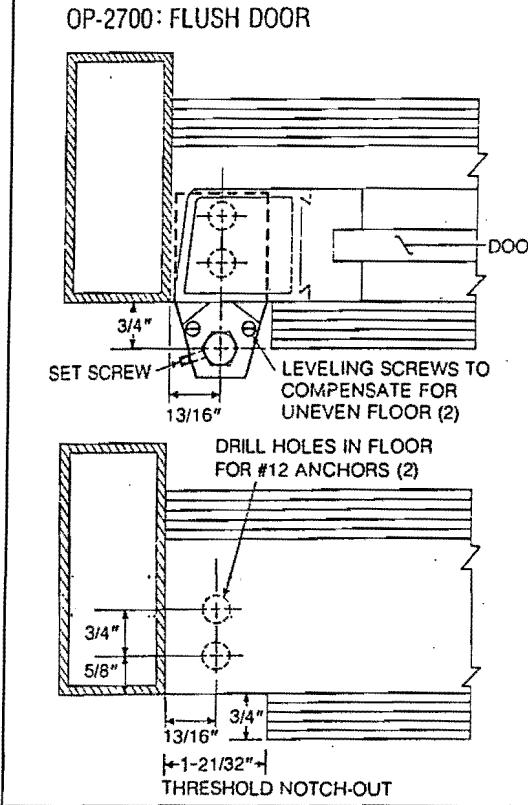

OP-2700: FLUSH DOOR

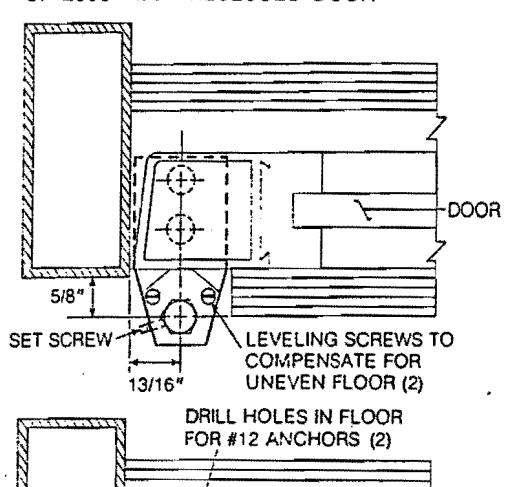

OP-2800: 1/8" RECESSED DOOR

  • 1. Drill or drill and countersink holes in door and frame as shown.

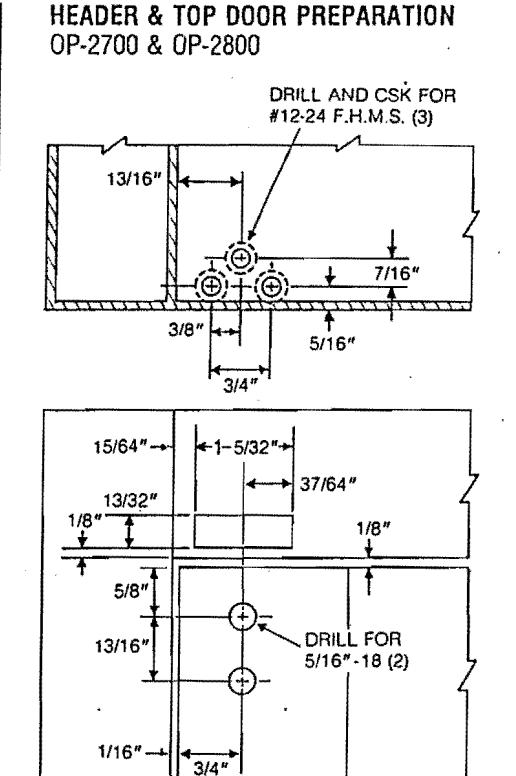

  • 2. Rout out header and notch threshold as shown.
  • 3. Install frame portion using (3) #12-24 X 3/4" flat head machine screws.
  • 4. Install top and bottom door portions securing each with (2) 5/16": 8 X 1/2" hex head cap screws with washers.
  • 5. Install floor portion using (2) #12 X 1-1/4" plastic expansion plugs and (2) #12 X 1-1/4" flat head all-purpose screws.
  • 6. To install door, place bottom door portion on stud of floor portion at a slight angle, depress pin in the top door portion and tilt door into opening until pin engages in frame portion,
  • 7. Adjust door for proper clearance by turning adjustable pivot stud (loosen set screw before adjusting and retighten after).

NOTE: Right hand door shown, left hand opposite.

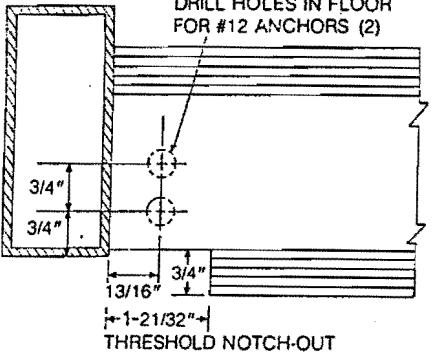

FLOOR & THRESHOLD PREPARATION

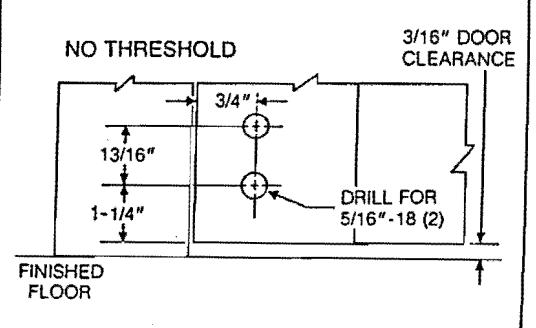

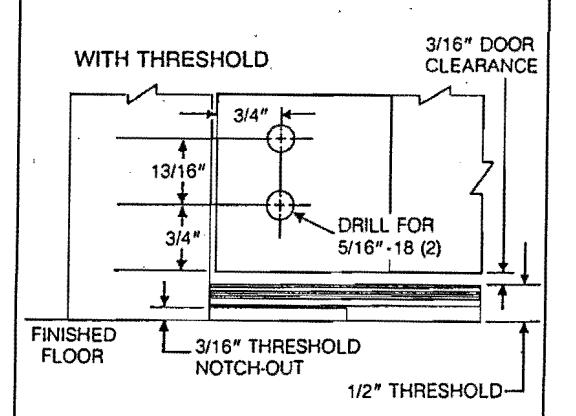

BOTTOM DOOR PREPARATION

OP-2700 & OP-2800
