Installation Instructions Slide Track Door Closers

CAUTION

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury.These instructions should be followed to avoid the possibility of misapplication or misadjustment.

ASSA ABLOY Non Hold Open Models 7700ST - 7500ST PS7700ST - PS7500ST

Hold Open Models* 7700ST-H - 7500ST-H PS7700ST-H - PS7500ST-H

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

• For closers with or without Delayed Action closing feature suffix "DA"
• Use of an auxiliary door stop is always recommended.

^* These units are not permitted to be installed in fire door assemblies.

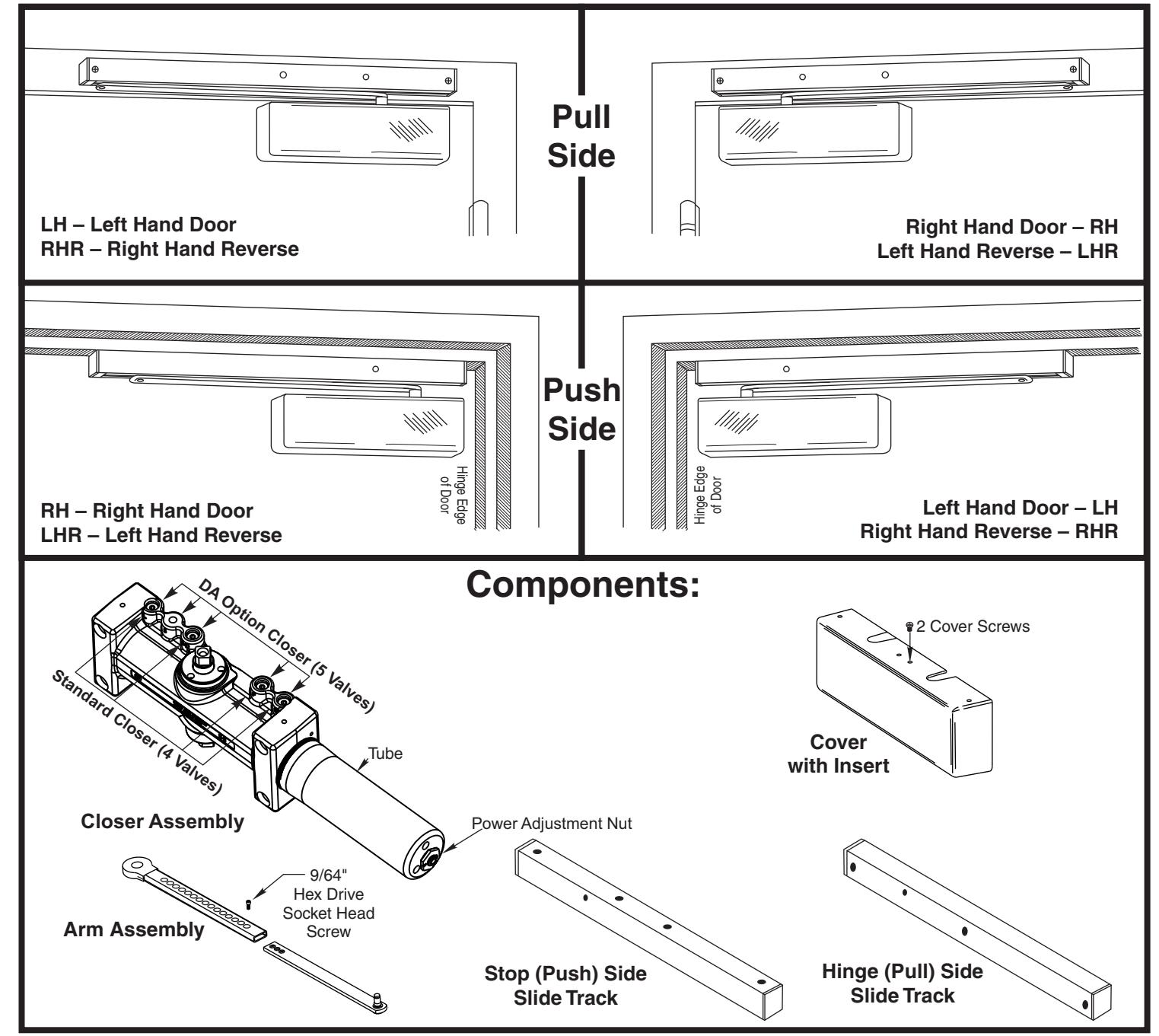

Pull Side Application

• IMPORTANT: From centerline of pivot point to end of track is 26-1/2" (673mm)
• Right hand door shown
• Do not scale drawing
• Dimensions are given in inches (mm)
• Min. ceiling clearance for unit is 2" (50mm) from frame rabbet

110° Max. – Non Hold Open with Spring Buffer

180° Max. – Non Hold Open without Spring Buffer

110° Max. – Hold Open

Installation Sequence:

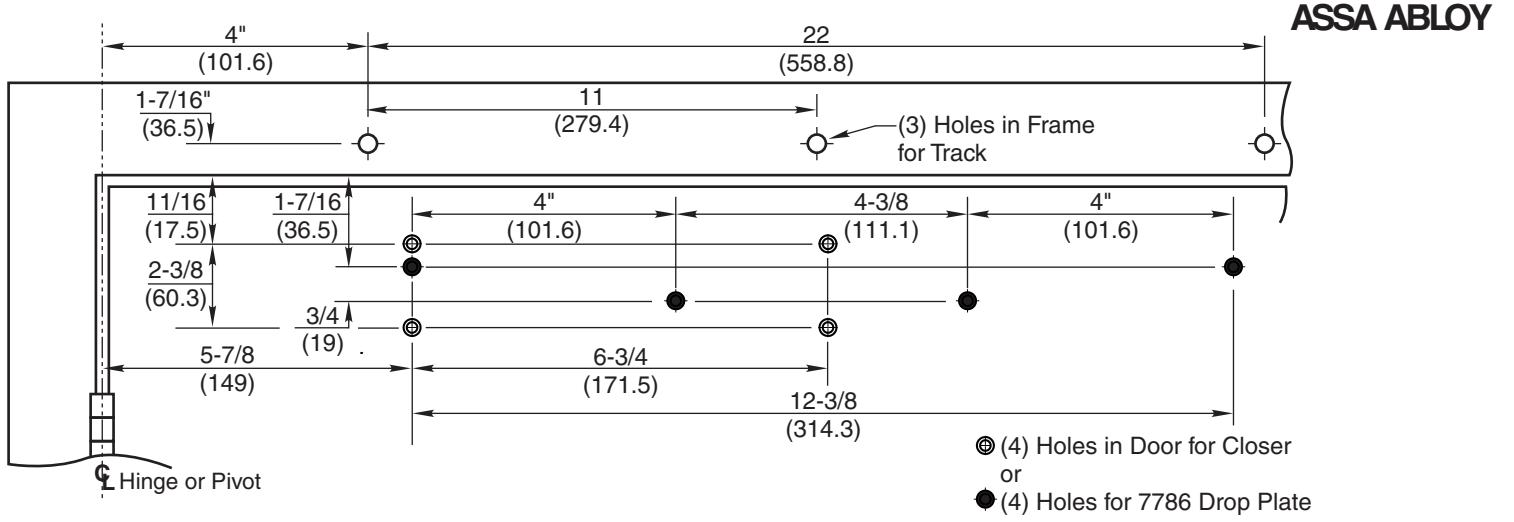

• 1. Use template to locate holes on door and frame:
  • 4 on door for closer or drop plate.
  • 3 on frame face for track assembly.
• 2. Prepare door and frame for fasteners using chart on this page.

FOR 7500 SERIES MODELS ONLY set closer power for door size using chart below:

Power Adjustment Chart
Maximum Interior Door Size inches / (meters)		Maximum Exterior Door Size inches / (meters)
30 / (.76)	0	30 / (.76)	2
36 / (.91)	2	36 / (.91)	5
42 / (1.07)	5	42 / (1.07)	8
48 / (1.22)	8	48 / (1.22)	11

NOTE: Maximum of 16-1/2 turns (360°) of Power Adjustment Nut.

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.

DO NOT use a power drill or driver to turn adjustment nut. This will damage closer and void warranty. +

-

"Spring Power Adjustment Nut"

• 3. Fasten closer body to door with power adjustment nut toward lock edge of door and with valves UP for Right Hand door valves DOWN for Left Hand door
• 4. Fasten slide track to frame face with open side facing down and spring buffer end toward hinge edge of door.

Preparation for Fasteners
Fasteners		Door or Frame	Drill-Sizes
Standard	#14 Type "A" SM Screw	Wood	3/16" (4.30 mm) pilot hole required
	1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4" - 20
Optional	Sex nuts and bolts	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
		Aluminum or Wood	3/8" (9.5 mm) through
	Through-bolts and grommet-nuts	All	9/32" (7 mm); 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

• 5. Adjust arm to shortest length and install 9/64" hex drive socket head screw from screw pack.

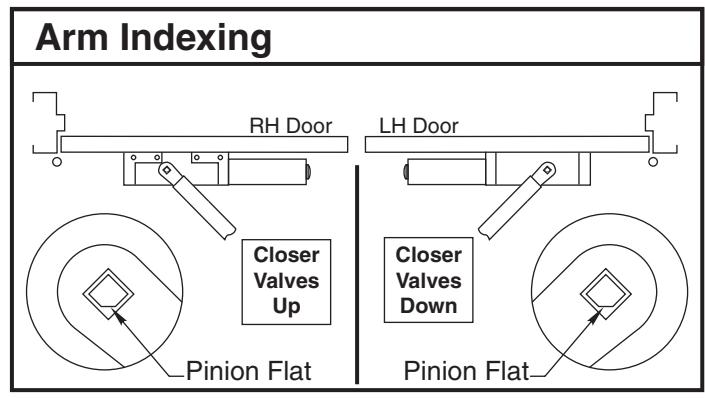

• 6. Place slide arm on pinion shaft using Arm Indexing instructions above.
• 7. Secure arm with arm washer and arm screw.
• 8. Insert arm stud into slide block in track assembly. Secure by pushing in on the retainer clip that extends from the slide block in the track, until it is flush with the slide block.
• 9. Adjust closer. (See Page 4)

Push Side Application

ASSA ABLOY

• IMPORTANT: From centerline of pivot point to end of track is 28" (711mm).
• Left hand door shown
• · Do not scale drawing
• Dimensions are given in inches (mm)
• · Maximum door opening:

100° Max. - Non Hold Open with Buffer in Track

125° Max. - Non Hold Open without Buffer in Track,

Auxiliary Door Stop Required

100° Max. – Hold Open Track

Installation Sequence:

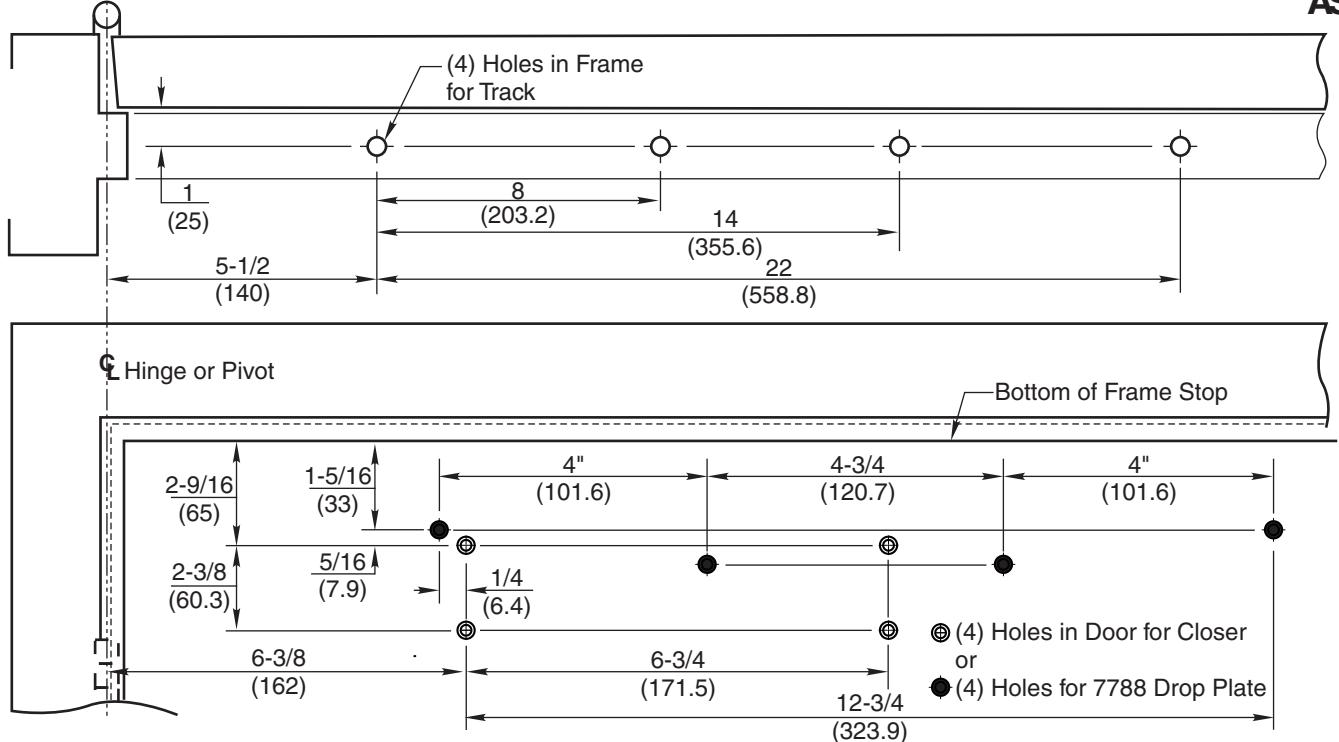

• 1. Use template to locate holes on door and frame:
  • 4 on door for closer or drop plate.
  • 4 on frame soffit for track assembly.
• 2. Prepare door and frame for fasteners using chart on Page 2.

FOR PS7500 SERIES MODELS ONLY set closer power for door size using chart below:

Power Adjustment Chart
Maximum Interior Door Size inches / (meters)		Maximum Exterior Door Size inches / (meters)
30 / (.76)	0	30 / (.76)	2
36 / (.91)	2	36 / (.91)	5
42 / (1.07)	5	42 / (1.07)	8
48 / (1.22)	8	48 / (1.22)	11
NOTE: Maximum of 16-1/2 turns

(360°) of Power Adjustment Nut.

adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.

Install closer per instructions

with the proper pre-load applied to the arm then

DO NOT use a power drill or driver to turn adjusts

adjustment nut. This will damage closer and void warranty.

• Fasten closer body to door with power adjustment nut toward lock edge of door and with valves UP for Right Hand door valves DOWN for Left Hand door
• Fasten slide track to frame soffit with open side facing down and spring buffer end toward hinge edge of door.
• 5. Adjust arm to shortest length and install 9/64" hex drive socket head screw from screw pack.

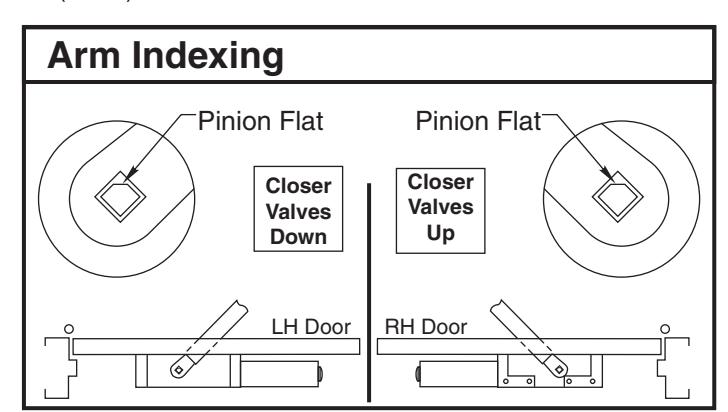

• Place slide arm on pinion shaft using Arm Indexing instructions above.
• 7. Secure arm with arm washer and arm screw.
• 8. Insert arm stud into slide block in track assembly. Secure by pushing in on the retainer clip that extends from the slide block in the track, until it is flush with the slide block.
• 9. Adjust closer. (See Page 4)

"Spring Power

Adjustment Nut"

Adjustment Instructions

Arm Attachment to Track

Insert arm stud into slide block in track. Secure by pushing in on the retainer clip that extends from the slide block, until it is flush with the slide block.

Door Opening Angle and/or Hold Open Angle:

Remove 9/64" hex drive socket head screw from arm. Open door to desired angle and install hex-drive socket head screw into hole in adjusting rod that is aligned with the hole in the adjusting tube.

Closing Power

7700ST Models come in three different sizes (4 thru 6), each power size can be increase by 50%.

7500ST Models are fully adjustable for proper sizing. See chart on page 2 or 3.

To adjust closer power - See Figure 1.

Closing Cycle (hydraulic control) Standard Closer Only

See Figure 2a.

Valve "L" controls door speed in Latch range.

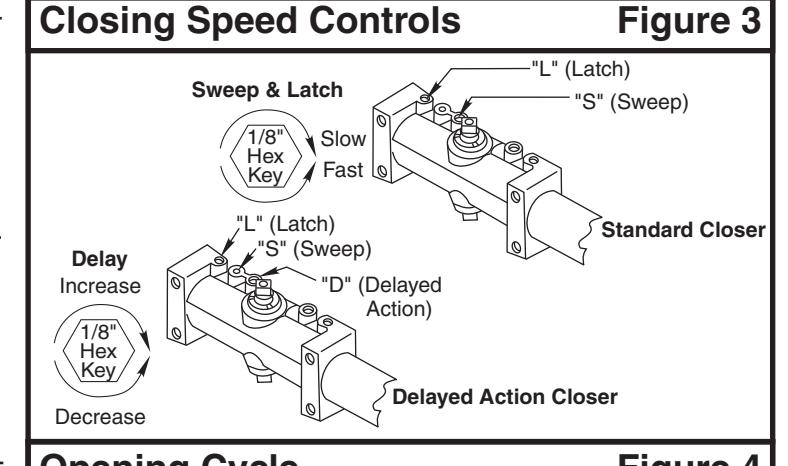

Valve "S/D" controls door speed in Sweep range.

Adjust as shown in Figure 3.

Delayed Action Closer Only

See Figure 2b.

Valve "L" controls door speed in Latch range.

Valve "S" controls door speed in Sweep range.

Valve "S/D" controls door speed in Delay range.

Adjust as shown in Figure 3.

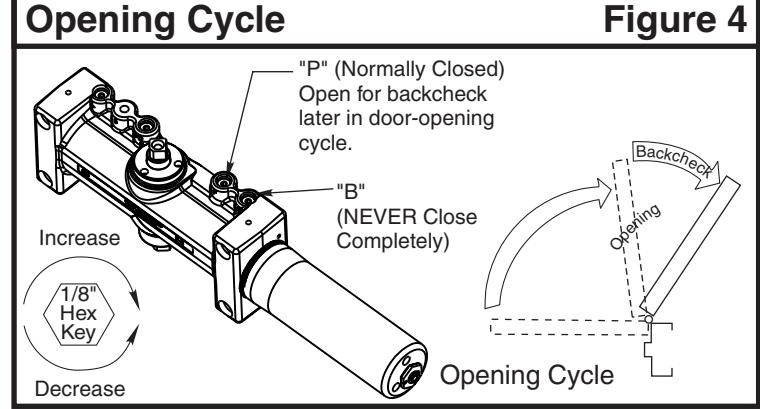

Opening Cycle (hydraulic control) See Figure 4.

Valve "B" cushions (slows) door opening in the backcheck range.

Valve "P" allows "backcheck" to begin later in the opening cycle.

Adjust as shown in Figure 4.

On/Off Hold Open Feature:

Slotted screw, accessible thru hole in face of track, engages or disengages the hold open feature with 1/4 turn of the screw. Hold open units are not permitted in fire door assemblies.

Hold Open Power Adjustment:

If more hold open power is required, the power may be increased by turning the adjustment screw in the end of the track nearest the hinges. Use 9/64" hex wrench provided and rotate adjustment screw clockwise to increase holding power.

Installation of Cover:

Fasten cover to closer with two screws provided:

Cover fastens at the top of closer

Closing Power Control Figure 1 Power Adjustment Chart Install closer per instructions with the proper pre-load applied to the arm then Maximum Maximum adjust spring power. The power Exterior adjustment will not work properly if the Interior closer spring is not pre-loaded. To Door Size Door Size increase power, use 11/16" wrench to inches / (meters) inches / (meters) turn power adjustment nut clockwise. 30 / (.76) 30 / (.76) To decrease power, turn nut counter clockwise. DO NOT use a power 36 / (.91) 2 36 / (.91) 5 drill or driver to turn adjustment nut. This will damage closer and 42 / (1.07) 42 / (1.07) 8 Spring Power 48 / (1.22) 48 / (1.22) 11 Adjustment Nut" NOTE: Maximum of 16-1/2 turns (360°) of Power Adjustment Nut.

Closing Cycle 2A 2B Closed Standard Closing Cycle Delayed Action Closing Cycle Closing Cycle
