Norton RixsonADAEZ-PRO-PLUS-with-Electric-Lock-and-RF-Transmitter-Receiver-By-Others_Wiring

Attachment 3

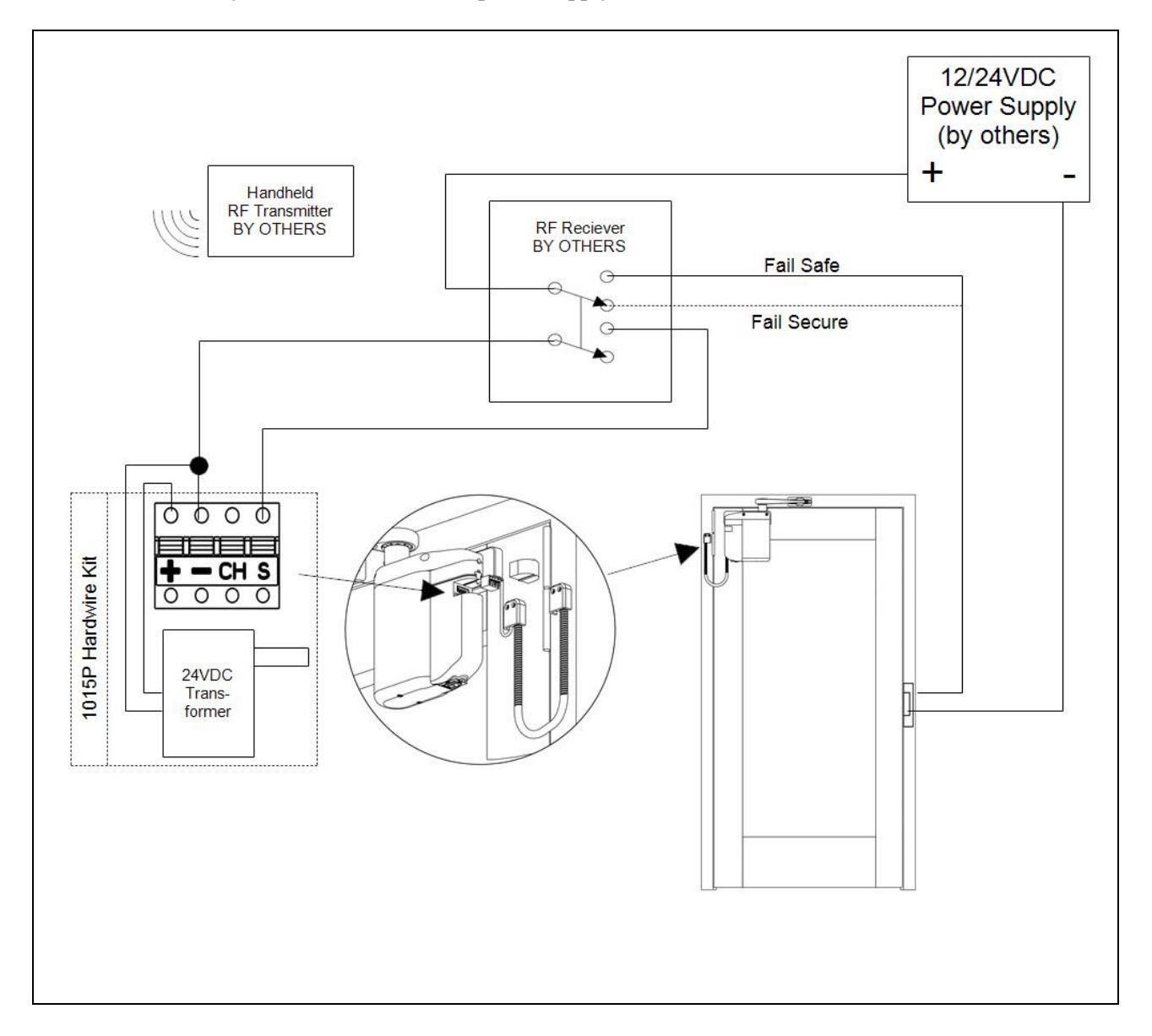

ADAEZ PRO PLUS with Electric Lock and RF Transmitter / Receiver By Others

(Sheet 5 of 5)

System Description:

• Handheld transmitter unlocks the door.
• ½ Second later the opener initiates and automatic open cycle.

System Requirements:

• Handheld Transmitter BY OTHERS
• Reciever with dual output relay BY OTHERS (signal wire for ADAEZ operator must be electrically isolated from lock and power supply)
