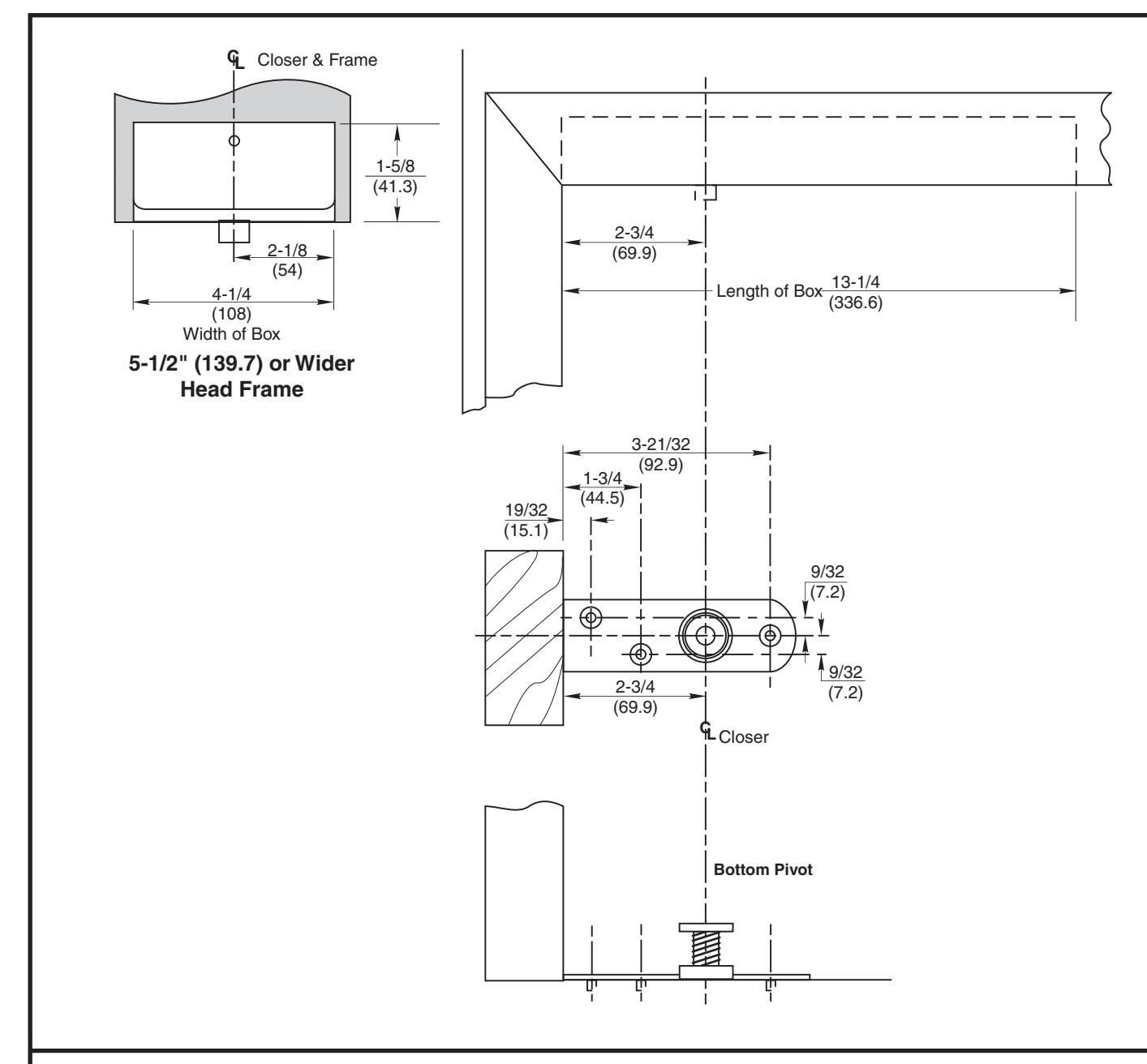

WOOD JAMB INSTALLATION

NOTES:

  • 1. Do not scale drawing.
  • 2. Arm plate used with arm on wood doors. Attach with #14 x 1-1/2" FHWS.
  • 3. Door radius recommended 2-5/8" (66.7).
  • 4. All dimensions given in inches (mm).

W608 Series Overhead Concealed Door Closer Center Pivot

TEMPLATE NUMBER REV

3 DATE OC60450B 01/22

NORTON RIXSON

Approved 2023-12-15
