Norton Rixson W0608 Series Overhead Concealed Closer, Page B Installation Instructions_OC60480B
Open the original PDF document
View PDF4 5
| Butt Hung | A | |
|---|---|---|
| 105° | 4 (101.6) | |
| 90° | 2-7/8 (73) | |

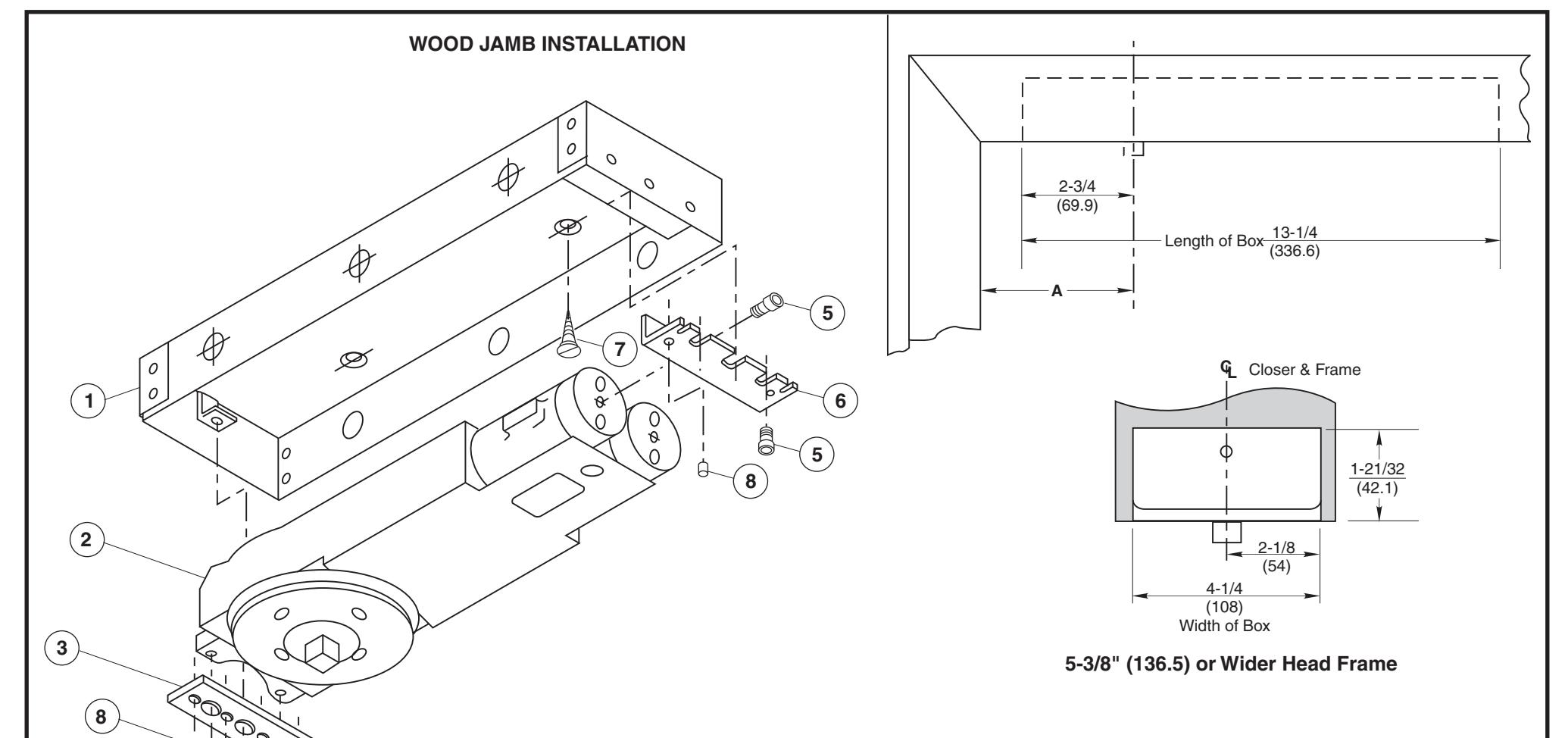

| Item No. | Part No. | Qty. | Description |
|---|---|---|---|
| 8 | 09544006 | 4 | 1/4-20x3/8 Soc. Set Scr. |
| 7 | 01321424 | 4 | 1/4x1-1/2 FHPWS SS |
| 6 | 608053 | 1 | Angle Bracket |
| 5 | 02244008 | 6 | 1/4-20x1/2 RHMS |
| 4 | 02244014 | 1 | 1/4-20x7/8 RHMS |
| 3 | 608052 | 1 | Adj. Plate |
| 2 | 608001 to 4 | 1 | Closer Body |
| 1 | 608049 | 1 | Closer Case |
W0608 Series Overhead Concealed Closer
NORTON RIXSON
TEMPLATE NUMBER REV
3 DATE OC60480B 01/22
Approved 2023-12-15
