Norton Rixson Store Front Bracket 6001 , D6001 Series Operator with WiFi Installation Template_7360-1063

Installation Sequence:

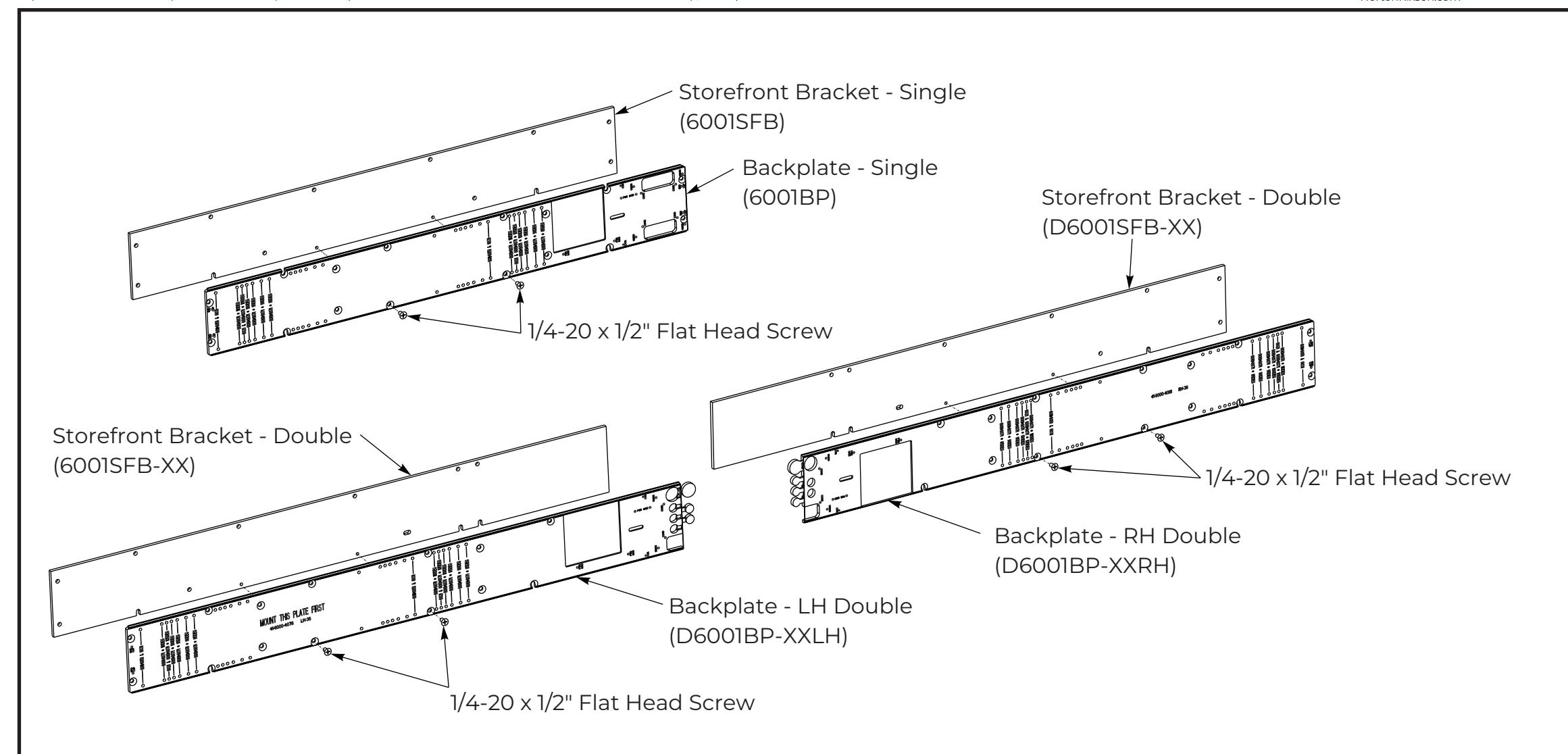

1. Before installing back plate onto frame, secure back plate and store front bracket together using (2) 1/4-20 x 1/2" flat head screws provided with store front bracket in the holes indicated above.

NOTE : Countersunk mounting holes in back plate should align with clearance holes in the store front bracket.

2. Proceed with 'Prepare Frame and Doors: B. Mount Back plates.' using back plate / store front bracket assembly in place of just the back plate.

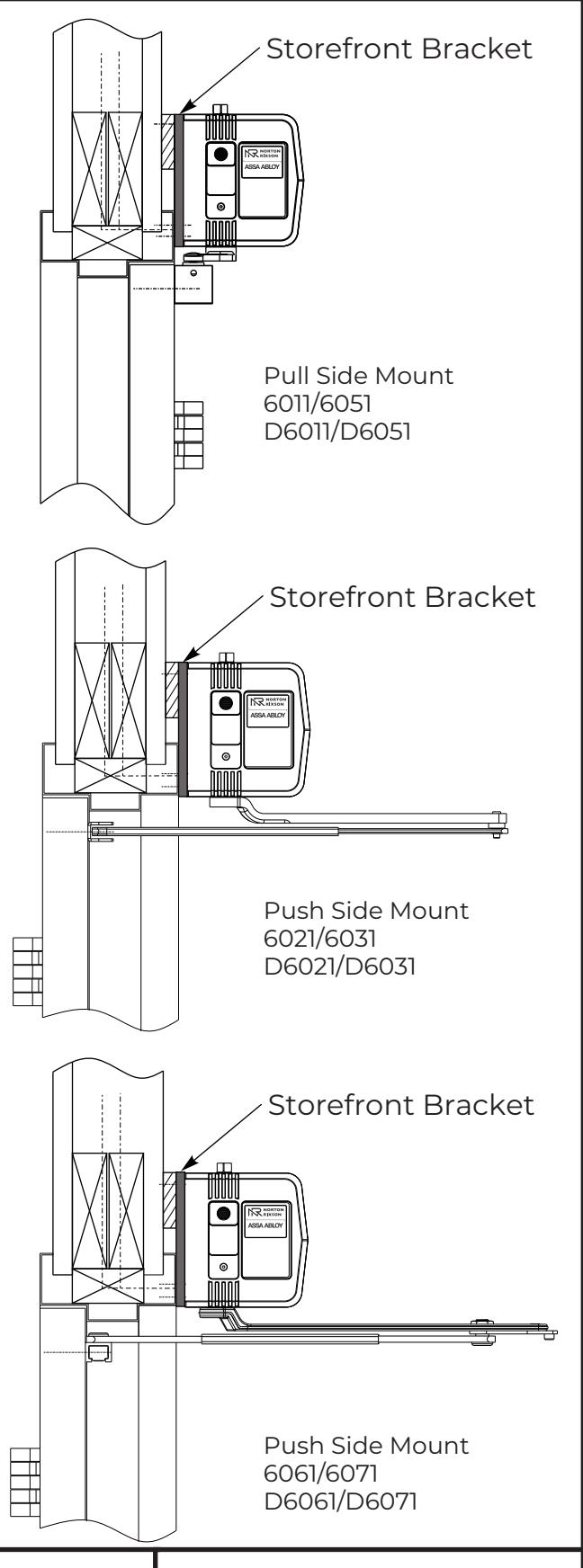

Store Front Bracket 6001 / D6001 Series Operator Installation Template

Approved 2023-07-12
