AN INCORRECTLY INSTALLED OR IMPROPERLY O ADJUSTED DOOR CLOSER CAN CAUSE PROPERTY DAMAGE OR PERSONAL INJURY. THESE INSTALLATION INSTRUCTIONS SHOULD BE FOLLOWED TO AVOID THE POSSIBILITY OF MISAPPLICATION OR MISADJUSTMENT.

Installation Instructions

80-9372-0094-015 (02-09)

Support Unit Models DE 4 PULL

Selective Multipoint Hold Open

Double Egress Arm and Slide Track

Hinge (pull) side of door mounting

Combination Door Closer-Holder and Releasing Device Signaled by External Detection Equipment

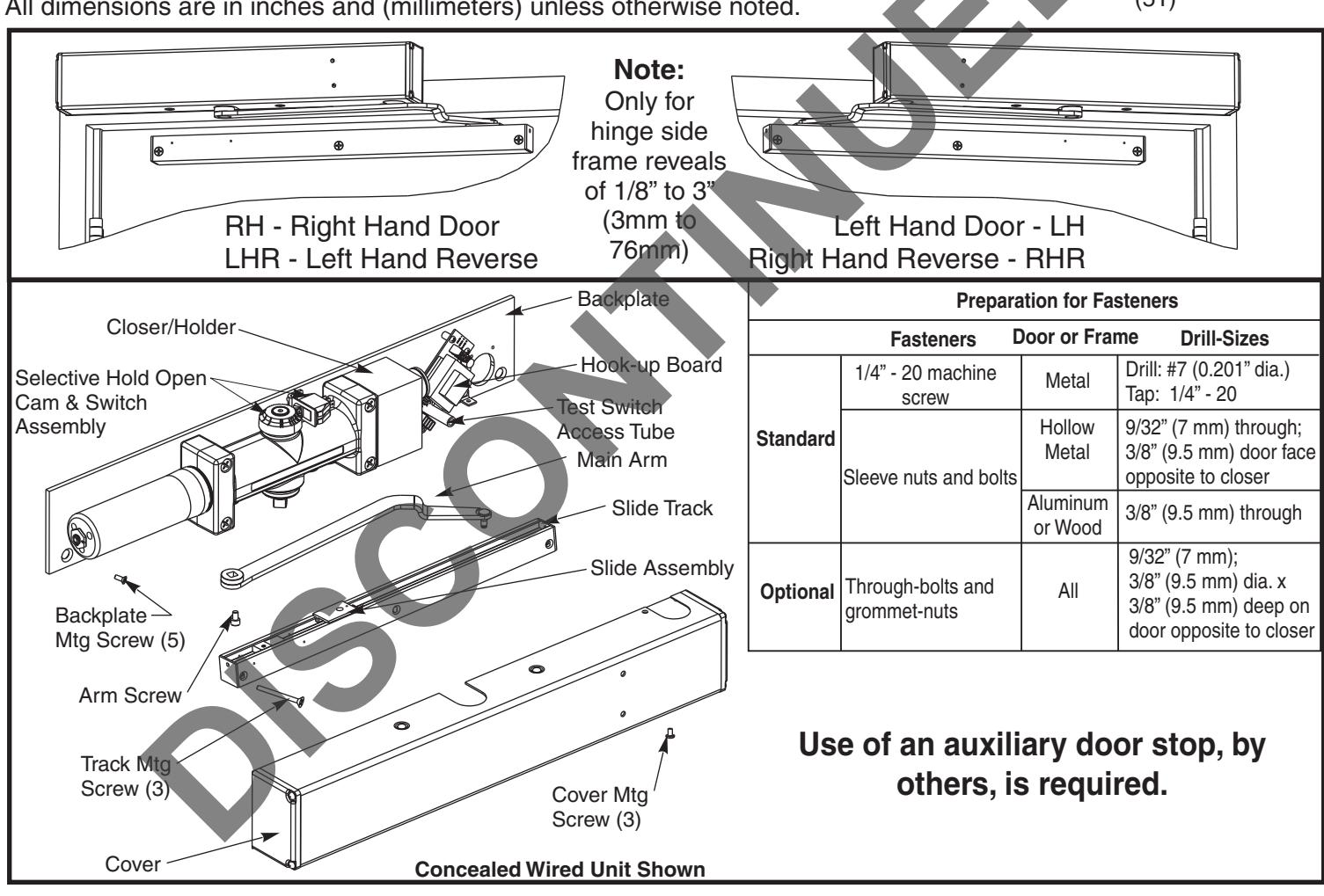

All dimensions are in inches and (millimeters) unless otherwise noted.

Requirements:

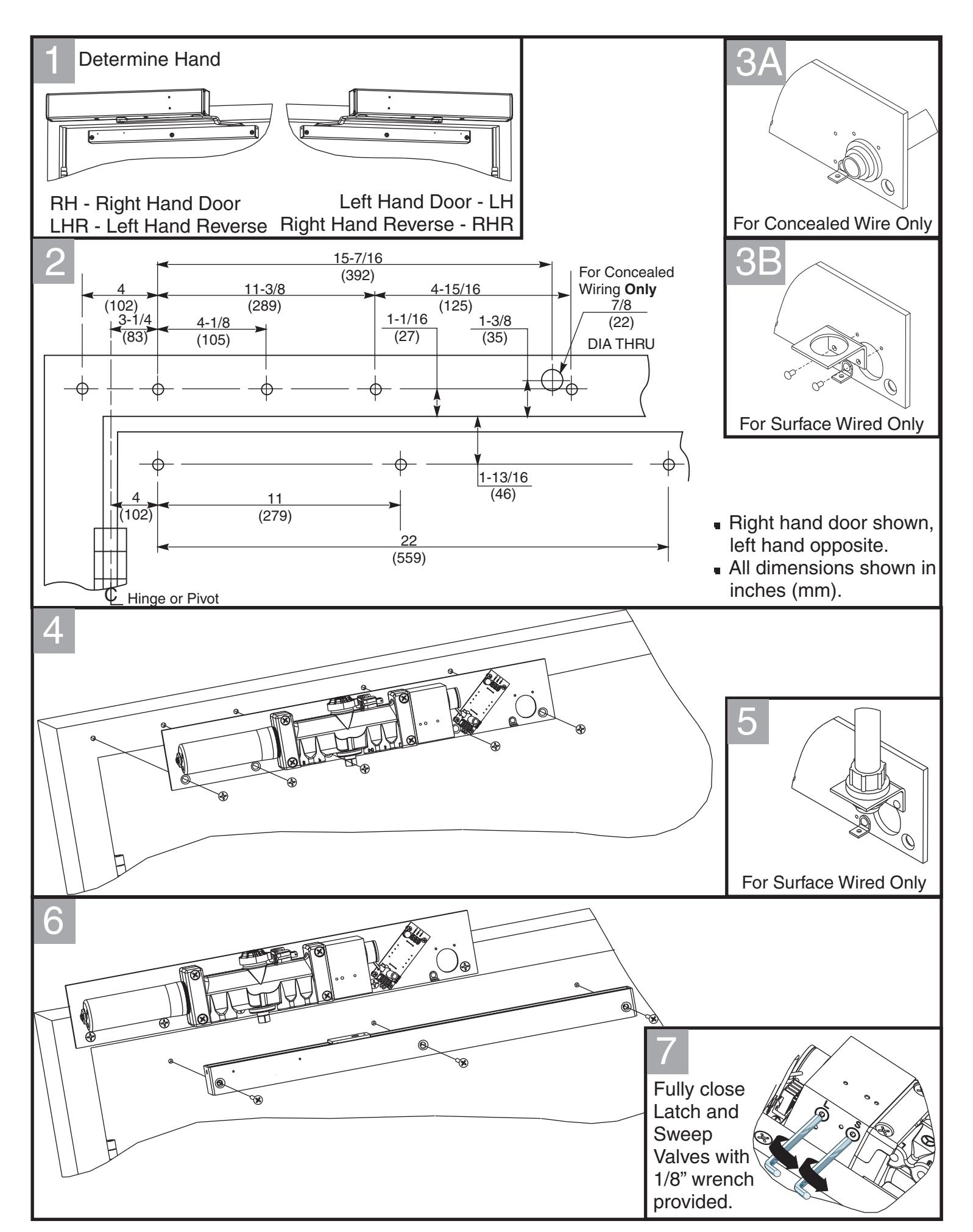

• Units are handed. Hand of unit and hand of door must be the same.
• Door must be hung on butt hinges or ¾" (19) offset pivots.
• Door thickness must be 1¾" (44) minimum 2¼" (64) maximum.
• Door must swing freely through the entire opening and closing cycle before beginning the installation procedure.

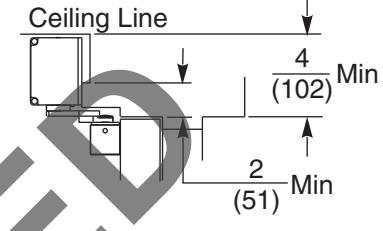

• Frame face must be a minimum of 2" (51).

• Ceiling clearance must be a minimum of 4" (102).
• Power input to unit must be of the same voltage as that stated on the unit.
• Unit to be mounted on interior of building in dry environment, maximum humidity of 95%.
• See NFPA70 for wiring requirements and NFPA72 for alarm system requirements.

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

Page 2

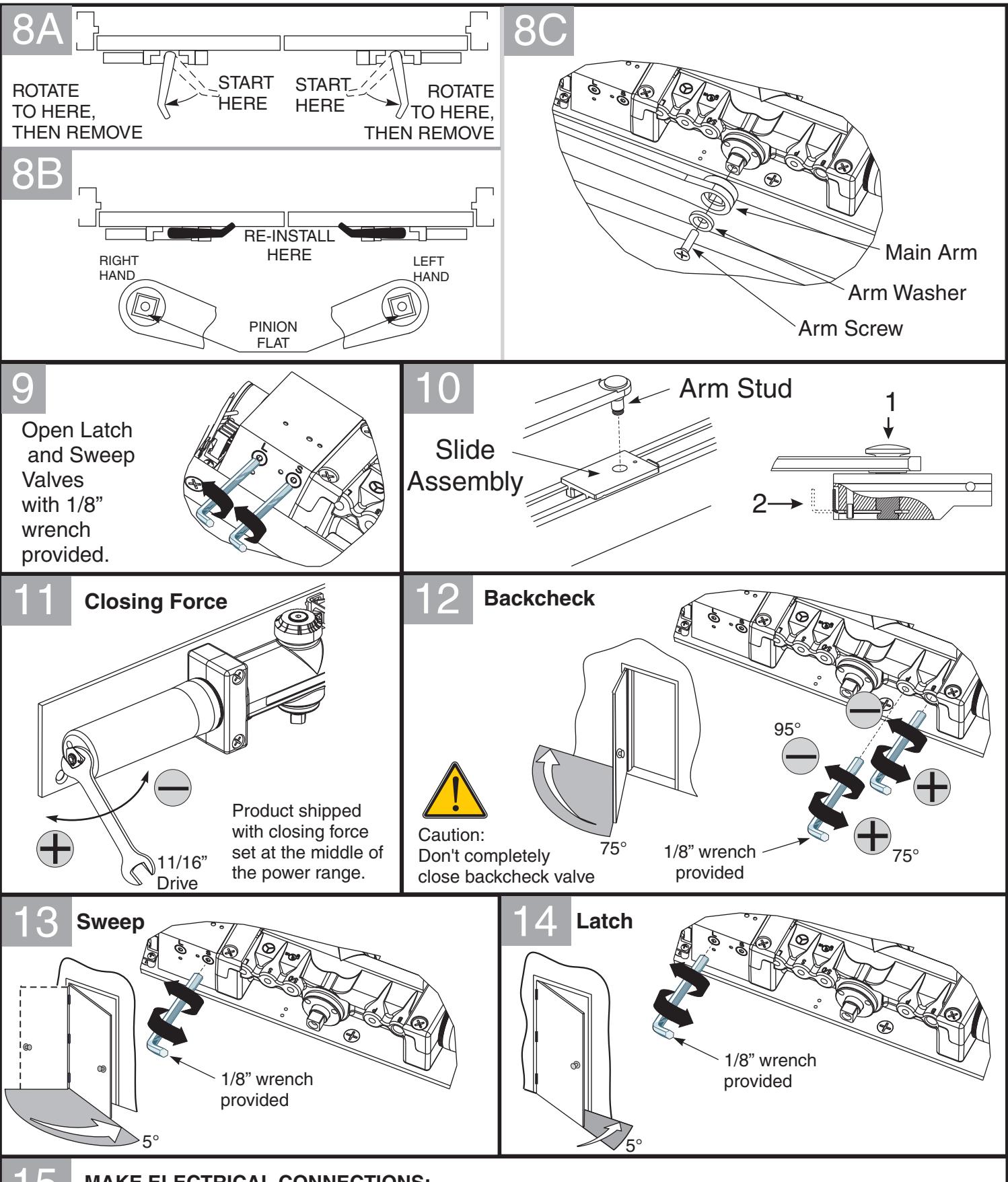

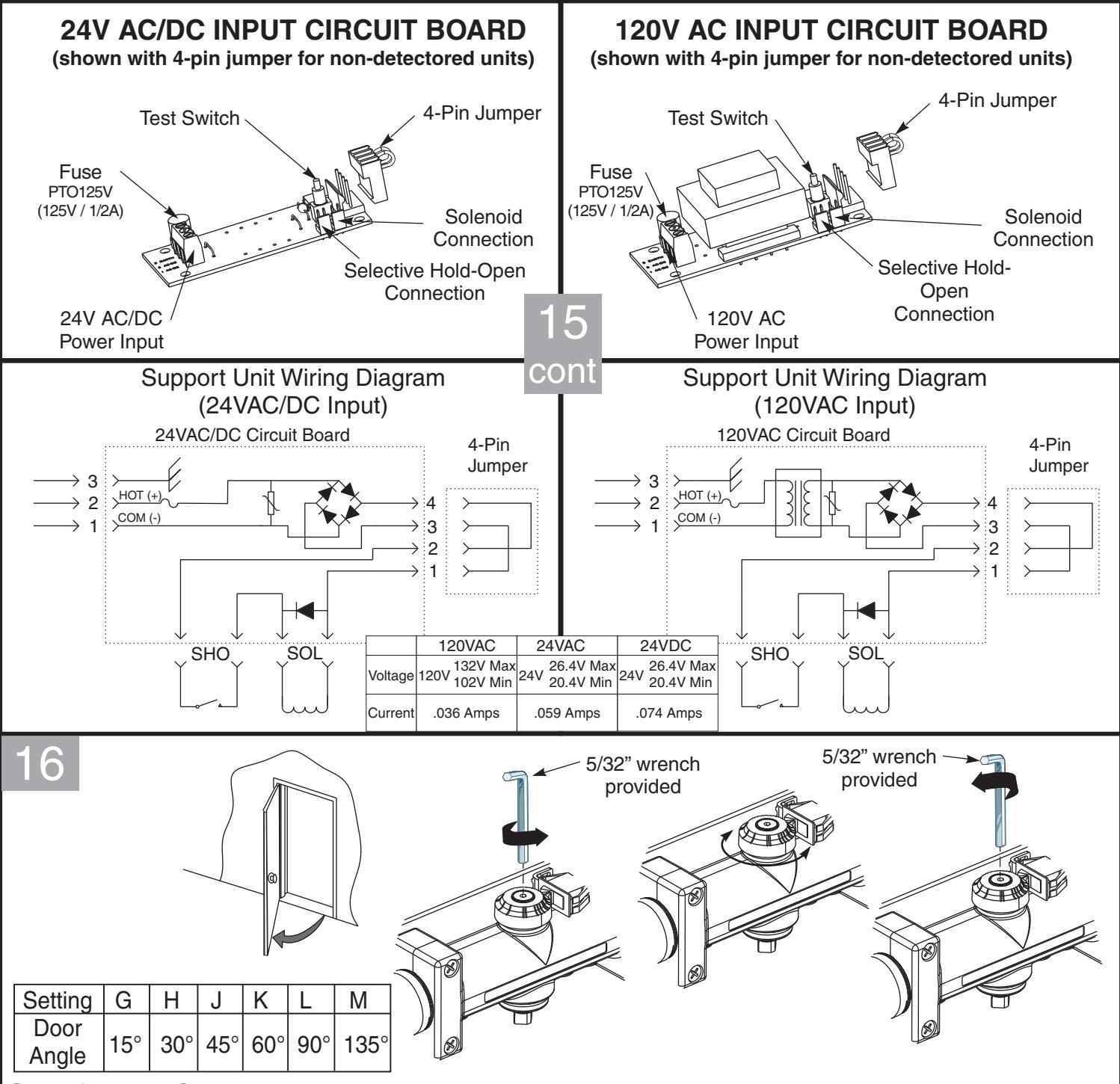

MAKE ELECTRICAL CONNECTIONS:

• · Power input to unit must be of the same voltage as that listed on the label.
• All wiring connections use standard wiring practice
• Maximum wire size is 18AWG.
• Make input power connections to the hook-up board terminal strip using illustration on Page 4 and wiring instructions 80-9342-0902-021.

Selective Hold Open Range

These units feature hold open (as shipped) starting at 85°. These units will hold open at virtually any degree of door opening from 85° to 180°. The hold open starting point may be changed (increased or decreased) by loosening the selective hold open cam screw, rotating the cam to the desired new starting point and re-tightening the cam screw.
