ASSA ABLOY Rigid Arm and Slide Track

Hinge (pull) side of door mounting

AN INCORRECTLY INSTALLED OR IMPROPERLY CADJUSTED DOOR CLOSER CAN CAUSE PROPERTY DAMAGE OR PERSONAL INJURY. THESE INSTALLATION INSTRUCTIONS SHOULD BE FOLLOWED TO AVOID THE POSSIBILITY OF MISAPPLICATION OR MISADJUSTMENT.

Installation Instructions

80-9372-0081-015 (02-09)

Support Unit Models 4 PULL

Selective Multipoint Hold Open

Ceiling Line 4 (102) Min 2 (51) Min

Use of an auxiliary door stop, by others, is suggested, but is required for doors opening beyond 110°.

3/8" (9.5 mm) deep on

door opposite to closer

Requirements:

Backplate

Mtg Screw (5)

Arm Screw

Track Mtg

Screw (3)

Cover

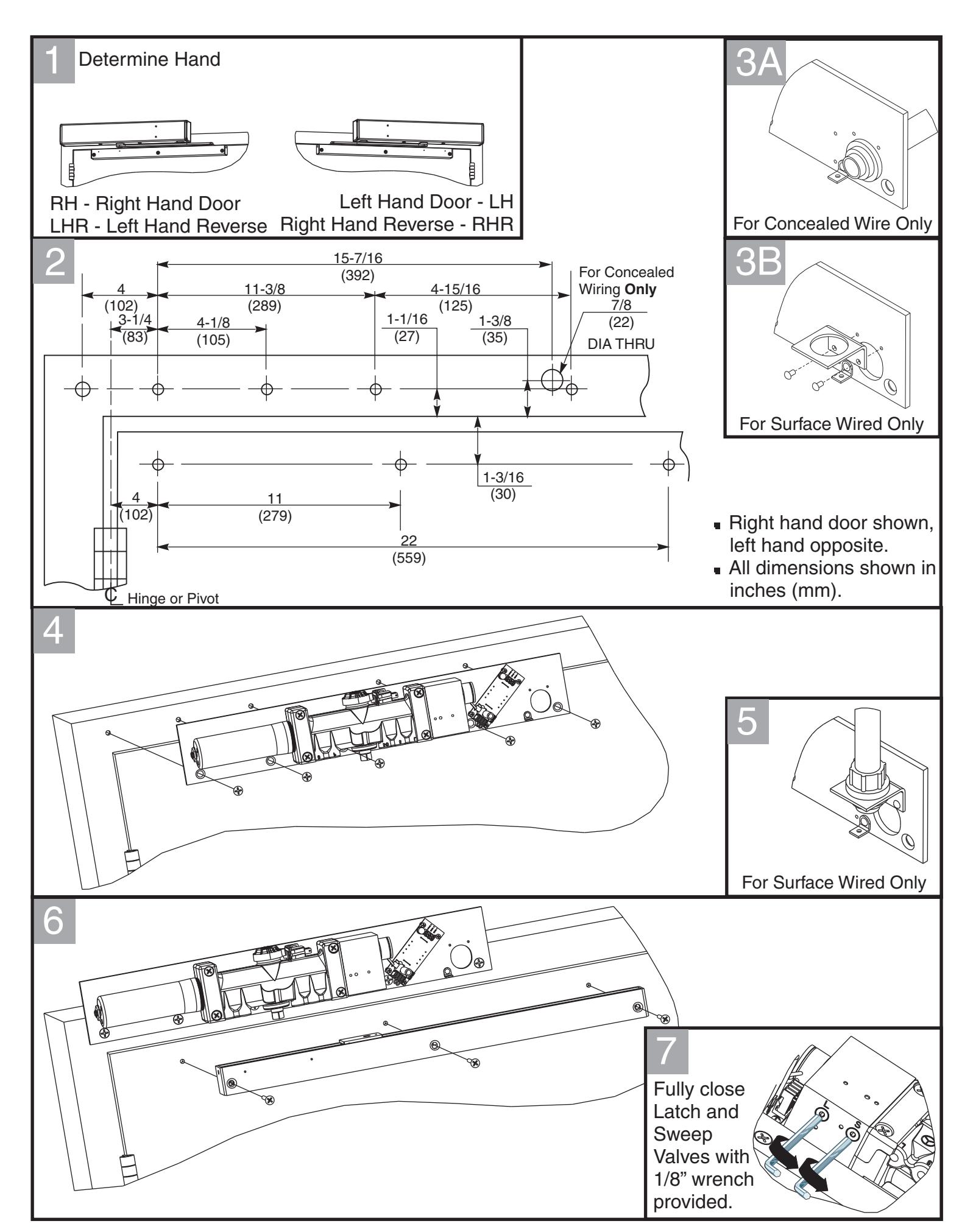

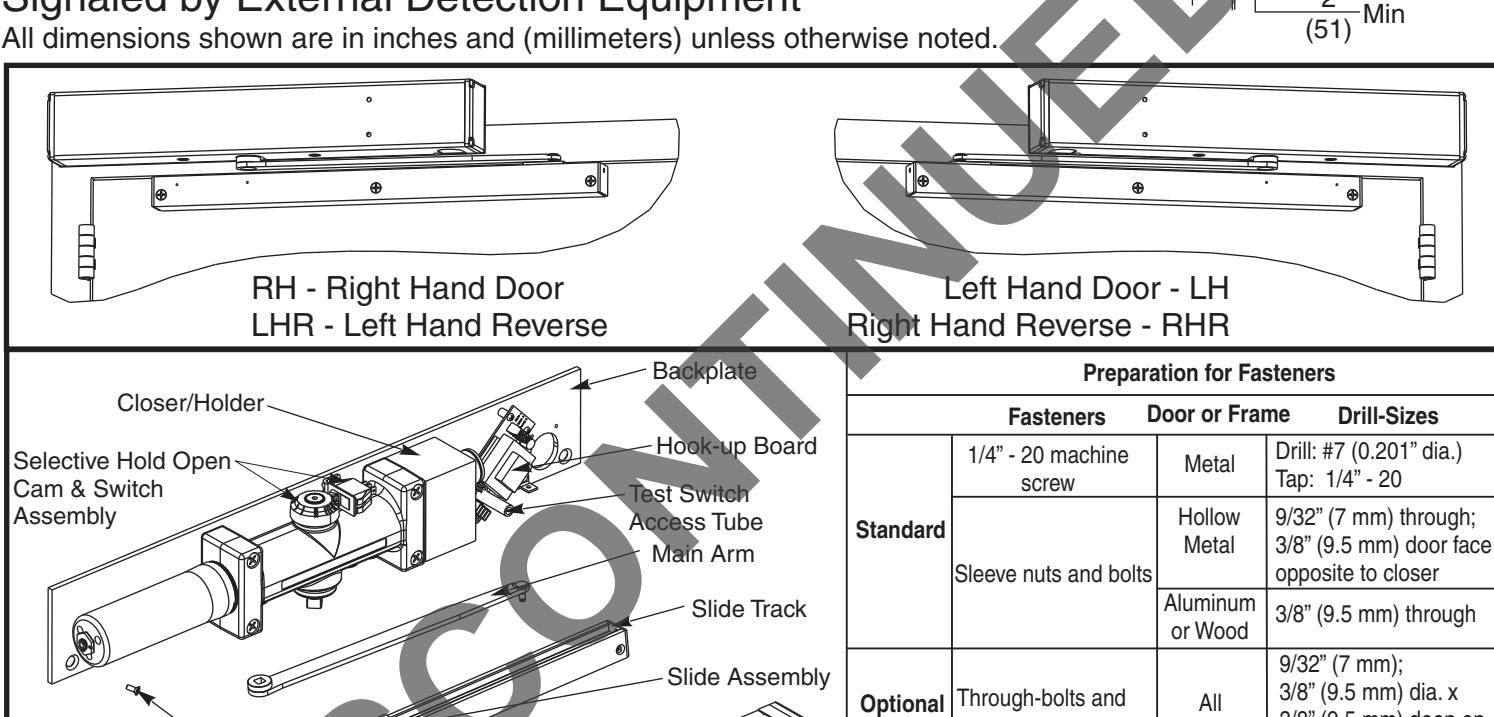

• Units are handed. Hand of unit and hand of door must be the same.
• Door must be hung on butt hinges or ¾" (19) offset pivots.
• Door thickness must be 1¾" (44) minimum 2¼" (64) maximum.
• Door must swing freely through the entire opening and closing cycle before beginning the installation procedure.
• Frame face must be a minimum of 2" (51).

• Ceiling clearance must be a minimum of 4" (102).

grommet-nuts

• Power input to unit must be of the same voltage as that stated on the unit.
• Unit to be mounted on interior of building in dry environment, maximum humidity of 95%.
• See NFPA70 for wiring requirements and NFPA72 for alarm system requirements.

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

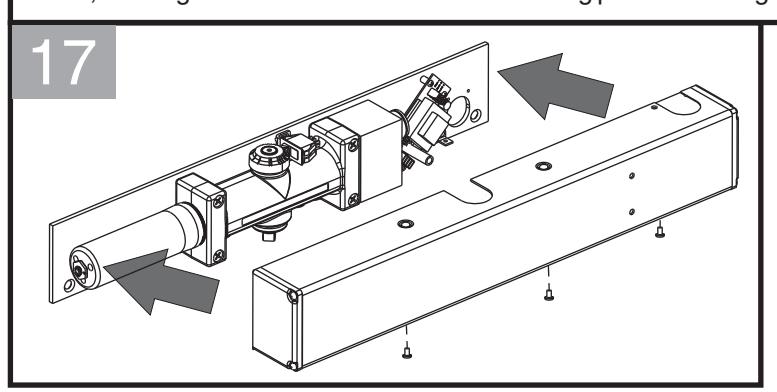

Cover Mta

Screw (3)

Concealed Wired Unit Shown

Page 2

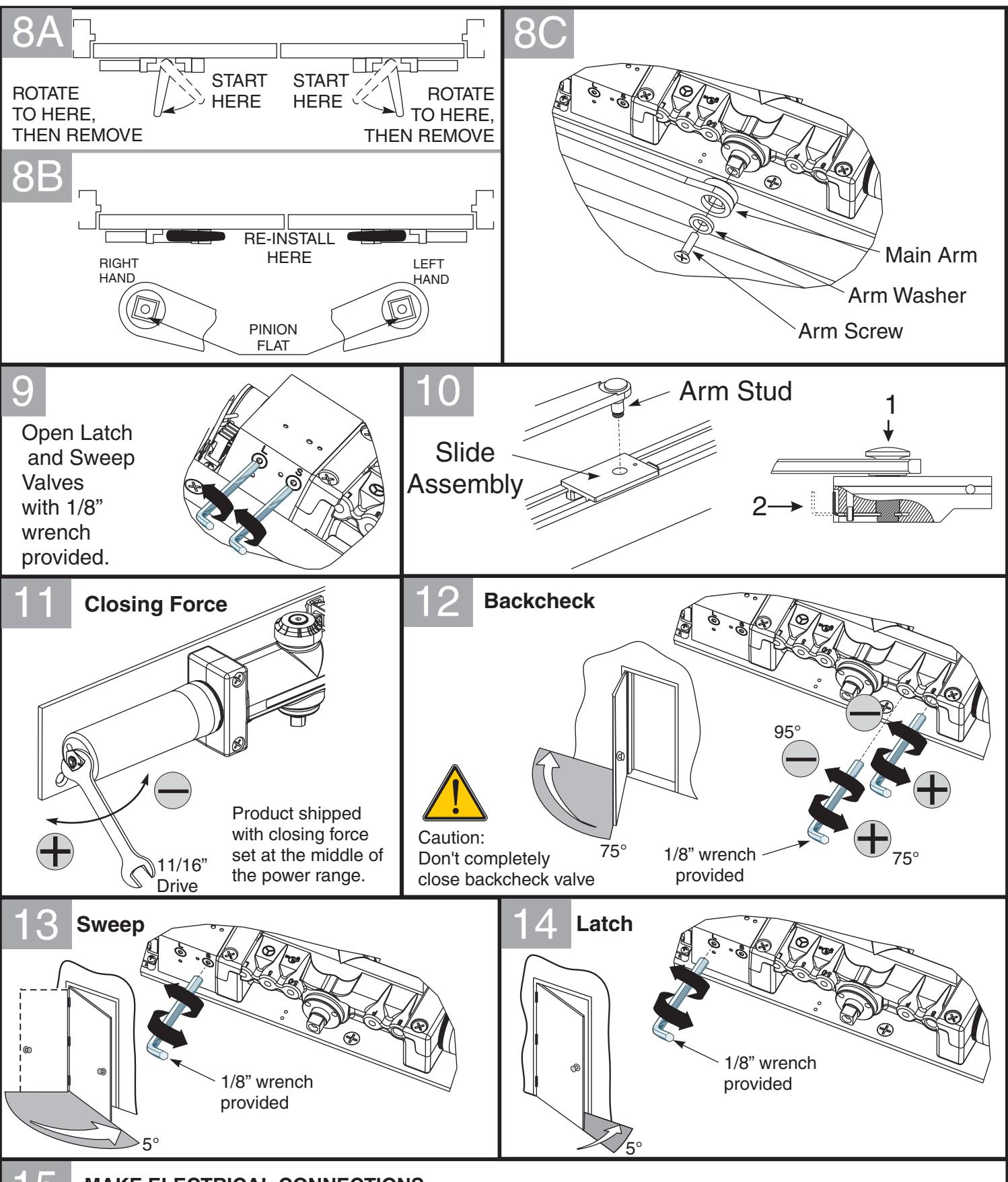

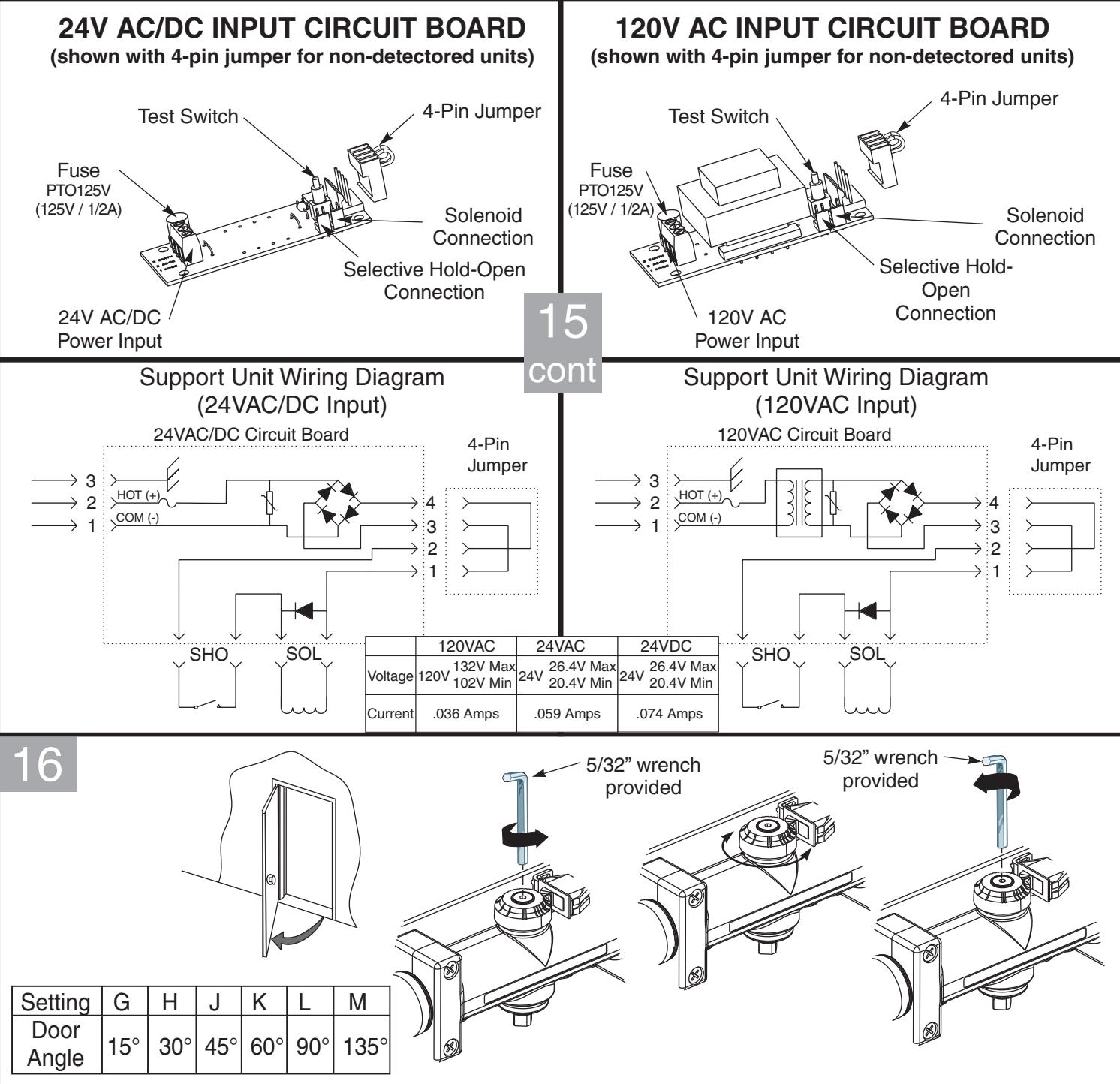

15 MAKE ELECTRICAL CONNECTIONS:

• Power input to unit must be of the same voltage as that listed on the label.
• All wiring connections use standard wiring practice
• Maximum wire size is 18AWG.
• Make input power connections to the hook-up board terminal strip using illustrations and wiring diagrams on Page 4.

Selective Hold Open Range

These units feature hold open (as shipped) starting at 85°. These units will hold open at virtually any degree of door opening from 85° to 180°. The hold open starting point may be changed (increased or decreased) by loosening the selective hold open cam screw, rotating the cam to the desired new starting point and re-tightening the cam screw.
