AN INCORRECTLY INSTALLED OR IMPROPERLY O ADJUSTED DOOR CLOSER CAN CAUSE PROPERTY DAMAGE OR PERSONAL INJURY. THESE INSTALLATION INSTRUCTIONS SHOULD BE FOLLOWED TO AVOID THE POSSIBILITY OF MISAPPLICATION OR MISADJUSTMENT.

Installation Instructions 80-9372-0095-015 (02-09)

Master Unit Models DE 6 PULL

Selective Multipoint Hold Open

Double Egress Arm and Slide Track

Hinge (pull) side of door mounting

Combination Door Closer-Holder and Releasing Device With Integral Smoke Detector

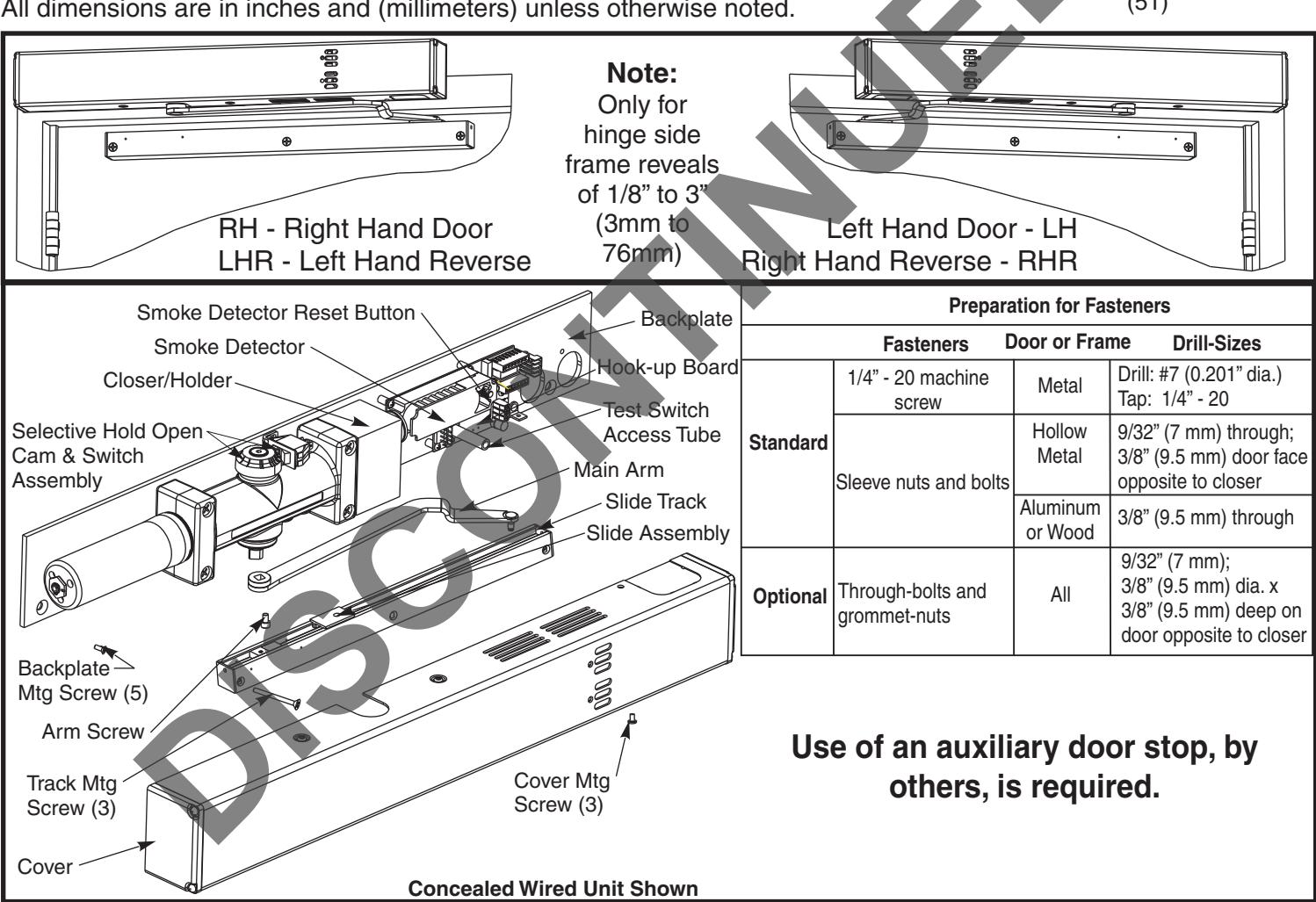

All dimensions are in inches and (millimeters) unless otherwise noted.

Requirements:

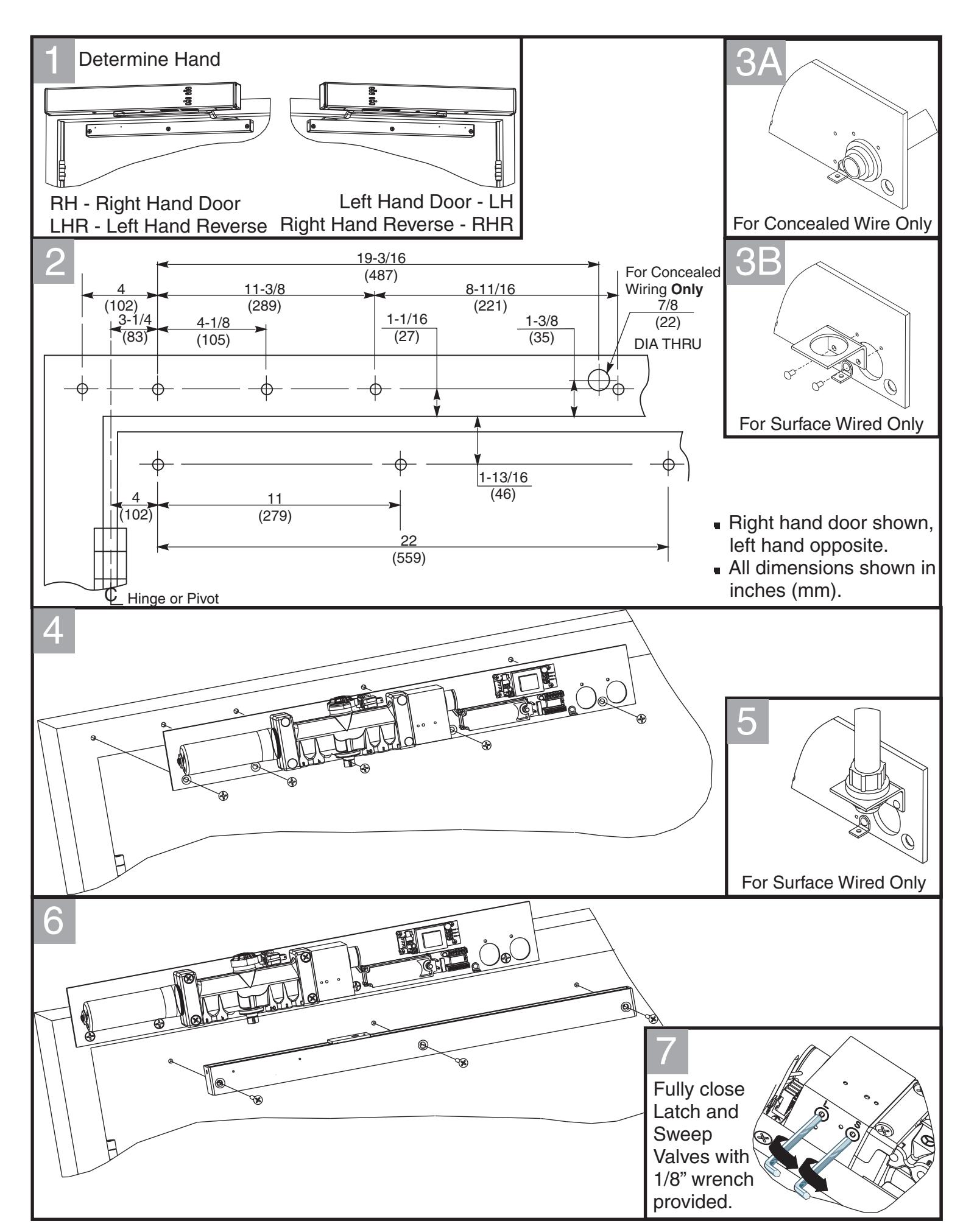

• Units are handed. Hand of unit and hand of door must be the
• Door must be hung on butt hinges or ¾" (19) offset pivots.
• Door thickness must be 1¾" (44) minimum 2¼" (64) maximum.
• Door must swing freely through the entire opening and closing cycle before beginning the installation procedure.

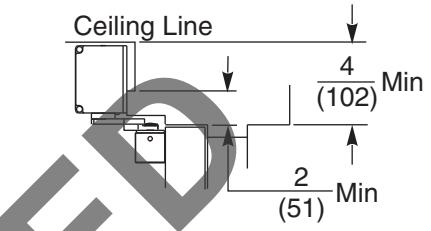

• Frame face must be a minimum of 2" (51).

• Ceiling clearance must be a minimum of 4" (102).
• Power input to unit must be of the same voltage as that stated on the unit.
• Unit to be mounted on interior of building in dry environment, maximum humidity of 95%.
• See NFPA70 for wiring requirements and NFPA72 for alarm system requirements.

NOTE: For special applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only. For wiring, see "Wiring Instructions" part number 80-9342-0902-015 (02-09).

Page 2

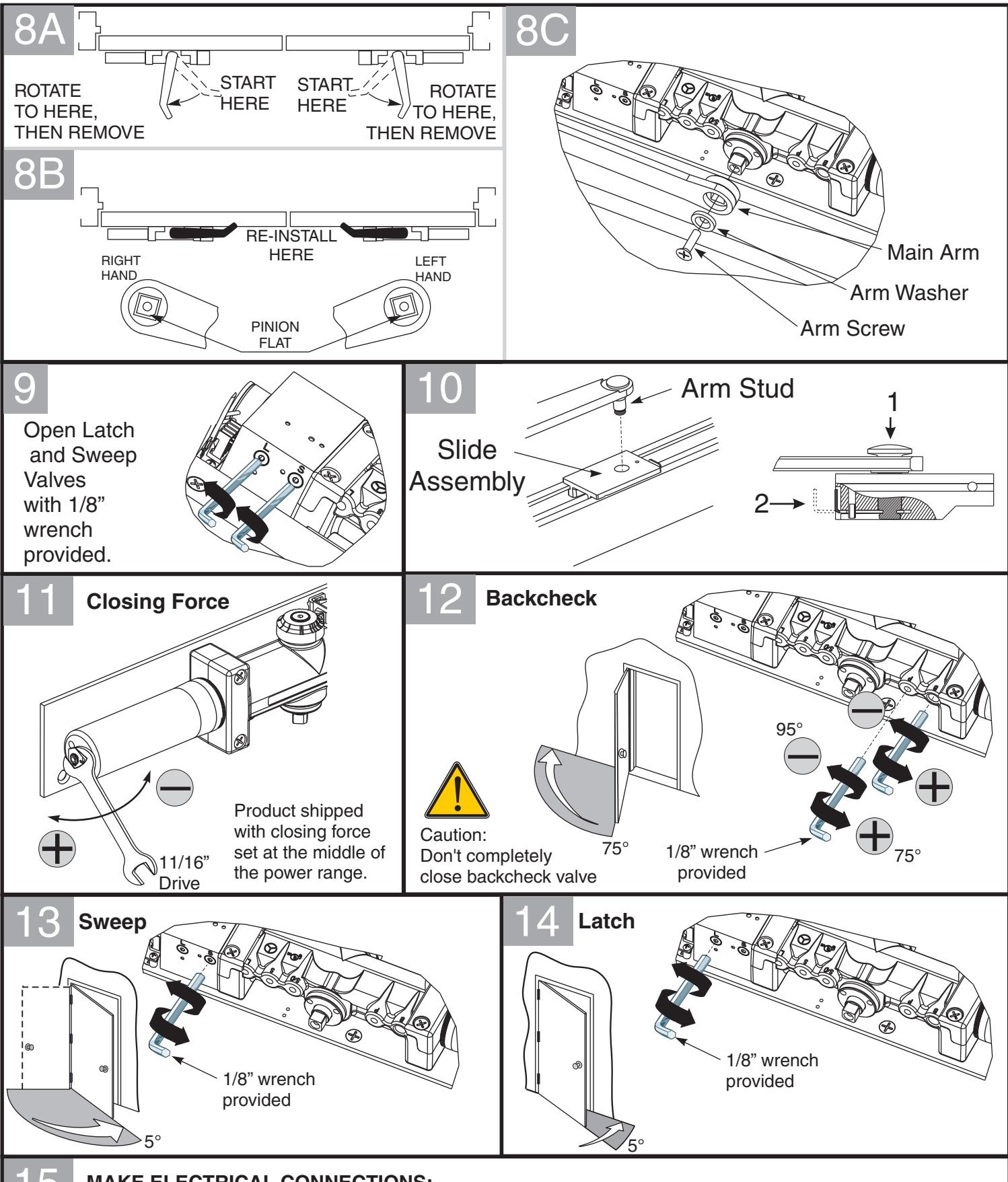

MAKE ELECTRICAL CONNECTIONS:

• · Power input to unit must be of the same voltage as that listed on the label.
• All wiring connections use standard wiring practice
• Maximum wire size is 18AWG.
• Make input power connections to the hook-up board terminal strip using illustration on Page 4 and wiring instructions 80-9342-0902-021.

24V AC/DC INPUT CIRCUIT BOARD (shown without detector wiring harness) 4-Pin Connector Of Detector Wiring Harness Fuse PTO125V (125V / 1/2A) Solenoid Connection Selective Hold-Open Connection

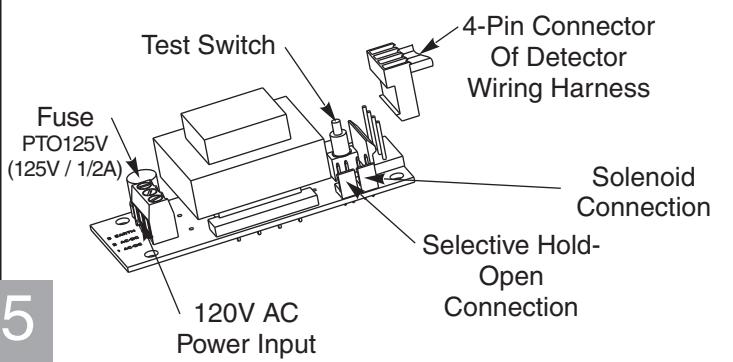

120V AC INPUT CIRCUIT BOARD

(shown without detector wiring harness)

For complete wiring instructions, refer to "Wiring Instructions" 80-9342-0902-015.

con

	120VAC	24VAC	24VDC	Detector
Voltage	120V 132V Max 102V Min	24V 26.4V Max 20.4V Min	24V 26.4V Max 20.4V Min	24V 26.4V Max 20.4V Min
Current	.036 Amps	.059 Amps	.074 Amps	0.034 Amps

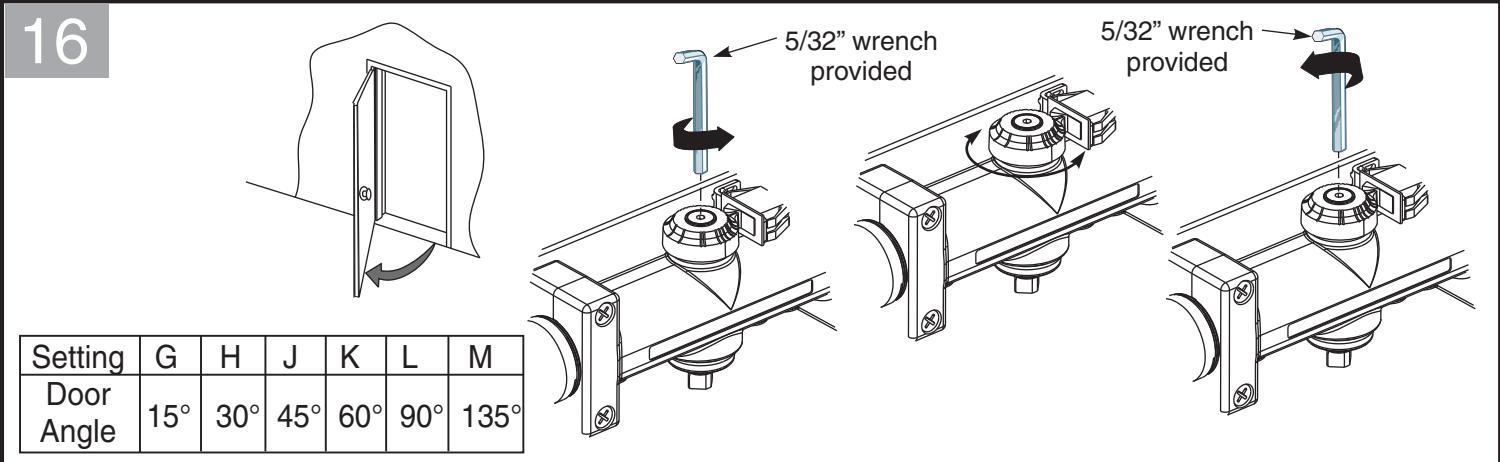

Selective Hold Open Range

Power Input

These units feature hold open (as shipped) starting at $85^\{\backslash circ\}$ . These units will hold open at virtually any degree of door opening from $85^\{\backslash circ\}$ to $180^\{\backslash circ\}$ . The hold open starting point may be changed (increased or decreased) by loosening the selective hold open cam screw, rotating the cam to the desired new starting point and re-tightening the cam screw.
