Norton Rixson Smok-Chek V Series Closer, Without Detector, FM-0601K, Push Side Mounting, 85 Thru Max Hold Open …_SC90130
Open the original PDF document
View PDF

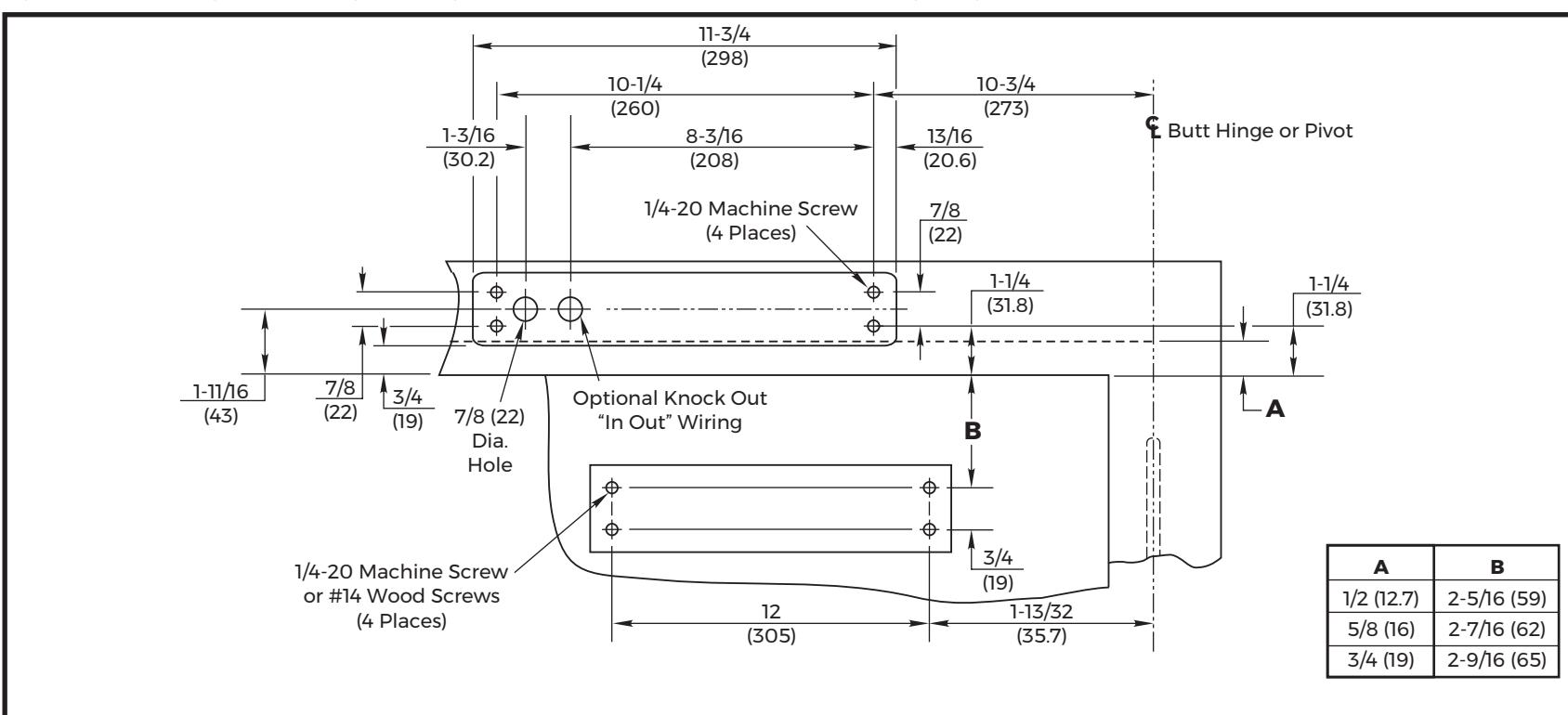

Closer Cover Dimensions 2-3/16" x 13" x 2-1/8" Projection (55.5) x (330) x (54)
| С | D | |
|---|---|---|
| ı | 1/2 (12.7) | 2-1/2 (63.5) |
| ı | 5/8 (16) | 2-5/8 (67) |
| ı | 3/4 (19) | 2-3/4 (70) |

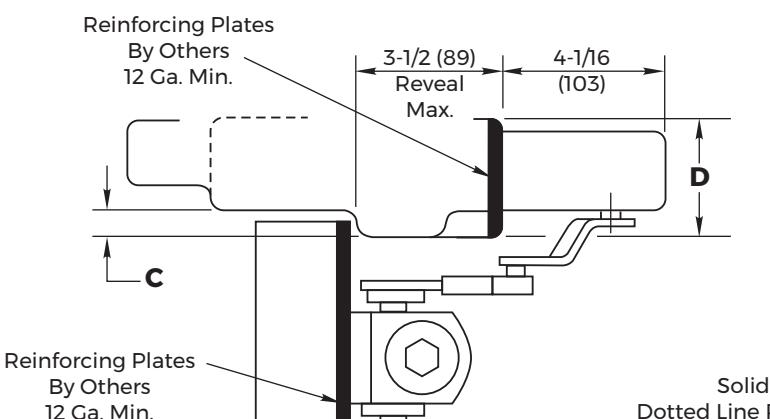

Solid Line Represents Double Egress Frame Dotted Line Represents Standard Double Rabbeted Frame
NOTES:
- 1. Do not scale drawing.
- 2. All dimensions are given in inches (mm).
- 3. Right hand door shown.
- 4. Door hanging means: Standard 4", 4-1/2", 5" Butt Hinges or 3/4" Offset Pivots.
- Other hanging means require special installation instructions. Contact factory.
Smok-Chek V Without Detector FM-0601K Series Push Side Mounting 85° Thru Maximum Degree Hold Open Approved 2023-12-15
ASSA ABLOY
TEMPLATE NUMBER SC90130
REV 3
DATE 12/23
