Notes:
- 1. Do not scale drawing.
- 2. All dimensions given in inches.
- 3. Right hand door shown.
- 4. Door hanging means: Standard 4", 4-1/2", 5" Butt or Swing Clear Hinges or 3/4" Offset Pivots.
- 5. Other hanging means require special installation instructions. Contact factory.
- 6. For 90° Hold Open 3-3/8" clearance required between pull side of door and wall.
Swing Clear - 135° Max.
| Butt Size | Maximum Opening | ||
|---|---|---|---|
| (W) | Flush | 1/8" Reveal | |
| 4-1/2 | 150° | 145° | |
| 5 | 170° | 165° | |
| 6 | 180° | 175° | |

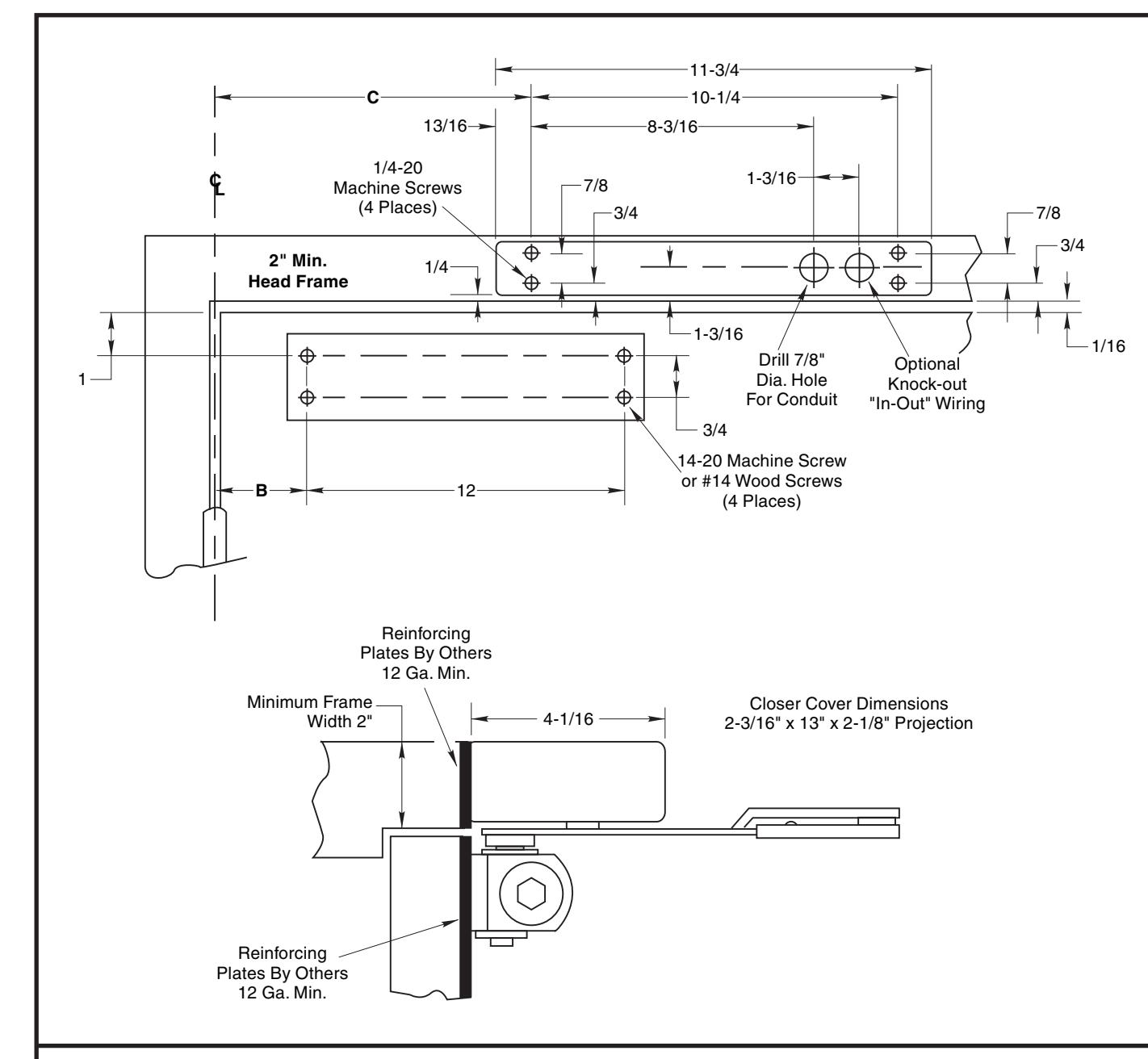

Determine Hold Open Degree and Select "B" and "C" Dimensions Below
| H. O. Range | В | С |
|---|---|---|
| 85° – 135° | 4-1/2 | 11-1/2 |
| 130° – 180° | 2-1/2 | 9-1/4 |
CAUTION: Do not exceed 135° in 85° - 135° range "B" and "C" taken from centerline of butts or pivots.
Smok-Chek V Without Detector FM-0600 Series Pull Side Mounting 85° Thru Maximum Degree Hold Open
TEMPLATE NUMBER
3 SC90120
RIXSON
ASSA ABLOY
DATE 01/22
Approved 2023-12-15
