QUICK SHIP POLICY
Quick Ship Order Form
Please use the form on page 10 when placing orders for Norton Rixson products. Copies of this form can also be printed from our website (www. nortonrixson.com).
Quick Ship Numbers
Quick Ship Numbers must be included on the order form. Orders listing model numbers only will be processed as factory orders.
Quick Ship/Factory Orders
Quick Ship Product Orders and Factory Orders must be submitted on separate order forms. Any order received having both factory and quick ship products will be processed as a factory order and shipped from the factory at normal lead times.
Quotes
Quote number must be referenced on the purchase order.Orders without this information will be processed at standard buying programs.
Minimum Order
Minimum invoice is $250 net product value.
Delivery
Lead time is 5 delivery days from receipt of order. (Consult the current Norton Rixson Price Book for a complete list of Terms & Conditions regarding delivery.) We reserve the right to limit quantities.
Freight
Customer orders with net product value in excess of $7,000 will be shipped prepaid by Norton
Rixson's carrier of choice to a single destination point in the United States.
Changes/Cancellations
Due to the promptness of delivery, no changes or cancellations will be accepted. The only exception is when we are out of stock.
Prices
All shipments will be made at prices prevailing at time of shipment.
Terms
Invoices dated the 1st through the 15th will be due for 2% discount on the 10th of the following month. Invoices dated the 16th through the 31st will be due for 2% discount on the 25th of the following month. Net immediately thereafter.
Consult the current Norton Rixson Price Book for a complete list of Terms & Conditions, Tools & Rules and Warranty Information.
Customer Service
Tel: 877-974-2255
orders.NortonRixson@assaabloy.com
Hours of Operation
8:00 am - 4:30 pm EST
Orders must be received before 2:30 pm EST for same day processing.
TABLE OF CONTENTS
|
7500
3 |
|---|
|
8500
4 |
|
1601, 410, 210
5 |
|
160, Screw Packs, 5700, Operator Accessories
6 |
|
27 Floor Closers
7 |
|
28 Floor Closers
7 |
|
Floor Closer Parts
7 |
|
Checkmate® Stops
8 |
|
Pivots
8 |
|
Electromagnetic Door Holder/Releases
8 |
|
Quick Ship Order Form
9 |

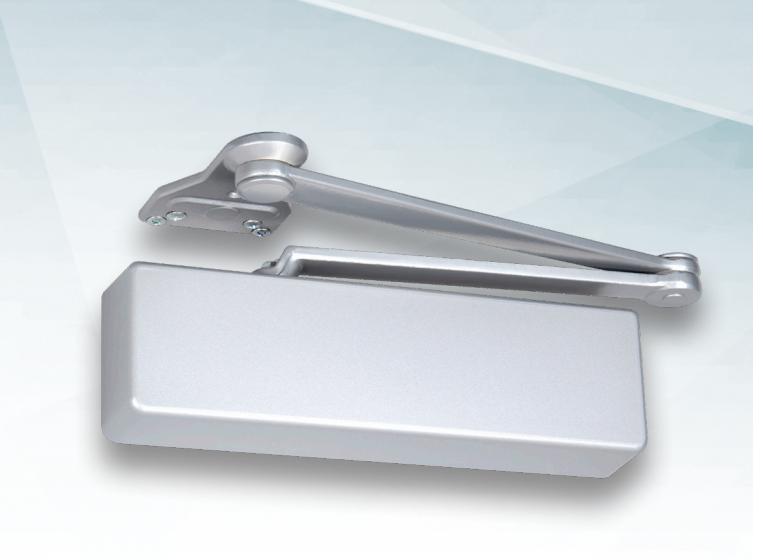

7500 SERIES – INSTITUTIONAL DOOR CLOSERS
Tri-Style® Packaging, Case Qty. 4
| Model # | Description | Finish | Quick Ship # |
Approx. Weight
(Each) lbs. |
Maximum
Quantity |
|
|---|---|---|---|---|---|---|
| Non-Hold Open | ||||||
| 7500 x SN^ | Multi-Size 1-6 | 689 | 007729 | 9 | 50 | |
| 7500 x SN^ | Multi-Size 1-6 | 690 | 007727 | 9 | 50 | |
| 7500DA |
Multi-Size 1-6, Delayed
Action |
689 | 007760 | 9 | 25 | |
| Hold Open | ||||||
| 7500H x SN^ | Multi-Size 1-6 | 689 | 015706 | 11 | 20 | |
| CloserPlus® | ||||||
| Non-Hold Open | ||||||
| CLP7500^ | Multi-Size 1-6 | 689 | 008574 | 14 | 25 | |
| Parallel Rigid | ||||||
| Non-Hold Open | ||||||
| PR7500^ | Multi-Size 1-6 | 689 | 007742 | 14 | 25 | |
| Accessories | ||||||
| 7788 | Parallel Arm Drop Plate | 689 | 007000 | 4 | 10 | |
| 7786 | Regular Arm Drop Plate | 689 | 006996 | 4 | 16 | |
^ Sex nuts included.
QUICK SHIP WEST
8500 SERIES – ARCHITECTURAL DOOR CLOSERS
Tri-Style® Packaging, Case Qty. 4
| Model # | Description | Finish | Quick Ship # |
Approx. Weight
(Each) lbs. |
Maximum
Quantity |
||||
|---|---|---|---|---|---|---|---|---|---|
| 8501 - Full Cover | |||||||||
| Non-Hold Open | |||||||||
| 8501 x SN^ | Multi-Size 1-6 | 689 | 008979 | 8 | 50 | ||||
| 8501 x SN^ | Multi-Size 1-6 | 690 | 008977 | 8 | 50 | ||||
| 8501DA x SN^ |
Multi-Size 1-6, Delayed
Action |
689 | 015708 | 8 | 25 | ||||
| Hold Open | |||||||||
| 8501H x SN^ | Multi-Size 1-6 | 690 | 015709 | 10 | 25 | ||||
| 8501H x SN^ | Multi-Size 1-6 | 689 | 008978 | 10 | 25 | ||||
| CloserPlus® | |||||||||
| Non-Hold Open | |||||||||
| CLP8501^ | Multi-Size 1-6 | 689 | 009258 | 9 | 25 | ||||
| Accessories | |||||||||
| 8146 | Regular Arm Drop Plate | 689 | 009096 | 4 | 10 | ||||
| 8148 | Parallel Arm Drop Plate | 689 | 009099 | 4 | 10 | ||||
| 8148 | Parallel Arm Drop Plate | 690 | 015707 | 4 | 25 | ||||
^ Sex nuts included.
1601 SERIES – ALUMINUM STOREFRONT DOOR CLOSERS
Tri-Style® Packaging, Case Qty. 6
| Model # | Description | Finish | Quick Ship # |
Approx. Weight
(Each) lbs. |
Maximum
Quantity |
||||
|---|---|---|---|---|---|---|---|---|---|
| Non-Hold Open | |||||||||
| 1601 x SN^ | Multi-Size 1-6 | 689 | 008147 | 7 | 50 | ||||
| 1601 x SN^ | Multi-Size 1-6 | 690 | 015700 | 7 | 25 | ||||
| Hold Open | |||||||||
| 1601H x SN^ | Multi-Size 1-6 | 689 | 015701 | 9 | 25 | ||||
410 SERIES – CAST IRON DOOR CLOSERS
Tri-Style® Packaging, Case Qty. 3
| Model # | Description | Finish | Quick Ship # |
Approx. Weight
(Each) lbs. |
Maximum
Quantity |
|---|---|---|---|---|---|
| Non-Hold Open | |||||
| 410 x TPN^ | Multi-Size 1-6 | 689 | 015240 | 13 | 25 |
| 410 x TPN^ | Multi-Size 1-6 | 690 | 015241 | 13 | 25 |
210 SERIES – ARCHITECTURAL DOOR CLOSERS
Tri-Style® Packaging, Case Qty. 4
| Model # | Description | Finish | Quick Ship # |
Approx. Weight
(Each) lbs. |
Maximum
Quantity |
|---|---|---|---|---|---|
| Non-Hold Open | |||||
| 210 x TPN^ | Multi-Size 1-6 | 689 | 015000 | 8.5 | 25 |
| 210 x TPN^ | Multi-Size 1-6 | 690 | 015001 | 8.5 | 25 |
^ Sex nuts included.
160 SERIES – ALUMINUM STOREFRONT DOOR CLOSERS
Tri-Style® Packaging, Case Qty. 6
| Model # | Description |
Finish
Quick Ship # |
Approx.
Weight (Each) lbs. |
Maximum
Quantity |
|
|---|---|---|---|---|---|
| Non-Hold Open | |||||
| 161BF x TPN^ | Multi-Size 1-4 | 689 | 015044 | 7 | 25 |
| 161BF x TPN^ | Multi-Size 1-4 | 690 | 015045 | 7 | 25 |
SCREW PACKS
| Model # | Description | Finish | Quick Ship # |
Approx.
Weight (Each) lbs. |
Maximum
Quantity |
|---|---|---|---|---|---|
| SN-134 | Sex Nuts Package , 1-3/4" Door | 689 | 007210 | 0.2 | 25 |
5700 SERIES - LOW ENERGY OPERATOR
| Model # | Description | Finish | Quick Ship # |
Approx.
Weight (Each) lbs. |
Maximum
Quantity |
|---|---|---|---|---|---|
| Operator | |||||
| 5740 | Push & pull arms included | 689 | 015391 | 30 | 5 |
| Accessories | |||||
| 505 | Door Switch, 6", Hardwired | N/A | 015702 | 1.1 | 5 |
| 539 | Radio Frequency Receiver | N/A | 015703 | 0.6 | 30 |
| 548 | Radio Frequency Receiver - 9V | N/A | 015704 | 0.3 | 15 |
| 555 |
6" Square Surface Mount Box
(for 505, 507) |
N/A | 015705 | 1.8 | 20 |
^ Sex nuts included

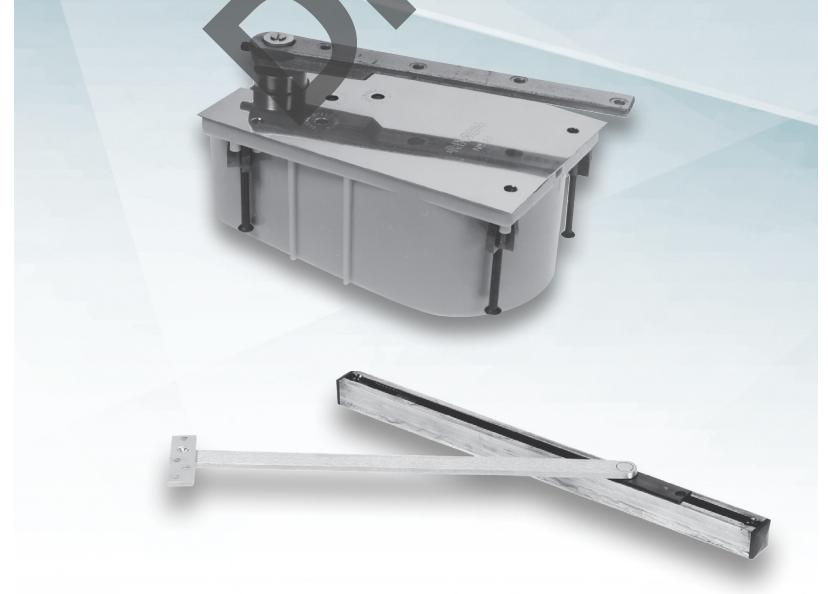

27 FLOOR CLOSERS
| Model # | Description | Finish |
Quick Ship
# |
Approx.
Weight (Each) lbs. |
Maximum
Quantity |
||
|---|---|---|---|---|---|---|---|
| 27 Series Offset Hung, (includes closer, cement case, top pivot and cover plate | |||||||
| 27105S | 105° Selective Hold Open | RH | 626 | 015426 | 28 | 2 | |
| 27105S | 105° Selective Hold Open | LH | 626 | 015425 | 28 | 2 | |
| 2790S | 90° Selective Hold Open | RH | 626 | 009777 | 28 | 2 | |
| 2790S | 90° Selective Hold Open | LH | 626 | 009778 | 28 | 2 | |
28 FLOOR CLOSERS
| Model # | Description | Hand Finish |
Quick Ship
# |
Approx.
Weight (Each) lbs. |
Maximum
Quantity |
||
|---|---|---|---|---|---|---|---|
| 28 Series Center Hung, Single Acting (includes closer, cement case, top pivot and cover plate) | |||||||
| PH2890S |
Physically Handicapped, 90° Selective
Hold Open |
RH | 626 | 015408 | 28 | 10 | |
| PH2890S |
Physically Handicapped, 90° Selective
Hold Open |
LH | 626 | 015409 | 28 | 10 | |
| 28105S | 90° Selective Hold Open | RH | 626 | 015411 | 28 | 10 | |
| 28105S | 90° Selective Hold Open | LH | 626 | 015410 | 28 | 10 | |
| 28 Series Center Hung, Less All Parts (closer body only) | |||||||
| 2890S | 90° Selective Hold Open LAP | RH | N/A | 009940 | 20 | 10 | |
| 2890S | 90° Selective Hold Open LAP | LH | N/A | 009941 | 20 | 10 | |
| 28105S | 105° Selective Hold Open LAP | RH | N/A | 009955 | 20 | 10 | |
| 28105S | 105° Selective Hold Open LAP | LH | N/A | 009956 | 20 | 10 | |
FLOOR CLOSER PARTS
| Model # | Description | Finish |
Quick Ship
# |
Approx.
Weight (Each) lbs. |
Maximum
Quantity |
|
|---|---|---|---|---|---|---|
| 27 & 28 Parts and Accessories | ||||||
| 282026 | 28 Arm Package | N/A | 629 | 015402 | 3 | 10 |
| 282554 | 28 554 Arm Package | N/A | N/A | 015406 | 3 | 10 |
| 253000 | Cement Case (27 & 28 Closers) | N/A | N/A | 009787 | 1 | 20 |
| 284720R626 | 28 Floor Plate Pkg. (SHO) | RH | 626 | 009863 | 1 | 20 |
| 284720L626 | 28 Floor Plate Pkg. (SHO) | LH | 626 | 009864 | 1 | 20 |
CHECKMATE® STOPS
| Model # | Description | Finish | Quick Ship # |
Approx. Weight
(Each) lbs. |
Maximum
Quantity |
|||
|---|---|---|---|---|---|---|---|---|
| Checkmate® Stops and Holders | ||||||||
| 1-236 | HD Concealed Stop | 630 | 015407 | 5 | 5 | |||
PIVOTS
| Model # | Description | Hand | Finish | Quick Ship # |
Approx. Weight
(Each) lbs. |
Maximum
Quantity |
|---|---|---|---|---|---|---|
| 3/4" Offset Pivot Sets (Includes Top Pivot) | ||||||
| 117 | Regular | RH | 626 | 009800 | 3 | 5 |
| 117 | Regular | LH | 626 | 009801 | 3 | 12 |
| 147 | Regular | RH | 626 | 009813 | 2 | 12 |
| 147 | Regular | LH | 626 | 009814 | 2 | 5 |
| L147 | Heavy-Duty 1-3/4" Door | RH | 626 | 009823 | 5 | 8 |
| L147 | Heavy-Duty 1-3/4" Door | LH | 626 | 009824 | 5 | 5 |
| 195 | Regular | RH | 626 | 009826 | 3 | 5 |
| 195 | Regular | LH | 626 | 009827 | 3 | 5 |
| Center Hung Pivot Sets (Includes Top Pivot) | ||||||
| 127-3/4 | Medium Duty | N/A | 626 | 009799 | 2 | 12 |
| 128-3/4 | Medium Duty | N/A | 626 | 009829 | 2 | 5 |
| 128-3/4 | Medium Duty | N/A | 625 | 009796 | 2 | 12 |
| 370 | Heavy Duty | N/A | 626 | 009831 | 3 | 35 |
| 370 | Heavy Duty | N/A | 613 | 015403 | 3 | 5 |
| Top Pivots | ||||||
| 340 | Center Hung | N/A | 626 | 009945 | 2 | 5 |
| H340 |
Heavy-Duty Center
Hung |
N/A | 626 | 015400 | 3 | 20 |
| H345 |
Heavy-Duty Center
Hung |
N/A | 626 | 015401 | 3 | 2 |
| 345 | Center Hung | N/A | 626 | 015404 | 2 | 2 |
| 180 | Offset | N/A | 626 | 009946 | 1 | 8 |
| H180 | Heavy-Duty, Offset | N/A | 626 | 015405 | 2 | 5 |
| Intermediate Pivots | ||||||
| M19 | Regular | RH | 626 | 009839 | 2 | 5 |
| M19 | Regular | LH | 626 | 009840 | 2 | 6 |
| ML19 | Heavy-Duty 1-3/4" Door | RH | 626 | 009855 | 2 | 5 |
| ML19 | Heavy-Duty 1-3/4" Door | LH | 626 | 009856 | 2 | 5 |
ELECTROMAGNETIC DOOR HOLDER/RELEASES
| Model # | Description | Finish |
Quick Ship
# |
Approx. Weight
(Each) lbs. |
Maximum
Quantity |
||||
|---|---|---|---|---|---|---|---|---|---|
| Triple Voltage Door Holders (12vDC. 24vAC/DC and 120vAC) | |||||||||
| 994M |
Adjustable Short Armature Concealed
Wiring |
689 | 009997 | 2 | 5 | ||||
| 996M | Surface Wired | 689 | 009932 | 2 | 5 | ||||
| 997M | Short Armature Concealed Wiring | 689 | 009933 | 2 | 5 | ||||
| 998M | Long Armature Concealed Wiring | 689 | 009934 | 2 | 5 | ||||
| 998M | Long Armature Concealed Wiring | 690 | 009935 | 2 | 15 | ||||
| Parts and Accessories | |||||||||
| 996369 | 996 Magnet/Bracket Assembly | N/A | 009937 | 1 | 5 | ||||
| 998369 | 997/998 Magnet/Bracket Assembly | N/A | 009938 | 1 | 5 | ||||
| 997510-A | Short Armature Housing Assembly | 689 | 009904 | 0.2 | 5 | ||||
| 998512-A | Long Armature Housing Assembly | 689 | 009905 | 0.4 | 5 | ||||
| 996XK | Wall Portion Extension (1-1/2") | 689 | 009906 | 1 | 5 | ||||
| Armature Extensions | |||||||||
| 900 | Base Unit | 689 | 009733 | 0.1 | 5 | ||||
| 900-50 | *1/2" Spacer | 689 | 009736 | 0.1 | 5 | ||||
| 900-75 | *3/4" Spacer | 689 | 009735 | 0.1 | 5 | ||||
| 900-100 | *1" Spacer | 689 | 009734 | 0.1 | 5 | ||||
| 900Z | *Armature Extension 90° Bend (1-1/2") | 689 | 009732 | 0.1 | 5 | ||||
* Extension spacers and bend spacer must be used with 900 base unit armature extension
QUICK SHIP ORDER FORM
| Account # | P.O.# | P.O. Date | |||||
| Buying Program | CPQ # | ||||||
| Company Name: | Ship To: | ||||||
| Address: | Address: | ||||||
| City: | State: | Zip: | City: | State: | Zip: | ||
| Buyer: | Attn: | ||||||
| Contact Person: | |||||||
| Phone #: | Ship Via: | ||||||
| Fax #: | Markings: | ||||||
| Qty. | Quick Ship # | Description | Comments | ||||
Since 1880, Norton Rixson door controls have been an integral part of schools, hospitals and businesses around the globe. When you need products and people that perform at the highest level, rely on Norton Rixson – From Open to Close.
NORTON RIXSON | WWW.NORTONRIXSON.COM
3000 Highway 74 East | Monroe, NC 28112 | Tel: 1 877 974 2255
ASSA ABLOY OPENING SOLUTIONS DOOR SECURITY SOLUTIONS CANADA | www.assaabloydss.ca
160 Four Valley Drive | Vaughan, Ontario, L4K 4T9 Canada | Tel: 800 461 3007
