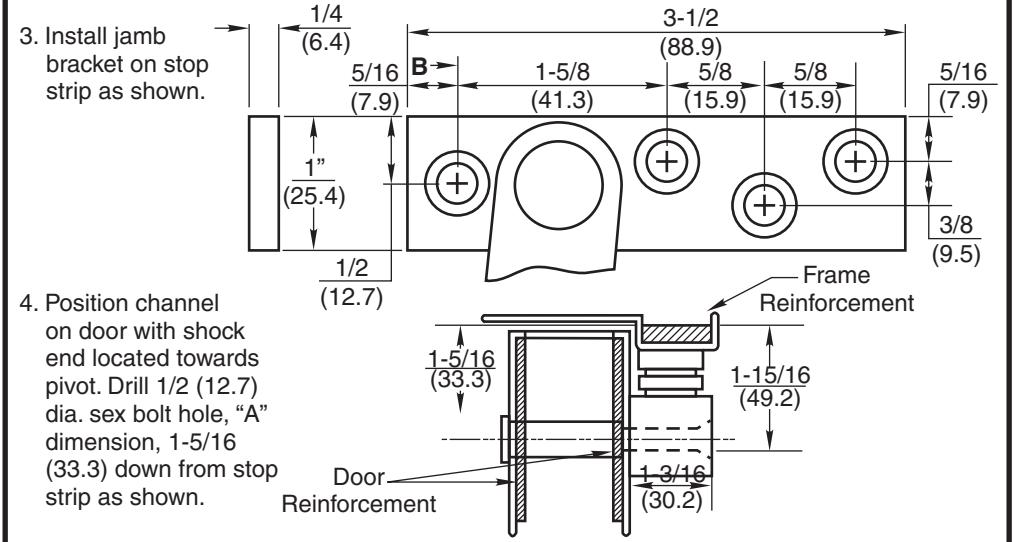

5. Install channel on door with "A" dimension sex bolt. Locate "C" dimension sex bolt hole making sure that channel is horizontal and parallel with stop strip. Drill 1/2 (12.7) dia. sex bolt hole and finish installing holder.

INSTALLATION INSTRUCTIONS

• 1. Select and determine degree of dead stop from chart on back side of page.

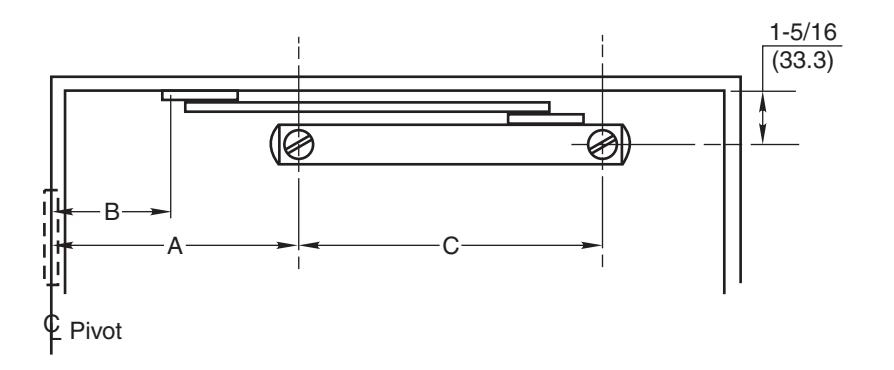

• 2. Locate "A" and "B" dimensions on door and frame.

Notes:

• All hollow metal frames should be properly reinforced with 3/16" (4.8) min. thickness x 12" (304.8) min. length reinforcement plates.
• All hollow metal doors should be reinforced with 2-1/2" (63.5) wide x 3/16" (4.8) min. thick x full width of door reinforcement plates.
• All drilling and tapping to be done by field men.
• Suggest mounting door stop or holder first and then other hardware to clear. Contact factory if interference results with other hardware.
• Left hand shown right hand opposite. (Note hole pattern in jamb bracket.)
• All dimensions are given in inches (mm).

Caution:

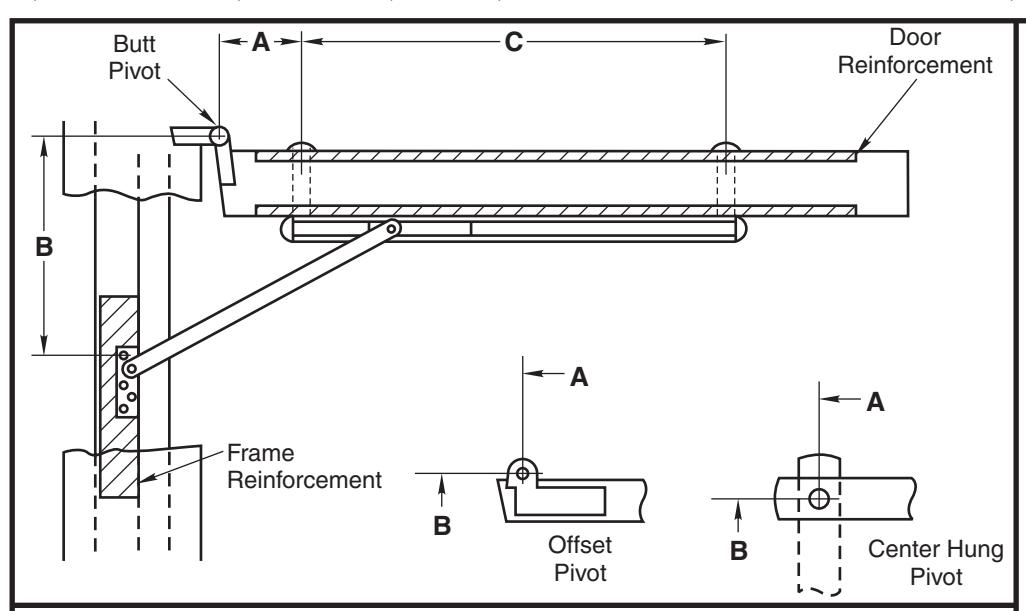

Note location of swing clear hinge centerline to determine "A" and "B" dimensions.

	Screw Details
	Jamb	Door
	#1/4-20 x 3/4" FHMS	5/16-18 x 2" FHMS
١	or	and
۱	#14 x 1-1/2" FHWS	1/2" Dia. Sex Bolt
	(4 Places)	(2 Places)

No. 9 Series Surface Mounted Door Stops Less Spring

RIXSON ASSA ABLOY

TEMPLATE NUMBER OH80064A|1 of 2

3 01/22

Approved 2022-05-02

NortonRixson.com

No. 9 Series Surface Mounted Door Stops Less Spring

• 1. See other side for installation instructions.
• 2. Select proper dimensions noted below.
• 3. All drilling and tapping to be done in field.
• 4. All dimensions given in inches.

Metric = decimal (numerator divided by denominator) x 25.4.

Reversible, non-handed.

These units are dead stop only.

	Device Number	Degree	85°		90°		95°		100°		105°		110°
	Stop	Door Opening	Α	В	Α	В	Α	В	Α	В	A	В	A	В	С
1-3/4-2-1/4 Butts	9-136	24 - 28	6-1/4	4-3/4	5-7/8	4-3/8	5-9/16	4-1/16	5-5/16	3-13/16	_	_	_	_	15-15/16
& 3/4 Offset	9-236	28-1/16 - 33	8-1/8	5-7/8	7-11/16	5-7/16	7-3/8	5-1/8	7-1/16	4-13/16	6-3/4	4-1/2	6-9/16	4-5/16	17-3/16
Pivot	9-336	33-1/16 - 38	11-3/4	7-1/4	11-1/4	6-3/4	10-3/16	6-5/16	10-7/16	5-15/16	10-1/4	5-5/8	9-7/8	5-3/8	18-11/16
	9-436	38-1/16 - 43	14-11/16	9-1/8	14-1/8	8-1/2	13-5/8	8	13-3/16	7-9/16	12-13/16	7-3/16	12-1/2	6-7/8	20-13/16
	9-536	43-1/16 - 48	18-1/4	10-3/8	17-5/8	9-3/4	17	9-1/8	16-1/2	8-5/8	16-1/16	8-3/16	15-11/16	7-13/16	22-5/16

NOTE: A and B dimensions measured from centerline of pivot, not edge of door.

	Device Number	Degree	85°		90°		95°		100°		105°		110°
	Stop	Door Opening	Α	В	Α	В	Α	В	Α	В	Α	В	A	В	С
1-3/4-2-1/4	9-136	25-1/2 - 30	7-1/16	5-9/16	5-13/16	4-15/16	5-9/16	4-11/16	5-5/16	3-3/16	_	_	_	_	15-15/16
Center Hung	9-236	30-1/16 - 36	8-7/8	6-1/2	7-1/2	5-3/4	7-3/16	5-7/16	7-1/8	4-13/16	6-3/4	4-1/2	6-9/16	4-5/16	17-3/16
	9-336	36-1/16 - 41	12-1/2	8	10-15/16	7-1/16	10-9/16	6-11/16	10-7/16	5-15/16	10-1/8	5-5/8	9-7/8	5-3/8	18-11/16
	9-436	41-1/16 - 46	15-3/8	9-3/4	13-11/16	8-11/16	13-3/16	8-3/16	13-3/16	7-9/16	12-11/16	7-3/16	12-1/2	6-7/8	20-13/16
	9-536	46-1/16 - 50	17-11/16	11-3/16	17-1/8	9-7/8	16-5/8	9-3/8	16-1/2	8-5/8	16-1/16	8-3/16	15-11/16	7-13/16	22-5/16

No. 9 Series Surface Mounted Door Stops Less Spring

TEMPLATE NUMBER

REV DATE OH80064B|2 of 2| 3 |01/22

Approved 2022-05-02
