INSTALLATION INSTRUCTIONS
- 1. Determine the device number for the door opening. Then select proper dimensions from chart on OH80090B.

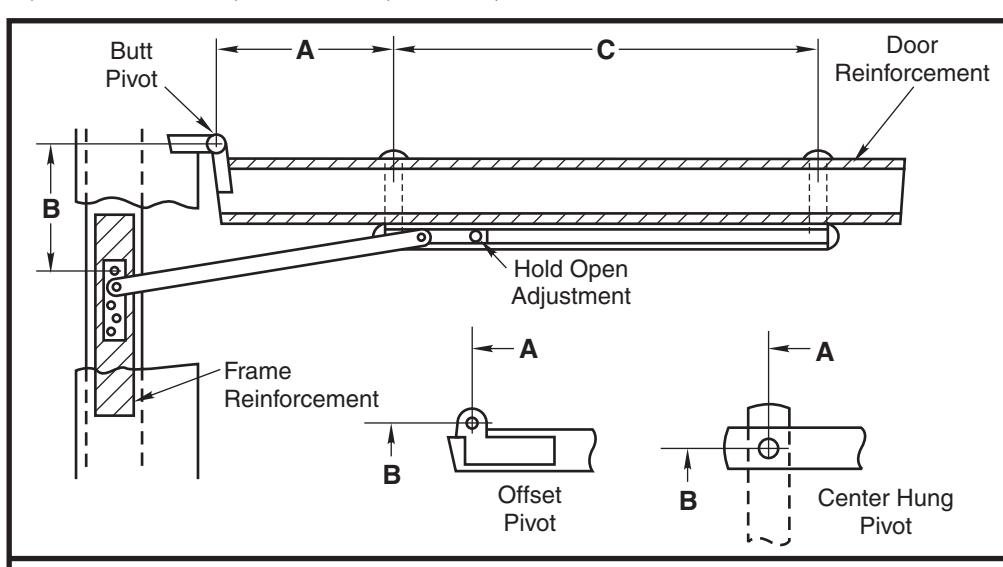

- 2. Locate "A" and "B" dimensions on door and frame.

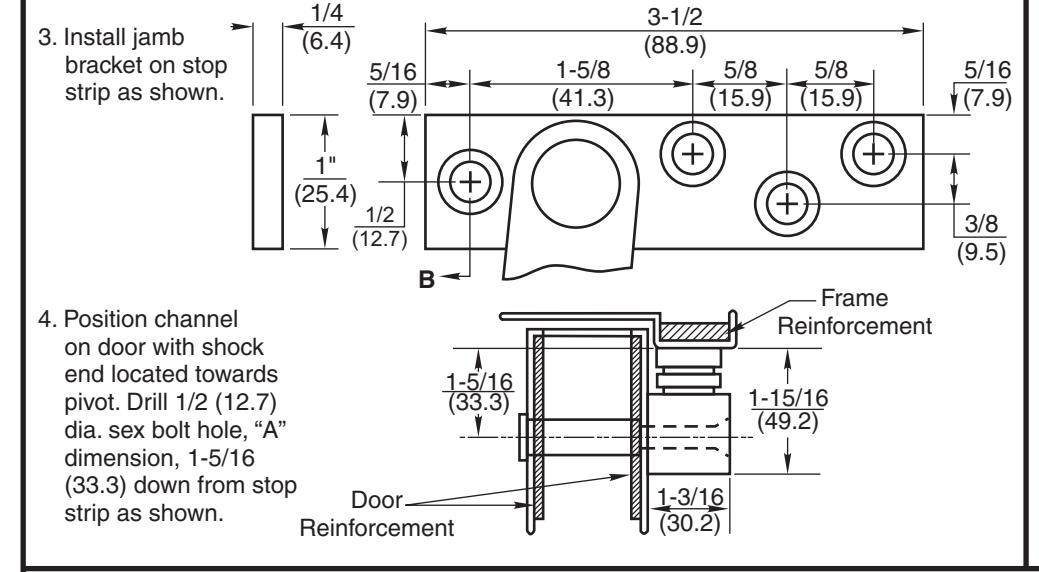

5. Install channel on door with "A" dimension sex bolt. Locate "C" dimension sex bolt hole making sure that channel is horizontal and parallel with stop strip. Drill 1/2 (12.7) dia. sex bolt hole and finish installing holder.
Notes:
- All hollow metal frames should be properly reinforced with 3/16" (4.8) min. thickness x 12" (304.8) min. length reinforcement plates.
- All hollow metal doors should be properly reinforced with 2-1/2" (63.5) wide x 3/16" (4.8) min. thick x full width of door reinforcement plates.
- All drilling and tapping to be done by field men.
- Suggest mounting door stop or holder first and then other hardware to clear. Contact factory if interference results with other hardware.
- Left hand shown right hand opposite. (Note hole pattern in jamb bracket).
- All dimensions are given in inches (mm).
Caution:
Note location of swing clear hinge centerline to determine "A" and "B" dimensions.
| Screw Details | |||||
|---|---|---|---|---|---|
| Jamb | Door | ||||
| #1/4-20 x 3/4" FHMS | 5/16-18 x 2" FHMS | ||||
| or | and | ||||
| #14 x 1-1/2" FHWS | 1/2" Dia. Sex Bolt | ||||
| (4 Places) | (2 Places) | ||||
No. 9 ADJ Surface Mounted Door Stops and Holders
RIXSON ASSA ABLOY
TEMPLATE NUMBER OH80090A 1 of 2
3 01/22
Approved 2022-05-02
No. 9 Series Surface Mounted Door Stops and Holders
- 1. See OH80090A for installation instructions.
- 2. Select proper dimensions noted below.
- 3. All drilling and tapping to be done in field.
- 4. All dimensions given in inches (mm).
|
1-3/4 - 2-1/4
Butts & 3/4 Offset Pivot |
Device
Number |
Degree | |||||
|---|---|---|---|---|---|---|---|
| H.O. | Stop |
Door
Opening |
Α | В | С |
Max
Opening |
|
| 9ADJ-126 | 9ADJ-136 |
24 - 28
(610 - 711) |
3-5/16
(84) |
3-13/16
(97) |
1
5-15/1
6
(405) |
100° | |
| 9ADJ-226 | 9ADJ-236 |
28-1/16 - 33
(713 - 838) |
4-9/16
(116) |
4-5/16 (110) |
17-3/16
(437) |
110° | |
| 9ADJ-326 | 9ADJ-336 |
33-1/16 - 38
(840 - 965) |
7-7/8
(200) |
5-3/8 (137) |
1
8-11/1
6
(475) |
110° | |
| 9ADJ-426 | 9ADJ-436 |
38-1/16 - 43
(967 - 1092) |
10-1/2
(267) |
6-7/8
(175) |
2
0-13/1
6
(529) |
110° | |
| 9ADJ-526 | 9ADJ-536 |
4
3-1/16 - 48
(1094 - 1219) |
1
3-11/16
(348) |
7-13/16
(198) |
22-5/16
(567) |
110° | |

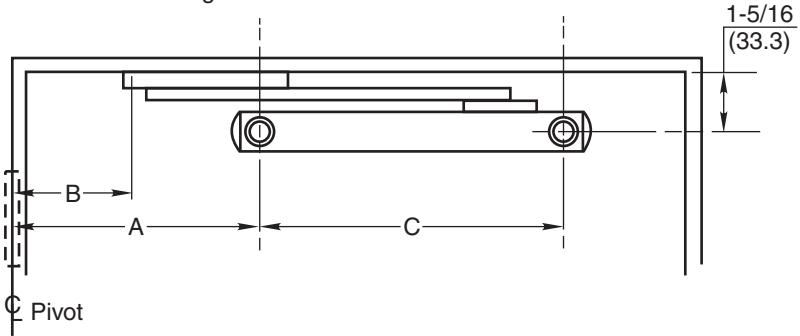

NOTE: A and B dimensions measured from centerline of pivot, not edge of door.
|
1-3/4 - 2-1/4
Center Hung |
Device
Number |
Degree | |||||
|---|---|---|---|---|---|---|---|
| н.о. | Stop |
Door
Opening |
Α | В | С |
Max
Opening |
|
| 9ADJ-126 | 9ADJ-136 |
25-1/2 - 30
(648 - 762) |
3-11/16
(94) |
4-3/16
(106) |
1
5-15/1
6
(405) |
110° | |
| 9ADJ-226 | 9ADJ-236 |
30-1/16 - 36
(764 - 914) |
5-5/16
(135) |
4-15/16
(125) |
17-3/16
(437) |
110° | |
| 9ADJ-326 | 9ADJ-336 |
3
6-1/16 - 4
1
(916 - 1041) |
8-9/16
(217) |
6-1/16
(154) |
1
8-11/1
6
(475) |
110° | |
| 9ADJ-426 | 9ADJ-436 |
4
1-1/16 - 4
6
(1043 - 1168) |
11-1/8
(283) |
7-1/2
(191) |
2
0-13/1
6
(529) |
110° | |
| 9ADJ-526 | 9ADJ-536 |
4
6-1/16 - 5
0
(1170 - 1270) |
14-3/8
(365) |
8-1/2
(216) |
2
2-5/16
(567) |
110° | |
Reversible, non-handed.

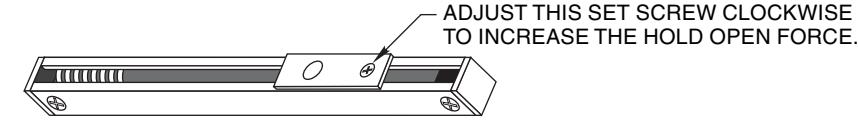

TO SELECT DEGREE OF STOP
- 1. With a screwdriver, loosen the Set Screw in the Slide Block.
- 2. Open door to desired degree of opening.
- 3. Move Slide Block and Spring until the Spring touches Slide Cam.
- 4. Tighten Set Screw.
- 5. Verify door opening position and re-adjust, as needed.
No. 9 ADJ Surface Mounted Door Stops and Holders
NORTON RIXSON ASSA ABLOY
TEMPLATE NUMBER
SHEET
REV DATE
OH80090B 2 of 2 3 01/2
