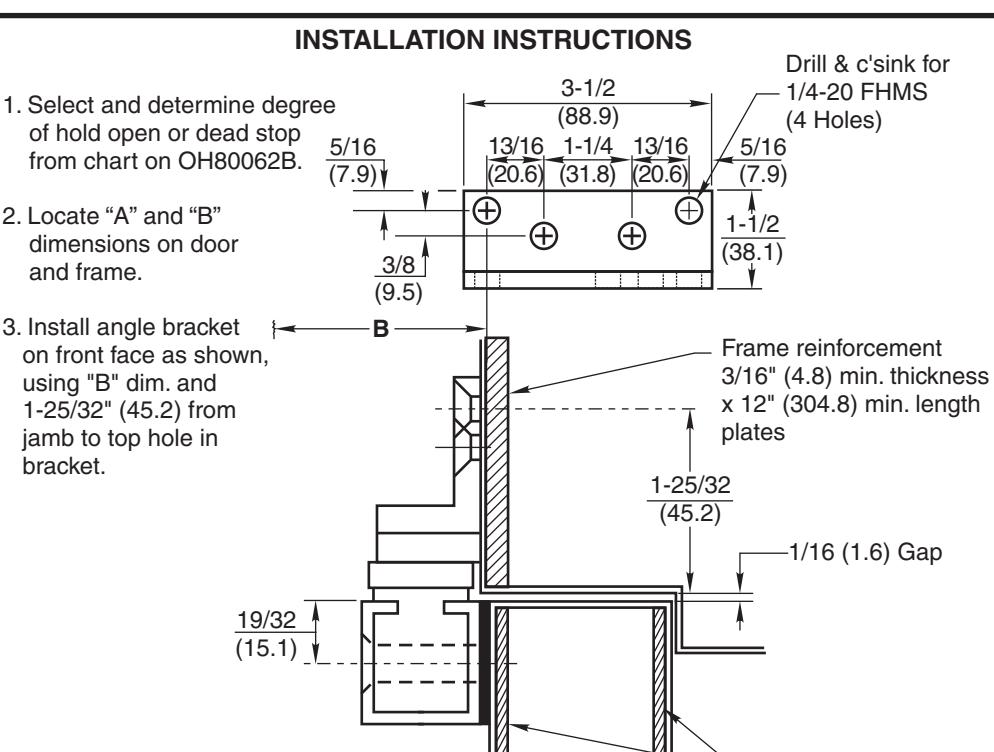

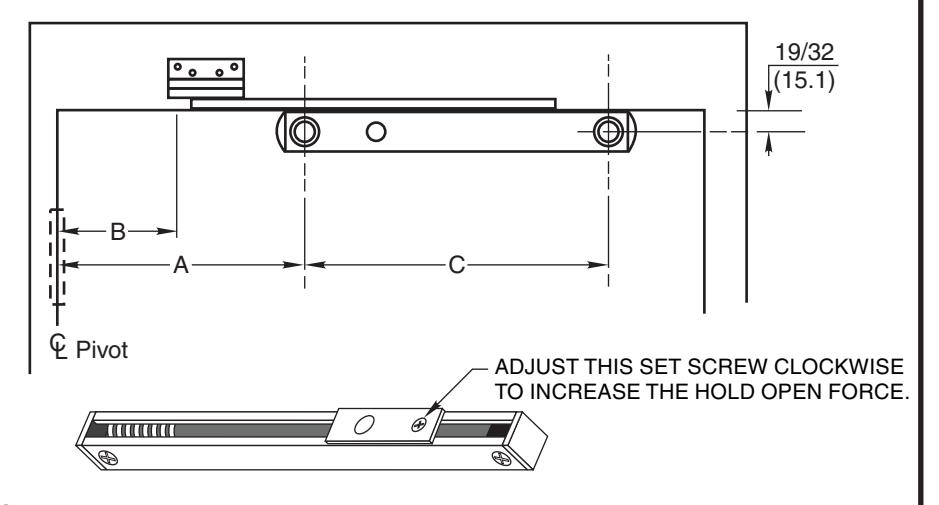

4. Install channel on door with "A" dimension and 19/32 (15.1) from top of door. Locate "C" dimension sex bolt hole making sure that channel is horizontal and parallel with top edge of door. Drill 1/2 (12.7) dia. sex bolt hole and finish installing holder. Install control knob on channel as shown. Install jamb bracket to angle bracket.
Notes:
- All hollow metal frames should be properly reinforced with 3/16" (4.8) min. thickness x 12" (304.8) min. length reinforcement plates.
- All hollow metal doors should be properly reinforced with 2-1/2" (63.5) wide x 3/16" (4.8) min. thick x full width of door reinforcement plates.
- All drilling and tapping to be done by field men.
- Suggest mounting door stop or holder first and then other hardware to clear. Contact factory if interference results with other hardware.
- Left hand shown right hand opposite. (Note hole pattern in jamb bracket).
- All dimensions are given in inches (mm).
Caution:
Note location of swing clear hinge centerline to determine "A" and "B" dimensions.
| Screw Details | ||||||
|---|---|---|---|---|---|---|
| Jamb | Door | |||||
| #1/4-20 x 3/4" FHMS | 5/16-18 x 2" FHMS | |||||
| or | and | |||||
| #14 x 1-1/2" FHWS | 1/2" Dia. Sex Bolt | |||||
| (4 Places) | (2 Places) | |||||

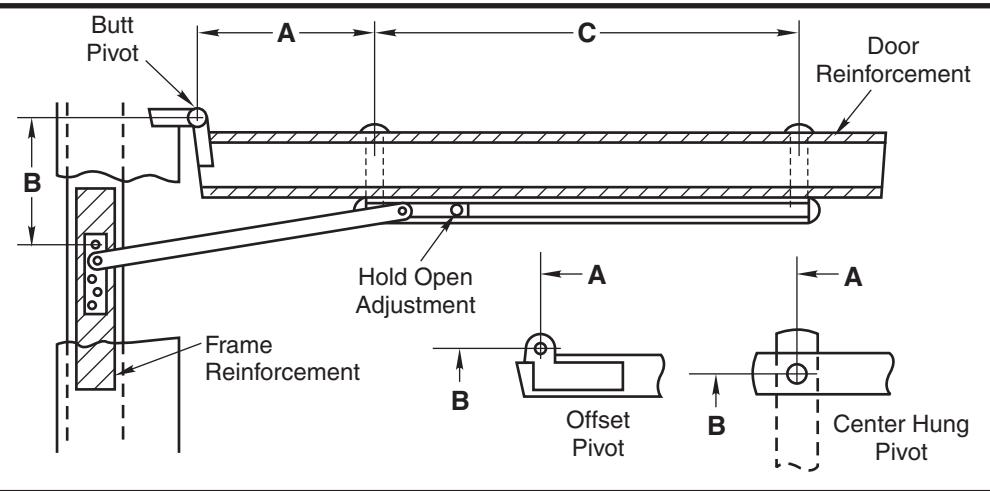

No. 9 ADJ Angle Bracket Surface Mounted On Pull Side of Door Door Stops and Holders
ASSA ABLOY
TEMPLATE NUMBER SHEET RIOH80092A 1 of 2
f 2 3 01/22
Approved 2022-05-02
Door Reinforcements
No. 9 Series Surface Mounted Door Stops and Holders
- 1. See OH80090A for installation instructions.
- 2. Select proper dimensions noted below.
- 3. All drilling and tapping to be done in field.
- 4. All dimensions given in inches (mm).
Reversible, non-handed.
|
Device
Number |
Degree | |||||||
|---|---|---|---|---|---|---|---|---|
| H.O. | Stop | Multi |
Door
Opening |
Α | В | С |
Max
Opening |
|
|
1-3/4 - 2-1/4
Butts |
9ADJ-126 | 9ADJ-136 | 9ADJ-146 |
24 - 28
(610 - 711) |
3-1/4
(83) |
3-13/16
(97) |
1
5-15/1
6
(405) |
100° |
|
&
3/4 Offset |
9ADJ-226 | 9ADJ-236 | 9ADJ-246 |
28-1/16 - 33
(713 - 838) |
6-1/2
(165) |
4-5/16
(110) |
17-3/16
(437) |
110° |
| Pivot | 9ADJ-326 | 9ADJ-336 | 9ADJ-346 |
33-1/16 - 38
(840 - 965) |
9-13/16
(249) |
5-3/8 (137) |
1
8-11/1
6
(475) |
110° |
| 9ADJ-426 | 9ADJ-436 | 9ADJ-446 |
38-1/16 - 43
(967 - 1092) |
12-7/16
(316) |
6-7/8
(175) |
2
0-13/1
6
(529) |
110° | |
| 9ADJ-526 | 9ADJ-536 | 9ADJ-546 |
4
3-1/16 - 48
(1094 - 1219) |
15-5/8
(397) |
7-13/16
(198) |
22-5/16
(567) |
110° | |
NOTE: A and B dimensions measured from centerline of pivot, not edge of door.
|
Device
Number |
Degree | |||||||
|---|---|---|---|---|---|---|---|---|
| Н.О. | Stop | Multi |
Door
Opening |
Α | В | С |
Max
Opening |
|
| 1-3/4 - 2-3/4 | 9ADJ-126 | 9ADJ-136 | 9ADJ-146 |
25-1/2 - 30
(648 - 762) |
5-1/16 (129) |
4-3/16
(106) |
1
5-15/1
6
(405) |
110° |
|
Center
Hung |
9ADJ-226 | 9ADJ-236 | 9ADJ-246 |
30-1/16 - 36
(764 - 914) |
6-11/16
(170) |
4-15/16
(125) |
17-3/16
(437) |
110° |
| 9ADJ-326 | 9ADJ-336 | 9ADJ-346 |
36-1/16 - 41
(916 - 1041) |
9-15/16
(252) |
6-1/16
(154) |
1
8-11/1
6
(475) |
110° | |
| 9ADJ-426 | 9ADJ-436 | 9ADJ-446 |
41-1/16 - 46
(1043 - 1168) |
12-1/2
(318) |
7-1/2
(191) |
2
0-13/1
6
(529) |
110° | |
| 9ADJ-526 | 9ADJ-536 | 9ADJ-546 |
4
6-1/16 - 50
(1170 - 1270) |
15-3/4
(400) |
8-1/2
(216) |
2
2-5/16
(567) |
110° | |
TO SELECT DEGREE OF STOP
- 1. With a screwdriver, loosen the Set Screw in the Slide Block.
- 2. Open door to desired degree of opening.
- 3. Move Slide Block and Spring until the Spring touches Slide Cam.
- 4. Tighten Set Screw.
- 5. Verify door opening position and re-adjust, as needed.
No. 9 ADJ Angle Bracket Surface Mounted On Pull Side of Door Door Stops and Holders
RIXSON ASSA ABLOY
TEMPLATE NUMBER
OH80092B 2 of 2
