| Screw Details | ||||||||
|---|---|---|---|---|---|---|---|---|
| Qty. | Wood | Metal | ||||||

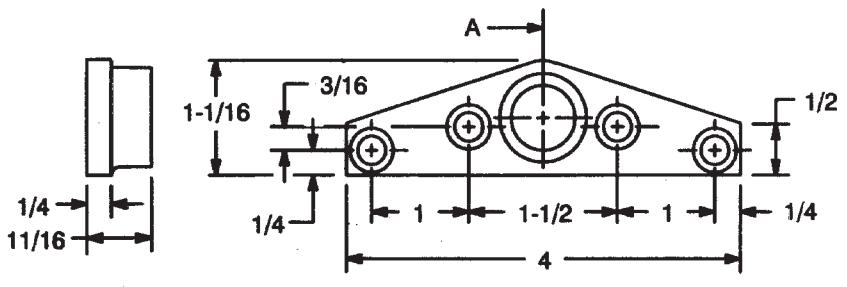

| Jamb | 4 | #12 x 1-1/2" FHWS | #12-24 x 5/8" FHMS | |||||

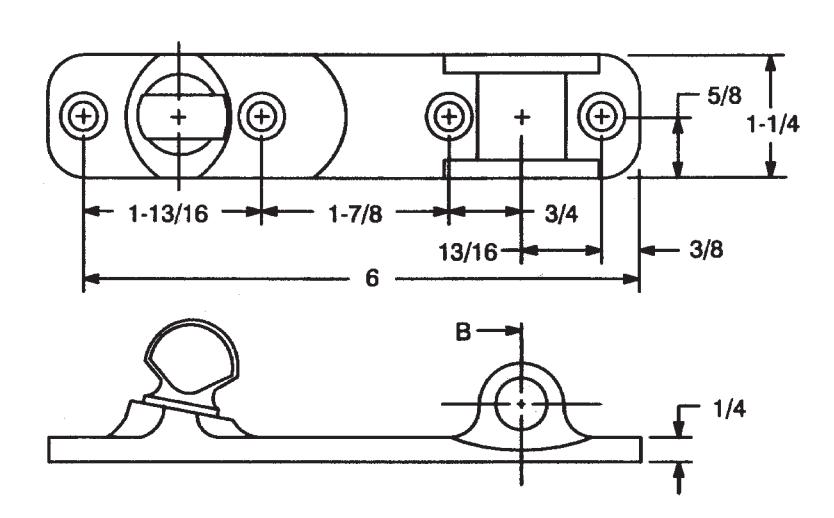

| Door | 4 | #12-24 x 2-1/4" FHMS Washer and Acorn Nut | ||||||
No. 7 Series Concealed Door Stops & Holders
NORTON RIXSON
OH80030A 1 of 2 TEMPLATE NUMBER REV
SHEET
3 DATE 01/22
No. 7 Series Surface Mounted Door Stops and Holders
- 1. See other side for installation instructions.
- 2. Select proper dimensions noted below.
- 3. All drilling and tapping to be done by field men.
- 4. All dimensions given in inches.
For single acting doors only. Reversible, non-handed.
|
Door
Opening |
Holder and Stop |
Size of
Holder |

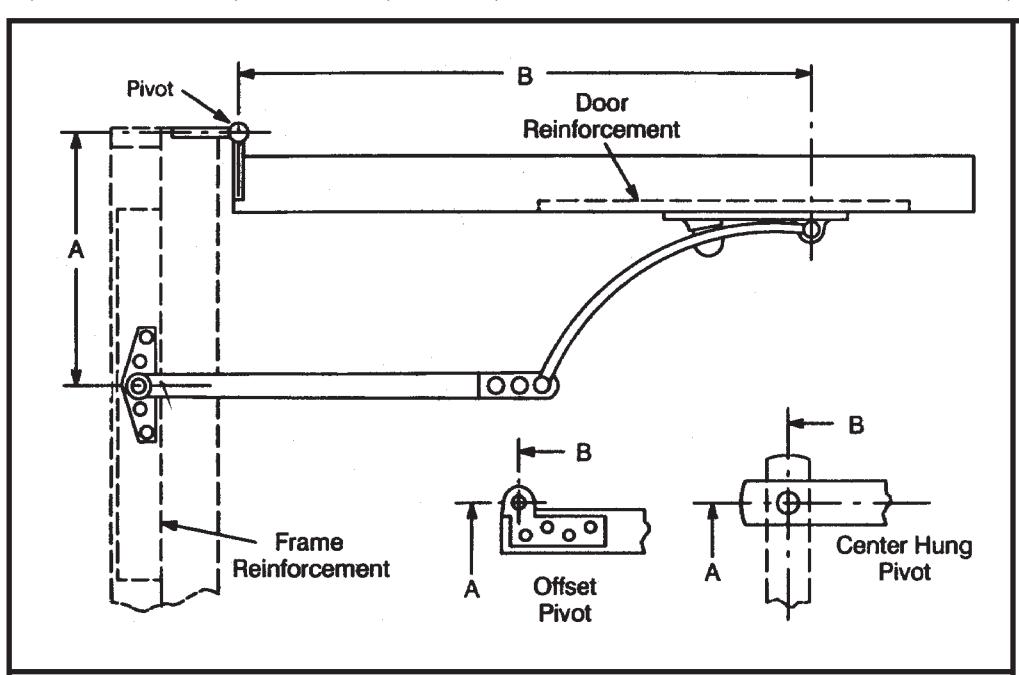

3/4" Offset Pivot | Center Hung | Doubt Home | ||
|---|---|---|---|---|---|---|---|
| Α | В | Α | В | Butt Hung | |||
| Under 24 | Spec. | ||||||

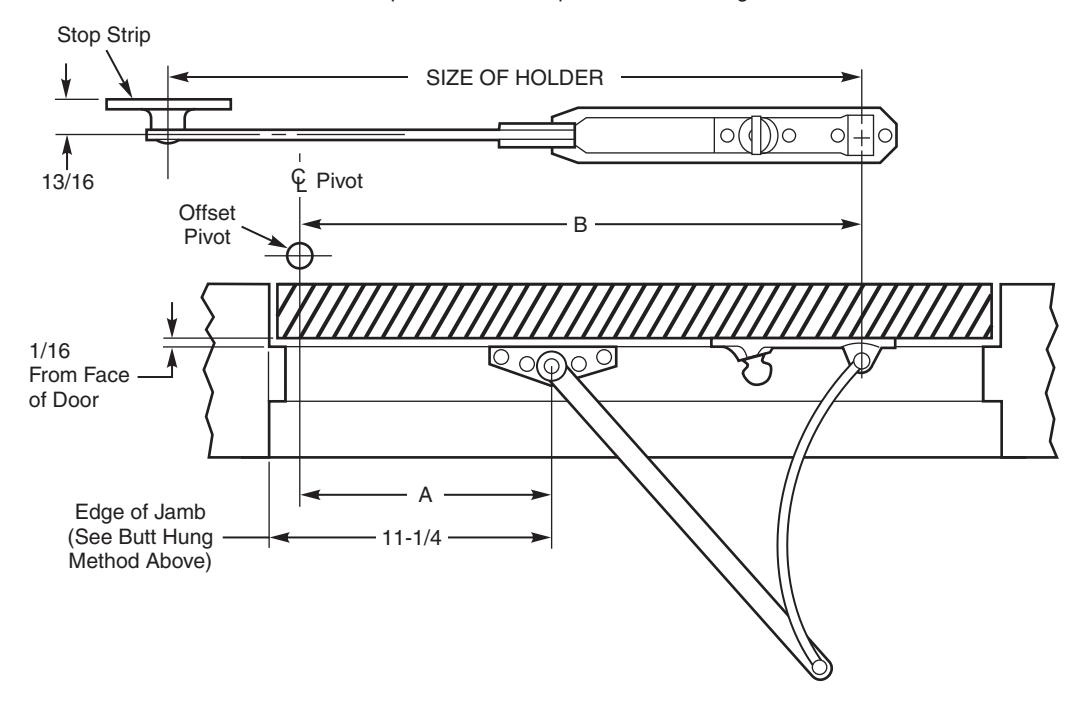

| 24 - 26 | 7-126 | 23 | 8-1/2 | 18-5/8 | Specia | ıl Holder | Locate centerline of jamb |
| 26-1/16 - 30 | 7-126 | 23 | 10-1/2 | 18-7/16 | 9-1/4 | 20 | bracket 11-1/4" from hinge jamb. Open door to desired degree and locate door bracket on door. |
| 30-1/16 - 34 | 7-226 | 27 | 10-1/2 | 22-1/16 | 9-1/4 | 23-5/8 | |
| 34-1/16 - 39 | 7-326 | 31 | 10-1/2 | 26-1/8 | 9-1/4 | 27-3/4 | |
| 39-1/16 - 48 | 7-426 | 36 | 10-1/2 | 31 | 9-1/4 | 32-5/8 | |
For 90° hold open on 1-3/4" thick doors only.
For doors other than 1-3/4" thick, 90° hold open or 3/4" offset pivots use butt hung method.
No. 7 Series Concealed Door Stops & Holders
NORTON RIXSON ASSA ABLOY
TEMPLATE NUMBER
SHEET
REV DATE
OH80030B 2 of 2
