INSTALLATION INSTRUCTIONS
1. Determine degree of hold open or dead stop required. Then select proper dimensions from chart on OH80025B. Add 5/8" to "A" dimension for dead stop.
NOTE: A, B and C dimensions are measured from hinge center, not edge of door.

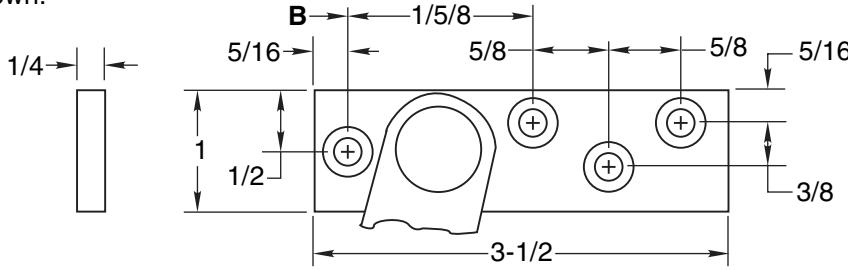

2. Locate "B" dimension on frame and mortise 1/4" deep for jamb bracket as shown.

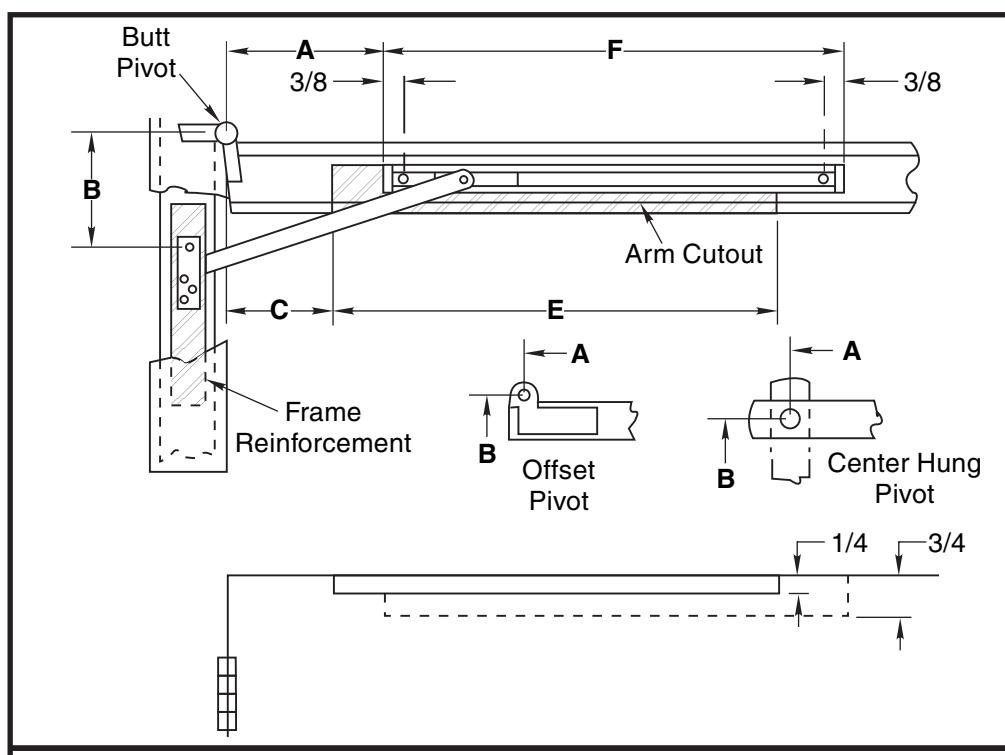

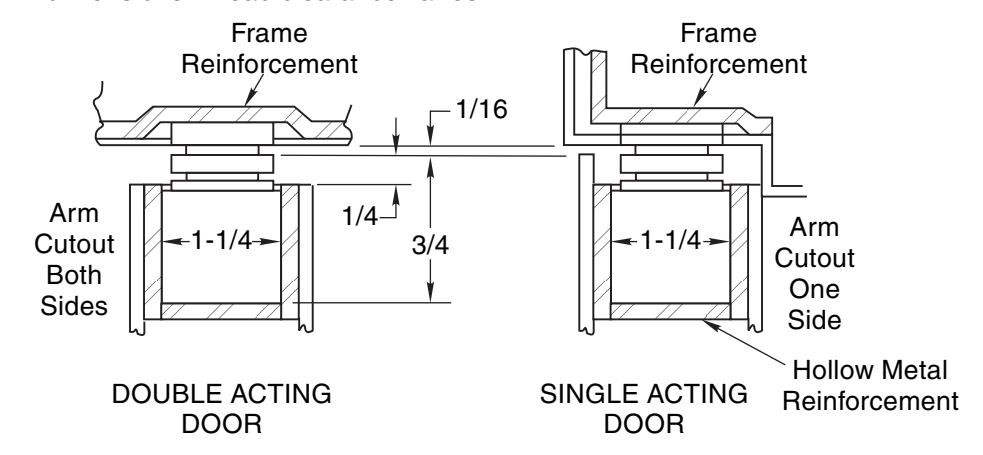

3. Locate "A" and "F dimensions on centerline of door and mortise 3/4" deep for channel. 1/16" head clearance shown. Coordinate the arm and rail cutout dimensions if head clearance varies.
- 4. Locate "C" and "E" dimensions on top of door and mortise 1/4" deep as shown for arm cutout.
- 5. Install door stop or holder with screws provided.
NOTES:
- All hollow metal frames are to be provided with 3/16" min. thickness x 12" min. length reinforcement plates.
- All hollow metal doors are to have minimum 3/16" reinforcement plates.
- If dead stop is required add 5/8" to "A" dimension as noted on OH80025B.
- A, B and C dimensions are measured from centerline of pivot, not edge of door.
- Left hand shown, right hand opposite.
- All dimensions are given in inches. Metric = decimal (numerator divided by denominator) x 25.4.
CAUTION:
Note location of swing clear hinge centerline to determine "A", "B" and "C" dimensions.
| Screw | Details |
|---|---|
| Jamb | Door |
|
1/4-20 x 5/8" FHMS
or #14 x 1-1/2" FHWS |
5/16-18 x 3/4" FHMS
or #18 x 2-1/4" FHWS |
No. 6 Series Concealed Door Stops
) NORTON ASSA ABLOY
TEMPLATE NUMBER OH80025A | 1 of 2
3 |01/22
Experience a safer and more open world
No. 6 Series Concealed Door Stops Less Spring
- 1. See OH80025A for installation instructions.
- 2. Select proper dimensions noted below.
- 3. Add 5/8" to "A" dimension for dead stop.
4. All dimensions given in inches. Metric = decimal (numerator divided by denominator) x 25.4.
When Using Center Hung Pivots, Check Pivot Manufacturer's Compatibility Prior to Specifying
* Butt mounting only. Reversible, non-handed
|
Device
Number |
Degree | 8 | 5 ° | 90° | 9 | 5 ° | 10 | )0° | 10 | )5° | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1-3/4" - | Stop |
Door
Opening |
Α | В | С | E | Α | В | С | E | Α | В | С | E | Α | В | С | E | Α | В | С | Е | Α | В | С | E | F |
|
2-1/4"
Butts |
6-136 | 24 - 28 | 4 | 5-1/2 | 4-3/4 | 11-7/8 | 3-11/16 | 5-3/16 | 4-1/2 | 13-1/4 |
*
3-3/8 |
*
4-7/8 |
*
3 |
*
14-7/16 |
*
3-1/16 |
*
4-9/16 |
*
1-1/2 |
*
15-5/8 |
*
2-13/16 |
*
4-5/16 |
*
0 |
*
16-7/8 |
*
2-5/8 |
*
4-1/8 |
* 0 |
*
16-5/8 |
16-1/16 |
|
&
3/4" Offset Pivot |
6-236 | 28-1/16 - 33 | 5-3/4 | 6-9/16 | 6 | 15-3/4 | 5-3/8 | 6-3/16 | 5-1/2 | 15-7/8 | 5 | 5-13/16 | 4-1/2 | 16-1/2 |
*
4-11/16 |
*
5-1/2 |
*
3-1/2 |
*
17-3/16 |
*
4-7/16 |
*
5-1/4 |
*
2-1/4 |
*
18-3/16 |
*
4-3/16 |
*
5 |
* |
*
19-1/8 |
17-5/16 |
| 33-1/16 - 38 | ı | | | | 19-1/8 | 8-7/16 | 7 | 6-3/4 | 19-1/8 | 8 | 6-9/16 | 6-1/4 | 19-1/4 | 7-11/16 | 6-1/4 | 5-1/2 | 19-5/8 | 7-7/16 | 6 | 4-1/4 | 20-5/8 | 18-13/16 | |||||||
| 6-436 | 38-1/16 - 43 | 12-1/4 | 9-11/16 | 9-1/2 | 22-3/8 | 11-3/4 | 9-3/16 | 9 | 22-3/8 | 11-1/4 | 8-11/16 | 8-1/2 | 22-3/8 | 10-3/4 | 8-3/16 | 8 | 22-3/8 | 10-5/16 | 7-3/4 | 7-1/2 | 22-3/8 | 10 | 7-7/16 | 7-1/4 | 22-3/8 | 20-15/16 | |
| 6-536 | 43-1/16 - 48 | 15-7/8 | 11-1/16 | 10-3/4 | 26-1/4 | 15-1/4 | 10-7/16 | 10-1/4 | 26-1/4 | 14-5/8 | 9-13/16 | 9-1/2 | 26-1/4 | 14-1/8 | 9-5/16 | 9 | 26-1/4 | 3-11/10 | 8-7/8 | 8-3/4 | 26-1/4 | 13-5/16 | 8-1/2 | 8-1/4 | 26-1/4 | 22-7/16 | |
NOTE: A, B, and C dimensions measured from centerline of pivot, not edge of door.
|
Device
Number |
Degree | 8 | 5 ° | 90 | 0° | 9 | 5 ° | 10 | 0° | 10 | 5° | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stop |
Door
Opening |
Α | В | С | E | Α | В | С | Е | Α | В | С | E | Α | В | С | E | Α | В | С | E | Α | В | С | E | F | |
|
1-3/4" -
2-1/4" |
6-136 | _ | _ | ı | - | - | ı | - | - | - | - | - | - | - | - | ı | ı | _ | - | ı | - | _ | - | - | - | - | - |
|
Center
Hung |
6-236 | 30 - 36 | 6-3/16 | 7 | 6-3/4 | 15-3/8 | 5-13/16 | 6-5/8 | 6-3/8 | 15-3/8 | 5-7/16 | 6-1/4 | 6 | 15-3/8 | - | 1 | - | _ | - | - | - | - | - | - | - | - | 17-5/16 |
| 6-336 | 36-1/16 - 41 | 9-15/16 | 8-1/2 | 8-1/4 | 19-1/8 | 9-7/16 | 8 | 7-3/4 | 19-1/8 | 9 | 7-9/16 | 7-3/8 | 19-1/8 | 8-5/8 | 7-3/16 | 7 | 19-1/8 | 8-1/4 | 6-13/16 | 6-1/2 | 19-1/8 | 7-15/16 | 6-1/2 | 6-1/4 | 19-1/8 | 18-13/16 | |
| 6-436 | 41-1/16 - 46 | 2-13/16 | 310-1/4 | 10 | 22-3/8 | 12-3/16 | 9-5/8 | 9-3/8 | 22-3/8 | 11-11/16 | 9-1/8 | 9 | 22-3/8 | 11-3/16 | 8-5/8 | 8-1/2 | 22-3/8 | 0-13/16 | 8-1/4 | 8 | 22-3/8 | 10-7/16 | 7-7/8 | 7-3/4 | 22-3/8 | 20-15/16 | |
| 6-536 | 46-1/16 - 50 | 16-9/16 | 11-3/4 | 11-1/2 | 26-1/8 | 15-13/16 | 11 | 10-3/4 | 26-1/8 | 15-1/8 | 10-5/16 | 10 | 26-1/8 | 14-5/8 | 9-13/16 | 9-1/2 | 26-1/8 | 14-3/16 | 9-3/8 | 9 | 26-1/8 | 13-3/4 | 8-15/16 | 8-3/4 | 26-1/8 | 22-7/16 |
No. 6 Series Concealed Door Stops
RIXSON ASSA ABLOY
TEMPLATE NUMBER
SHEET
REV DATE
|2 of 2| 3 |01/22 OH80025B
