INSTALLATION INSTRUCTIONS
1. Determine the device number for the door opening. Then select proper dimensions from chart on OH80028B.

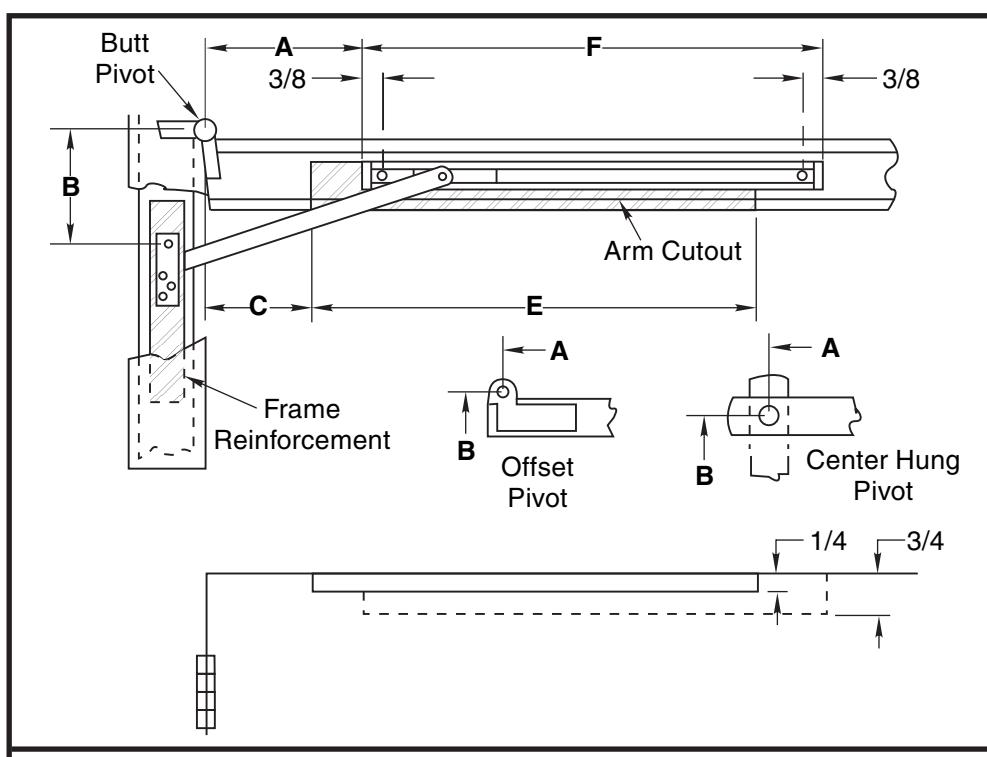

NOTE: A, B and C dimensions are measured from hinge center, not edge of door.

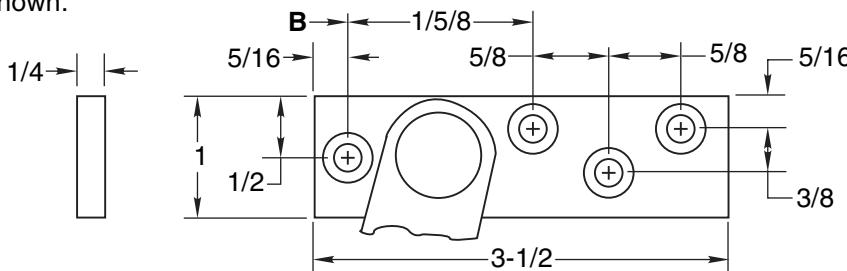

2. Locate "B" dimension on frame and mortise 1/4" deep for jamb bracket as shown.

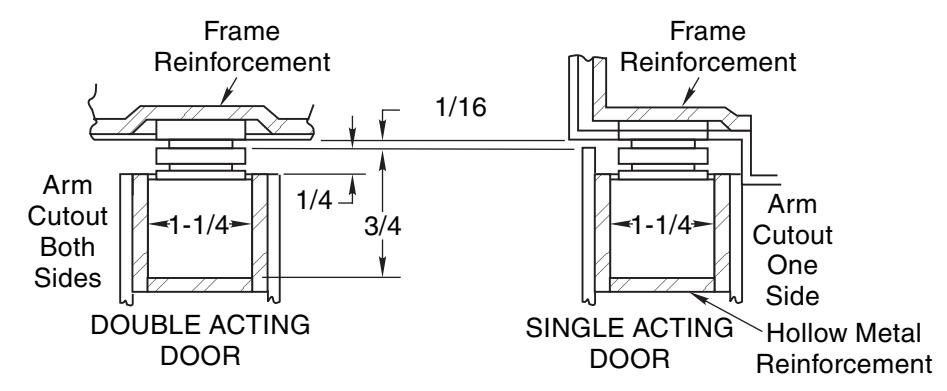

3. Locate "A" and "F dimensions on centerline of door and mortise 3/4" deep for channel, 1/16" head clearance shown. Coordinate the arm and rail cutout dimensions if head clearance varies.
- 4. Locate "C" and "E" dimensions on top of door and mortise 1/4" deep as shown for arm cutout.

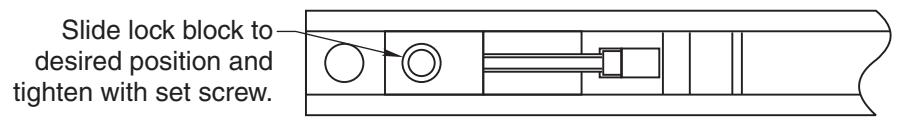

- 5. Install the holder with screws provided and locate the adjustable stop block by tightening its set screw. See view below.
NOTES:
- All hollow metal frames are to be provided with 3/16" min. thickness x 12" min. length reinforcement plates.
- All hollow metal doors are to have minimum 3/16" reinforcement plates.
- A, B and C dimensions are measured from centerline of pivot, not edge of door.
- Left hand shown, right hand opposite.
CAUTION: Note location of swing clear hinge centerline to determine "A". "B" and "C" dimensions.
| Screw Details | ||||||
|---|---|---|---|---|---|---|
| Jamb | Door | |||||
|
1/4-20 x 5/8" FHMS
or #14 x 1-1/2" FHWS |
5/16-18 x 3/4" FHMS
or #18 x 2-1/4" FHWS |
|||||
No. 6 ADJ Series Concealed Door Stops
) NORTON ASSA ABLOY
TEMPLATE NUMBER OH80028A | 1 of 2
3 |01/22
Approved -
NortonRixson.com
* Butt mounting only. Reversible, non-handed
No. 6ADJ Series Concealed Door Stops
- 1. See OH80028A for installation instructions.
- 2. Select proper dimensions noted below.
- 3. All dimensions given in inches.
When Using Center Hung Pivots, Check Pivot Manufacturer's Compatibility Prior to Specifying
|
1-3/4" -
2-1/4" Butts & 3/4" Offset Pivot |
Device
Number |
Degree | ||||||
|---|---|---|---|---|---|---|---|---|
| Stop |
Door
Opening |
Α | В | С | E | F |
Max
Opening |
|
| 6ADJ-136 | 24 - 28 |
*
2-5/8 |
*
4-1/8 |
*
0 |
*
16-5/8 |
16-1/16 | 110° | |
| 6ADJ-236 | 28-1/16 - 33 |
*
4-3/16 |
*
5 |
*
1 |
*
19-1/8 |
17-5/16 | 110° | |
| 6ADJ-336 | 33-1/16 - 38 | 7-7/16 | 6 | 4-1/4 | 20-5/8 | 18-13/16 | 110° | |
| 6ADJ-436 | 38-1/16 - 43 | 10 | 7-7/16 | 7-1/4 | 22-3/8 | 20-15/16 | 110° | |
| 6ADJ-536 | 43-1/16 - 48 | 13-5/16 | 8-1/2 | 8-1/4 | 26-1/4 | 22-7/16 | 110° |
NOTE: A, B, and C dimensions measured from centerline of pivot, not edge of door.
|
1-3/4" -
2-1/4" Center Hung |
Device
Number |
Degree | ||||||
|---|---|---|---|---|---|---|---|---|
| Stop |
Door
Opening |
Α | В | С | E | F |
Max
Opening |
|
| 6ADJ-136 | _ | - | - | - | - | - | N/A | |
| 6ADJ-236 | 30 - 36 | 4-7/8 | 5-11/16 | 5-1/2 | 15-3/8 | 17-5/16 | 105° | |
| 6ADJ-336 | 36-1/16 - 41 | 7-15/16 | 6-1/2 | 6-1/4 | 19-1/8 | 18-13/16 | 110° | |
| 6ADJ-436 | 41-1/16 - 46 | 10-7/16 | 7-7/8 | 7-3/4 | 22-3/8 | 20-15/16 | 110° | |
| 6ADJ-536 | 46-1/16 - 50 | 13-3/4 | 8-15/16 | 8-3/4 | 26-1/8 | 22-7/16 | 110° |
No. 6 ADJ Series Concealed Door Stops
RIXSON ASSA ABLOY
TEMPLATE NUMBER
REV DATE OH80028B | 2 of 2 | 3 | 01/22
