Norton Rixson No. 10 Checkmate Series Door Stop and Holder,with 5258 Bracket,Angle Bracket,Surface Mounted,Pull …_OH80067A

• 5258 Bracket *1-5/32 * Note: The vertical placement of the 5258 bracket is based on a 1/16" gap. If gap is different, this dimension must be modified to maintain the 1- 17/32" dimension from the track holes to the top bracket holes shown. 1-5/32" 1-17/32

Screw Details
Jamb	Door
#12 X 1-1/2" FHPMS	#12-24 X 1-1/2" FHMPS X NUL
#12-24 X 5/8" FHPMS	12-24 Sex Bolt for 1-3/4" Dr

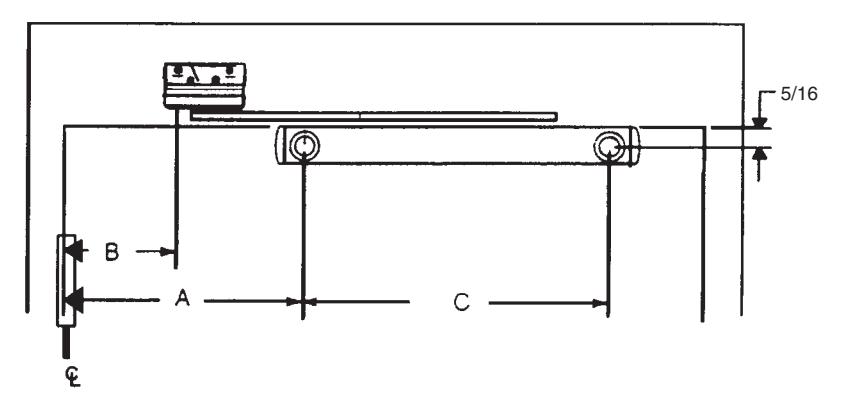

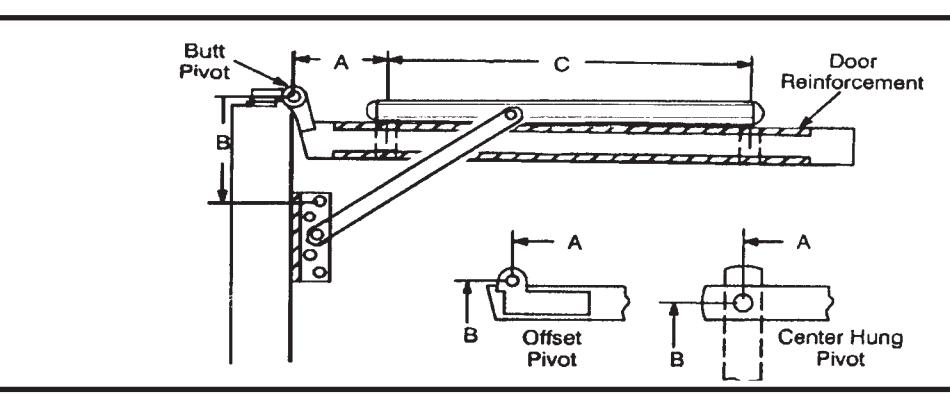

No. 10 Series x 5258 Bracket Angle Bracket Surface Mount on Pull Side of Door Door Stops & Holders

NORTON RIXSON

TEMPLATE NUMBER REV

SHEET

DATE

OH80067A 1 of 2

Approved 2022-05-02

4 02/22

		Device Numbe			Degree
	Fric- tion	H.O.	Stop	Multi	Door Opening	Α	В	С
$1\backslash frac\{3\}\{4\}\; -\; 2\backslash frac\{1\}\{4\}$	10-116	10-126	10-136	10-146	*18-24	1 3/16	3 9 16	14 13 16
Butts &	10-216	10-226	10-236	10-246	$24\backslash frac\{1\}\{16\}\; -\; 30$	3 3/4	4 3 16	16
3 Offset	10-316	10-326	10-336	10-346	30 1 – 36	6 9	5 3	17 3 / 4
Pivot	10-416	10-426	10-436	10-446	36 1 – 42	9 13	7 1	20 3
	10-516	10-526	10-536	10-546	42 1 - 48	13 3 4	8 5	22
	Device Number
					Degree
	Fric- tion			Multi	Degree Door Opening	Α	В	С
	Fric- tion	Numbe	r	Multi 10-146	Door	A 1 5/8	B 4	C 14 13 / 16
Center Hung	Fric- tion	H.O. 10-126	Stop	$\backslash vdash$	Door Opening
	Fric- tion 10-116 10-216	H.O. 10-126	Stop 10-136	10-146	Door Opening $21\; -\; 26\backslash frac\{1\}\{2\}$	1 5 8	4	14 13
	Fric- tion 10-116 10-216 10-316	H.O. 10-126 10-226	Stop 10-136 10-236	10-146 10-246	Door Opening $21\; -\; 26\backslash frac\{1\}\{2\}$ $26\backslash frac\{9\}\{16\}\; -\; 32$	$1\backslash frac\{5\}\{8\}$ $4\backslash frac\{7\}\{16\}$	4 4 7 8	14 13 16

No. 10 Series x 5258 Bracket Angle Bracket Surface Mount on Pull Side of Door Door Stops & Holders

NORTON RIXSON

TEMPLATE NUMBER REV

SHEET

OH80067B 2 of 2 4 DATE 02/22
