Norton Rixson No. 10 Checkmate Series Door Stop and Holder,Surface Mounted Template_OH80065A

Open the original PDF document

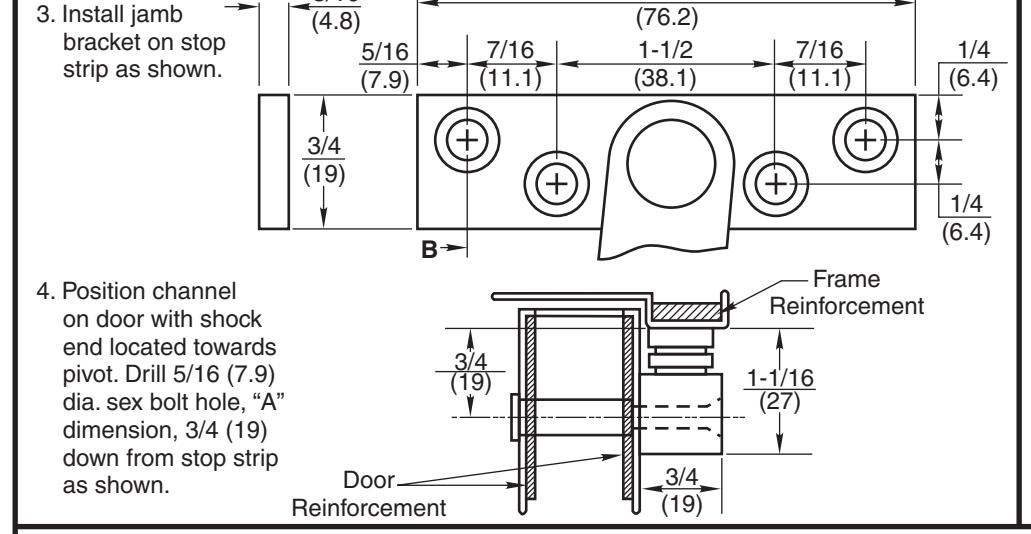

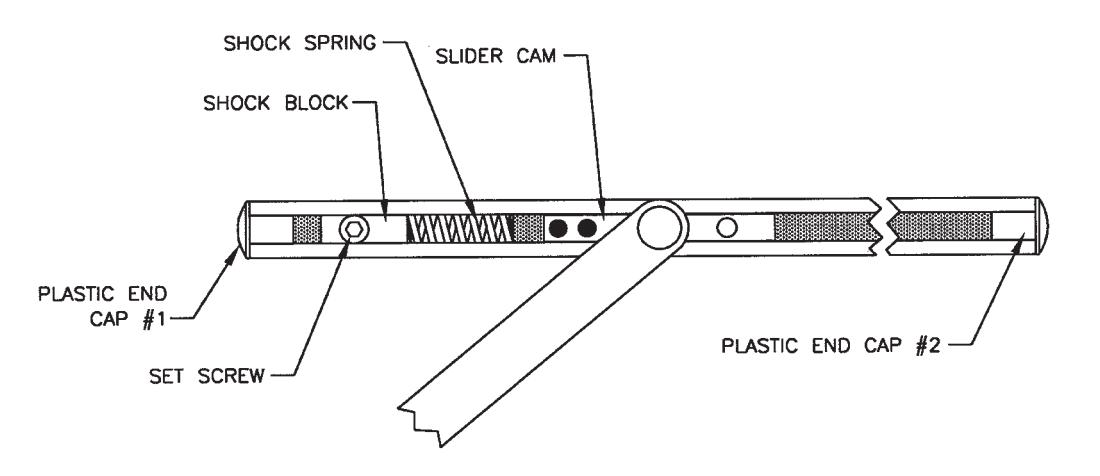

5. Install channel on door with "A" dimension sex bolt. Locate "C" dimension sex bolt hole making sure that channel is horizontal and parallel with stop strip. Drill 5/16 (7.9) dia. sex bolt hole and finish installing holder.

INSTALLATION INSTRUCTIONS

1. Select proper dimensions from chart on back side of page.
2. Locate "A" and "B" dimensions on door and frame.

3/16

Notes:

All hollow metal frames should be properly reinforced with 3/16" (4.8) min. thickness x 12" (304.8) min. length reinforcement plates.
All hollow metal doors are to have minimum 3/16" (4.8) reinforcement plates.
All drilling and tapping to be done by field men.
Suggest mounting door stop or holder first and then other hardware to clear. Contact factory if interference results with other hardware.
Jamb bracket to be on same centerline as channel.

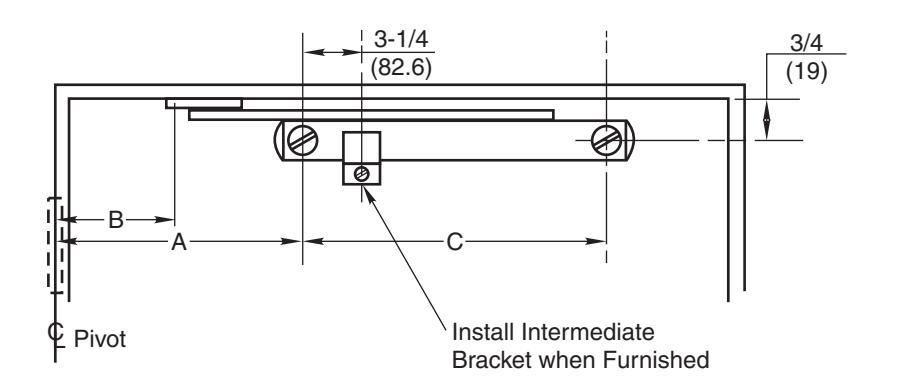

Intermediate bracket #12 x 3/4" FSMS.
All dimensions are given in inches (mm).

Caution:

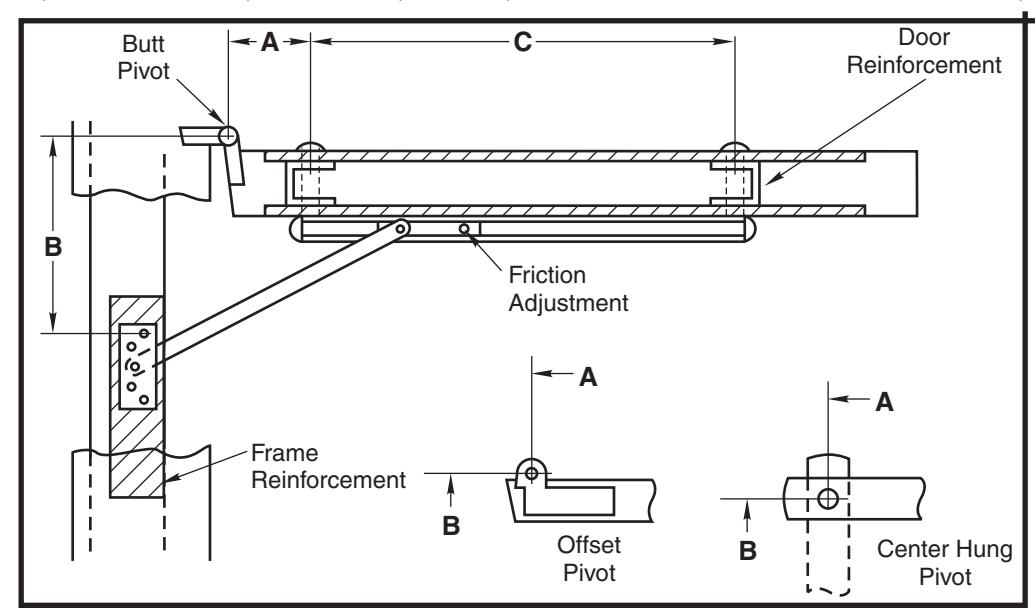

Note location of swing clear hinge centerline to determine "A" and "B" dimensions.

Screw Details
Jamb	Door
#12 x 1-1/2" FHWS	#12-24 x 1-1/2" FHMS
or	and
#12-24 x 1/2" FHMS	5/16" Dia. Sex Bolt
(4 Places)	(2 Places)

No. 10 Series Surface Mounted Door Stops and Holders

NORTON RIXSON ASSA ABLOY

TEMPLATE NUMBER

SHEET

REV DATE

Approved 2022-05-02

OH80065A 1 of 2 2 01/22

		Device Numbe
	Fric- tion	H.O.	Stop	Multi	Door Opening	Α	В	С
$1\frac{3}{4} - 2\frac{1}{4}$	10-116	10-126	10-136	10-146	*18-24	$1\frac{3}{16}$	3 9 16	14 13
Butts &	10-216	10-226	10-236	10-246	$24\frac{1}{16} - 30$	3 3/4	4 3 16	16
3 Offset	10-316	10-326	10-336	10-346	30 1 – 36	6 9	5 3	17 ³ / ₄
Pivot	10-416	10-426	10-436	10-446	$36\frac{1}{16} - 42$	9 13	7 1	20 3
	10-516	10-526	10-536	10-546	42 1 - 48	$13\frac{3}{4}$	8 5	22

		Device Numbe
	Fric- tion			Multi	Door Opening	Α	В	С
	Fric- tion	Numbe	r	Multi 10-146		A 1 5/8	B 4	C 14 ¹³ / ₁₆
Center Hung	Fric- tion 10-116	Numbe H.O.	Stop	$\vdash$	Opening	1 5/8
	Fric- tion 10-116 10-216	H.O. 10-126	Stop 10-136	10-146	Opening 21 - 26 ¹ / ₂		4	14 13
	Fric- tion 10-116 10-216 10-316	H.O. 10-126 10-226	Stop 10-136 10-236	10-146 10-246	Opening $21 - 26\frac{1}{2}$ $26\frac{9}{16} - 32$	1 $\frac{5}{8}$ 4 $\frac{7}{16}$	4 4 7 8	14 13 16

No. 10 Series Surface Mounted Door Stops and Holders

NORTON RIXSON

TEMPLATE NUMBER REV

SHEET

DATE

OH80065B 2 of 2

2 01/22

Approved 2022-05-02
