INSTALLATION INSTRUCTIONS
Determine the device number for the door opening. Then select proper dimensions from chart on OH800003B.

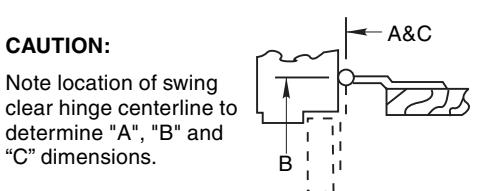

NOTE: A, B and C dimensions are measured from hinge center, not edge of door.

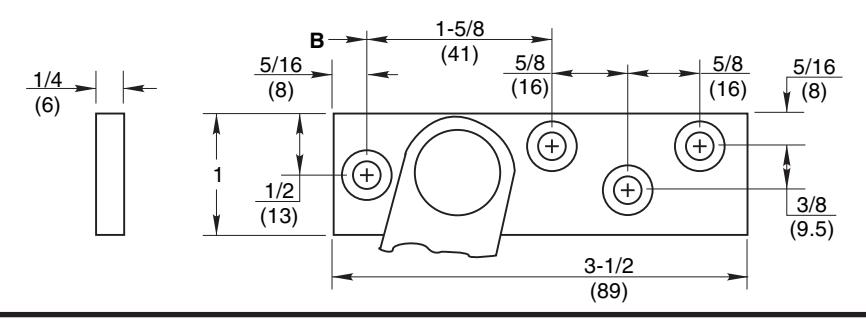

2. Locate "B" dimension on frame and mortise 1/4" (6mm) deep for jamb bracket as shown.

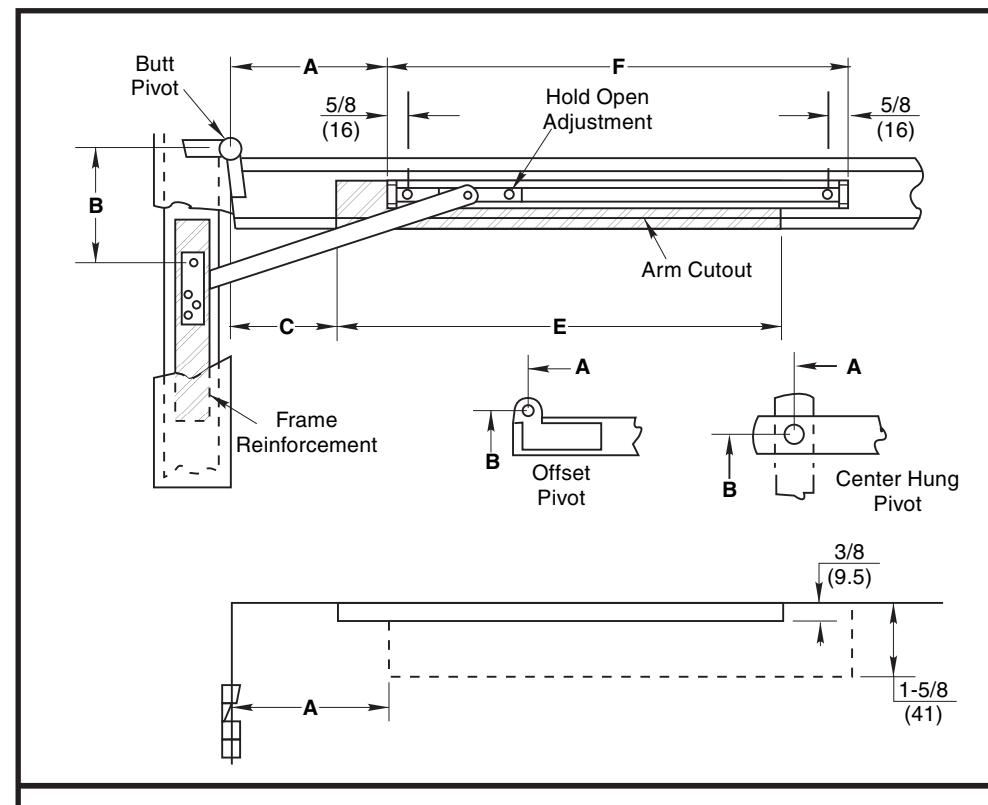

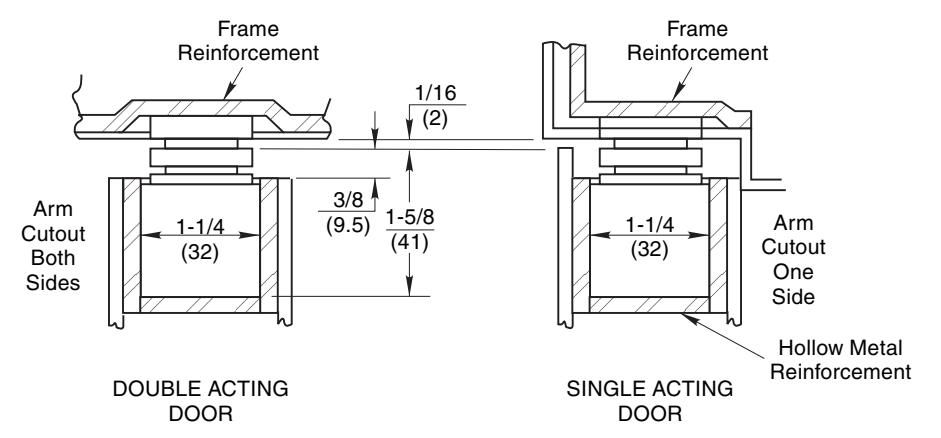

3. Locate "A" and "F dimensions on centerline of door and mortise 1-5/8" (41mm) deep for channel. 1/16" (2mm) head clearance shown. Coordinate the arm and rail cutout dimensions if head clearance varies.
4. Locate "C" and "E" dimensions on top of door and mortise 3/8" (9.5mm)deep as shown for arm cutout.
NOTES:
- All hollow metal frames are to be provided with 3/16" (5mm) min. thickness x 12" (305mm) min. length reinforcement plates.
- All hollow metal doors are to have minimum 3/16" reinforcement plates.
- A, B and C dimensions are measured from centerline of pivot, not edge of door.
- Left hand shown, right hand opposite.
- All dimensions are given in inches (mm).
| Screw Details | |||||
|---|---|---|---|---|---|
| Jamb | Door | ||||
|
1/4-20 x 3/4" FHMS
or #14 x 1-1/2" FHWS |
5/16-18 x 1-1/2" FHMS
or #18 x 3" FHWS |
||||
No. 1 ADJ Concealed Mounted Door Stops and Holders
RIXSON ASSA ABLOY
TEMPLATE NUMBER OH800003A|1 of 2
SHEET
REV DATE 2 01/22
Approved 2022-05-02
NortonRixson.com
No. 1 Series Surface Mounted Door Stops and Holders
- 1. See OH800003A for installation instructions.
- 2. Select proper dimensions noted below.
3. All dimensions given in inches (mm).
When Using Center Hung Pivots, Check Pivot Manufacturer's Compatibility Prior to Specifying
* Butt mounting only. Reversible, non-handed
|
1-3/4 - 2-1/4
Butts & 3/4 Offset Pivot |
Device
Number |
Degree | |||||||
|---|---|---|---|---|---|---|---|---|---|
| H.O. | Stop |
Door
Opening |
Α | В | С | E | F |
Max
Opening |
|
| 1ADJ-126 | 1ADJ-136 |
24 - 28
(610 - 711) |
*
3-1/16
(78) |
*
4-1/8
(105) |
* 0 (0) |
*
16-5/8
(422) |
17-3/16
(437) |
110° | |
| 1ADJ-226 | 1ADJ-236 |
28-1/16 - 33
(713 - 838) |
*
4-5/8
(117) |
* 5" (127) |
* 1"
(25) |
*
19-1/8
(486) |
18-7/16
(468) |
110° | |
| 1ADJ-326 | 1ADJ-336 |
33-1/16 - 38
(840 - 965) |
7-7/8 (200) |
6"
(152) |
4-1/4
(108) |
20-5/8
(524) |
19-15/16
(506) |
110° | |
| 1ADJ-426 | 1ADJ-436 |
38-1/16 - 43
(967 - 1092) |
1
0-7/1
6
(265) |
7-7/16
(189) |
7-1/4
(184) |
22-3/8
(568) |
22-1/16
(560) |
110° | |
| 1ADJ-526 | 1ADJ-536 |
4
3-1/16 - 48
(1094 - 1219) |
8-1/2
(216) |
8-1/4
(210) |
26-1/4
(667) |
23-9/16
(598) |
110° | ||
NOTE: A, B, and C dimensions measured from centerline of pivot, not edge of door.
|
1-3/4 - 2-1/4
Center Hung |
Device
Number |
Degree | |||||||
|---|---|---|---|---|---|---|---|---|---|
| H.O. | Stop |
Door
Opening |
Α | В | С | E | F |
Max
Opening |
|
| - | _ | - | _ | _ | ı | ı | - | N/A | |
| 1ADJ-226 | 1ADJ-236 |
30 - 36
(762 - 914) |
5-5/16 (135) |
5-11/16
(144) |
5-1/2 (140) |
15-3/8
(391) |
1
8-7/1
6
(468) |
105° | |
| 1ADJ-326 | 1ADJ-336 |
36-1/16 - 41
(916 - 1041) |
8-3/8
(213) |
6-1/2
(165) |
6-1/4
(159) |
19-1/8
(486) |
1
9-15/1
6
(506) |
110° | |
| 1ADJ-426 | 1ADJ-436 |
41-1/16 - 46
(1043 - 1168) |
10-7/8
(276) |
7-7/8
(200) |
7-3/4
(197) |
22-3/8
(568) |
2
2-1/1
6
(560) |
110° | |
| 1ADJ-526 | 1ADJ-536 |
46-1/16 - 50
(1170 - 1270) |
14-3/16
(360) |
8-15/16
(227) |
8-3/4
(222) |
26-1/8
(664) |
2
3-9/1
6
(598) |
110° | |

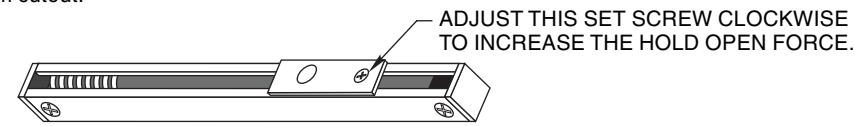

TO SELECT DEGREE OF STOP
- 1. With a screwdriver, loosen the Set Screw in the Slide Block.
- 2. Open door to desired degree of opening.
- 3. Move Slide Block and Spring until the Spring touches Slide Cam.
- 4. Tighten Set Screw.
- 5. Verify door opening position and re-adjust, as needed.
No. 1 ADJ Concealed Mounted Door Stops and Holders
RIXSON ASSA ABLOY
TEMPLATE NUMBER
SHEET
REV DATE
OH800003B 2 of 2
