Norton Rixson ML19, FML19, Side Jamb Pivot, Heavy or Leadlined Door, 3, 4 Offset, Handed Template_IP50070

Door Thickness	А	В	С	Max. Lead Thickness
1-3/4 (44.4)	1-1/4 (31.8)	1/4 (6.4)	1-1/2 (38.1)	9/32 (7.1)
2 (50.8)	1-1/2 (38.1)	5/16 (7.9)	1-3/4 (44.4)	3/8 (9.5)
2-1/4 (57.1)	1-3/4 (44.4)	5/16 (7.9)	2 (50.8)	15/32 (11.9)
2-1/2 (63.5)	2 (50.8)	5/16 (7.9)	2-1/4 (57.1)	9/16 (14.3)
3 (76.2)	2-7/16 (62)	5/16 (7.9)	2-11/16 (68.3)	3/4 (19)

For Door Thickness Not Listed-Use Next Size Smaller for Prep

Notes:

• 1. Do not scale drawing.
• 2. Dimensions are given in inches (mm).
• 3. Pivot drilled for 1/4-20 x 5/8" FHMS or #14 x 1-1/2" FHWS.
• 4. Right hand shown.

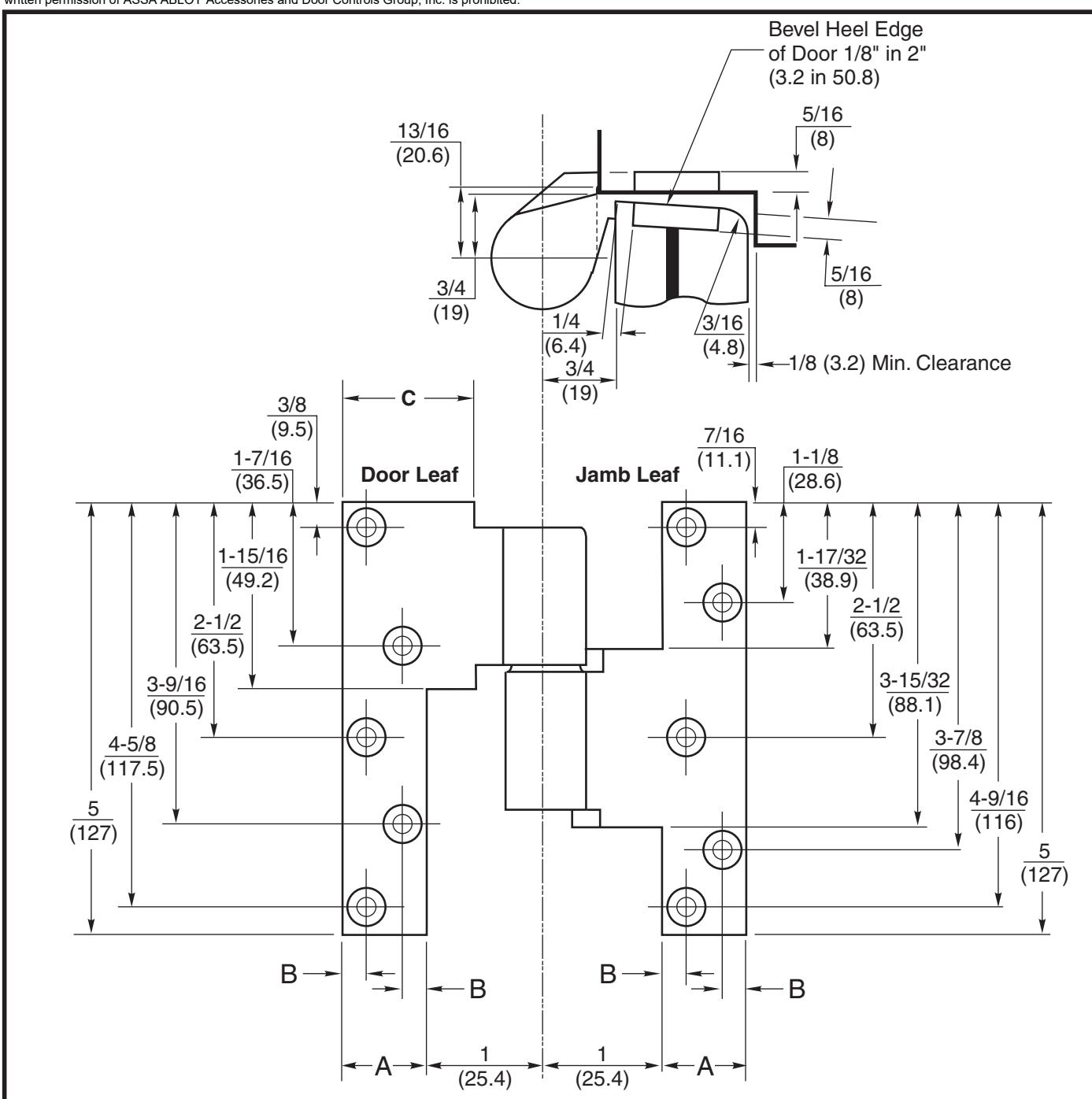

ML19 and FML19 Side Jamb Pivot for Heavy or Leadlined Door 3/4" Offset – Handed

RIXSON ASSA ABLOY

www.rixson.com

TEMPLATE NUMBER ISML19/FML19

05-24

Approved 2024-05-14
