Norton Rixson M700 & M800 Series Overhead Concealed Closer, Metal Door , Frame, Center Hung Template_OC60130
Open the original PDF document
View PDF

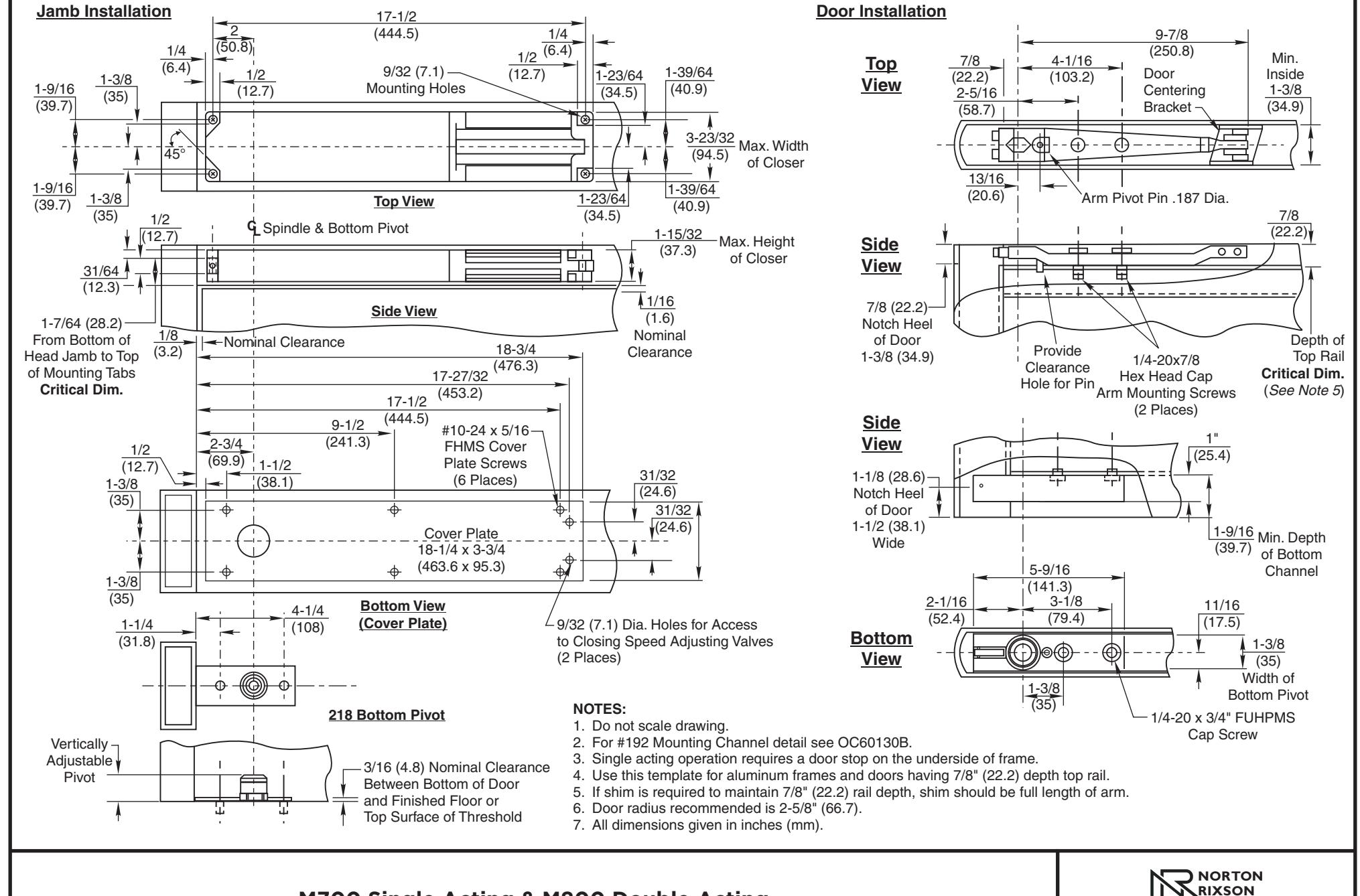

M700 Single Acting & M800 Double Acting Overhead Concealed Door Closer Center Hung for Metal Doors and Frames
RIXSON ASSA ABLOY
TEMPLATE NUMBER OC60130|1 of
REV DATE 01/22
