Norton Rixson M19 Series Intermediate Pivot M19, FM19, M190, FM190 1-1, 2 Offset Installation Instructions_IS-(F)M19(0) x 1.5
Open the original PDF document
View PDF
Notes:
- 1. Do not scale drawing.
- 2. Dimensions are given in inches (mm).
- 3. Pivot drilled for " FHMS or #14 x 1-1/2" FHWS.
- 4. Right hand shown.
- 5. Template drawing for reference only.

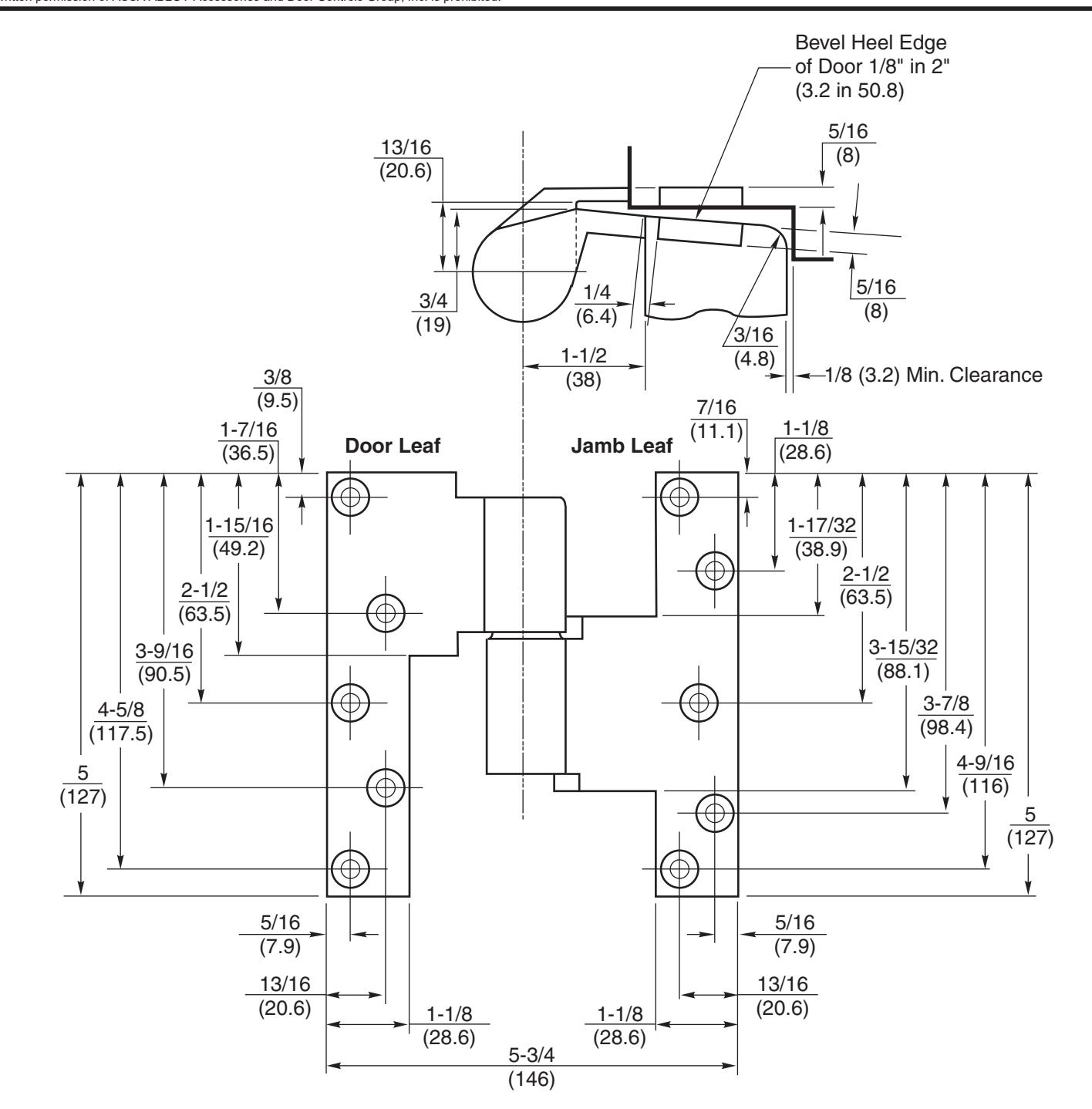

M19, FM19, M190, and FM190 Intermediate Pivot 1-1/2" Offset
RIXSON ASSA ABLOY
www.rixson.com
TEMPLATE NUMBER
REV DATE 3 05-24
IS-(F)M19(0) x 1.5
Approved 2024-05-14
M19, M190 & FM190 Side Jamb Pivot FM19,
Handed Installation Instructions 1-1/2" Offset
Door should already be hung with top pivot and bottom pivot (or floor closer)
1. Mortise door & frame per template on reverse side.
2. Affix pivot to door & frame.
3. Align pivot point from top
pivot to bottom arm. (See diagram)
How To Determine Hand of Door LH RH Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.
4. Loosen arm screw*.
5. Remove hex cap.
8. Turn stud screw counterclockwise until door rests on shims.
6. Turn stud screw clockwise. Raise the door to the desired height.
Tighten arm screw on spindle. Open and close door several times Re-tighten arm screw.
7. Using shims furnished with bottom arm, fill gap between arm and base.
10. Replace hex cap.
* If bottom arm is for a Uni-Chek 67/68 or 117 pivot, make sure the arm is sitting all the way down on the base. Make NO adjustments to the M19.
M19, FM19, M190, and FM190 Intermediate Pivot 1-1/2" Offset
ASSA ABLOY RIXSON ®
www.rixson.com
TEMPLATE NUMBER DATE
REV
3
IS- ( ) x 1.5 (F)M19 0
05-24
Approved 2024-05-14
