Notes:

  • 1. Do not scale drawing.
  • 2. Dimensions are given in inches (mm).
  • 3. Pivot drilled for 1/4-20 x 5/8" FHMS or #14 x 1-1/2" FHWS.
  • 4. Right hand shown.
  • 5. Template drawing for reference only.

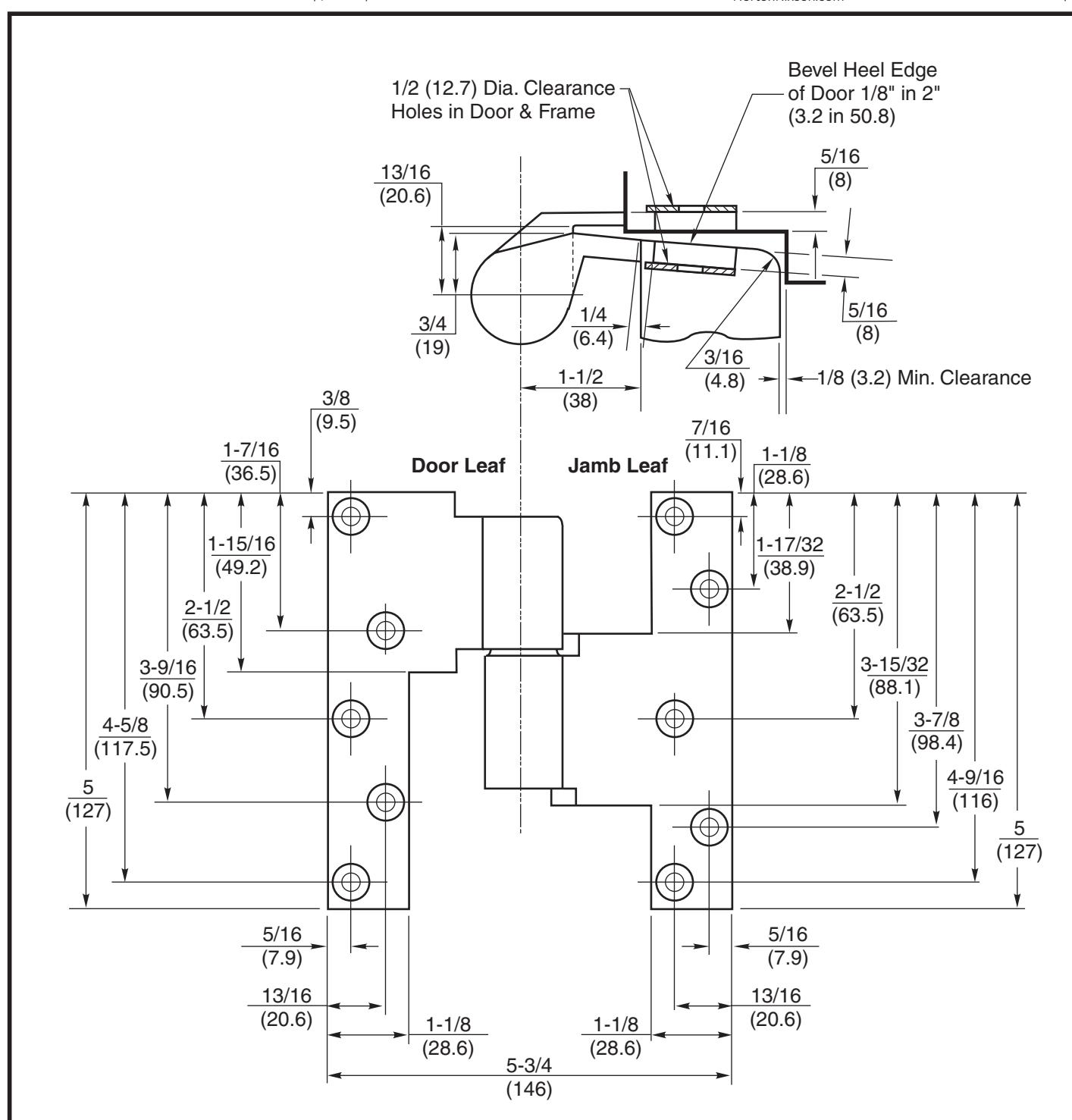

M19, M190 Intermediate Pivot 1-1/2" Offset

NORTON RIXSON ASSA ABLOY

TEMPLATE NUMBER IP50060

3 01/22
