WHAT IS A LOW ENERGY OPERATOR?
A low energy operator is a device that enables automatic movement of a door providing convenience and compliance with regulatory needs.
WHAT ARE THE APPLICATIONS OF A LOW ENERGY OPERATOR?
Typical applications include:
- • Main entrances

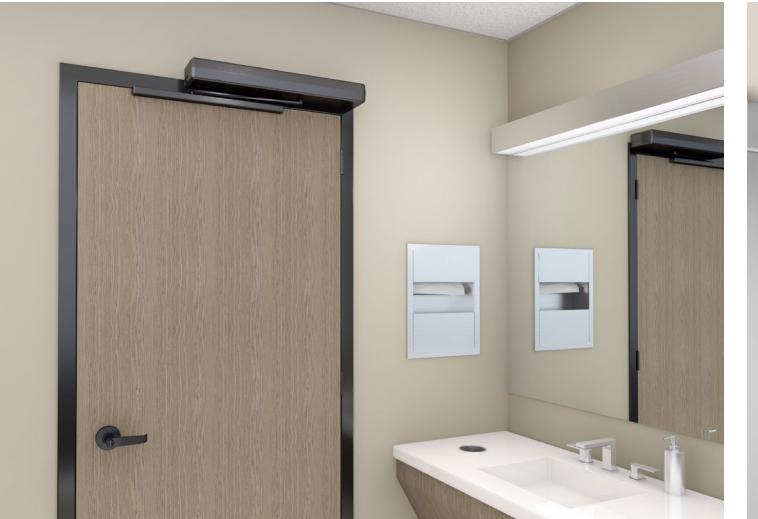

- • Restrooms

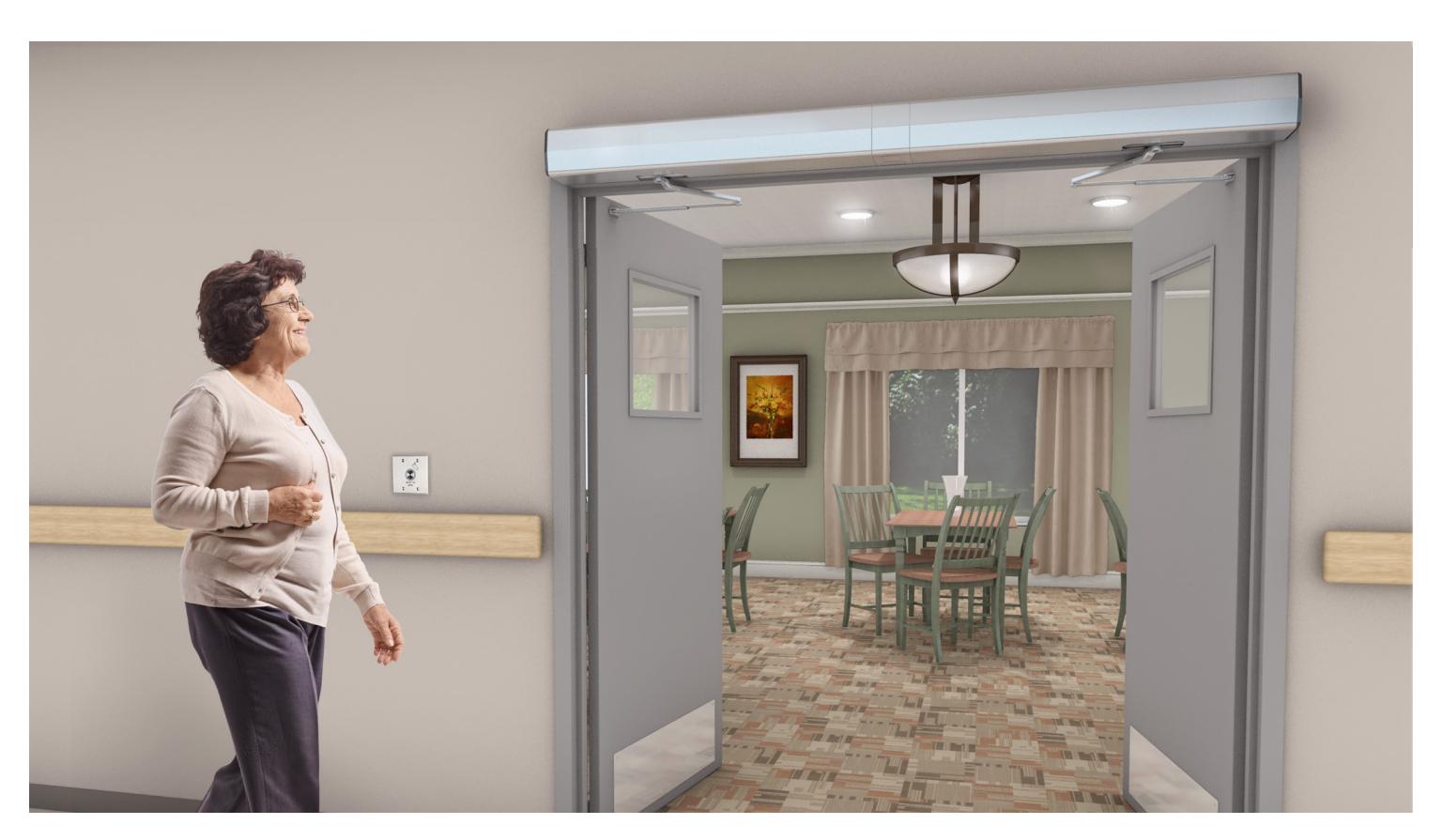

- • Large gathering spaces
ELECTROMECHANICAL VS. ELECTROHYDRAULIC LOW ENERGY OPERATORS
Norton Rixson offers two types of low energy operators: electromechanical and electrohydraulic.
Electrohydraulic operators incorporate a door closer for smooth reliable door control. Advantages include long life, nearly silent operation, and smooth feel of the door closer.
Electromechanical operators feature a motor and gearbox for consistent automatic operation. Advantages include compact size and precise door control including special features such as dynamic braking, latch assist, power close, and power assist.
WHAT ARE THE REQUIREMENTS OF A LOW ENERGY OPERATOR?
All low energy operators must comply with the following: ANSI/BHMA A156.19, Americans with Disabilities Act (ADA).

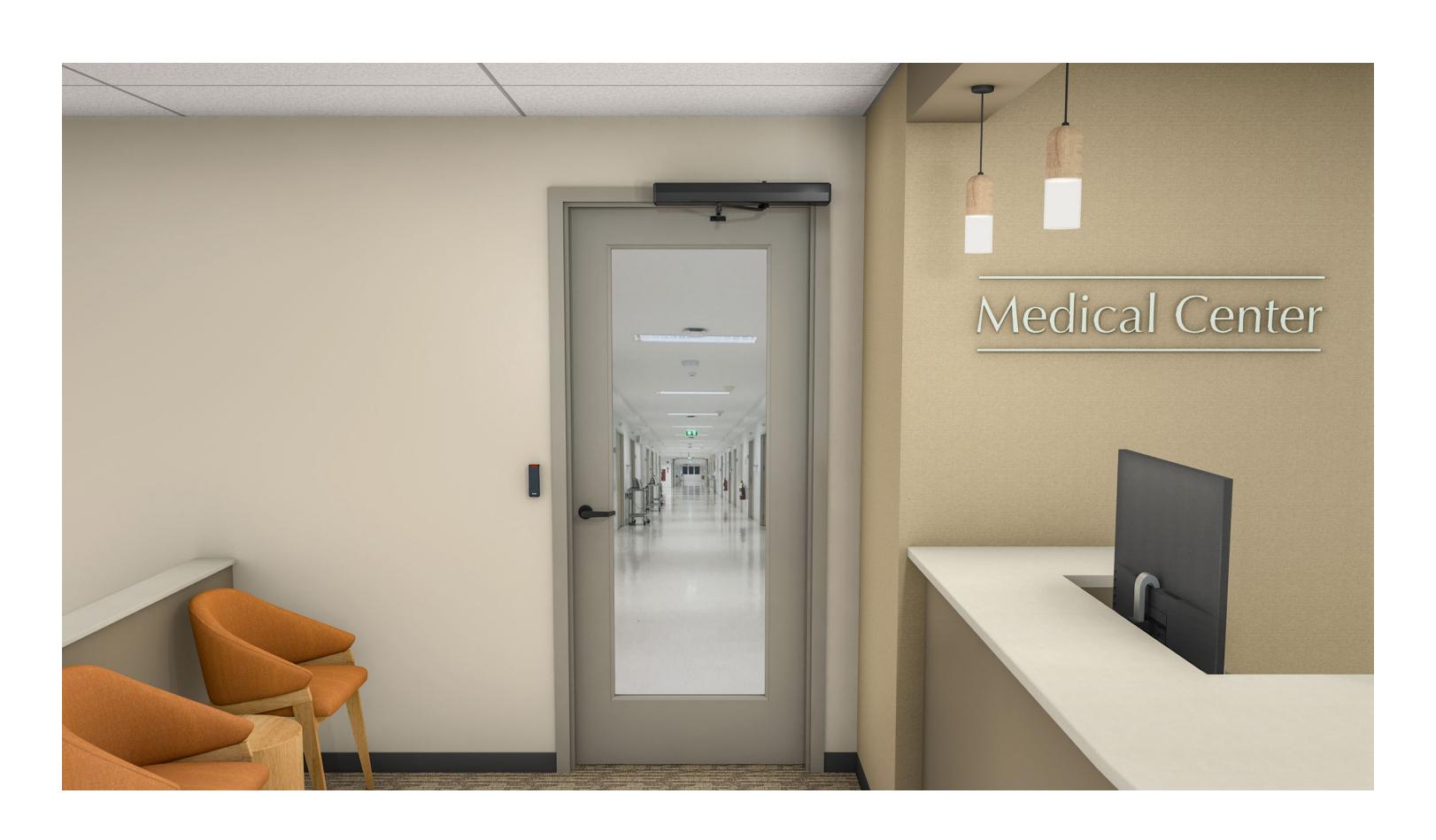

FRAME-MOUNTED ELECTROHYDRAULIC OPERATORS
6000 SERIES ($$$)
5700 SERIES ($$)
5500 SERIES ($)
CLASSIC OPERATION
- Embedded door closer provides consistent feel throughout the facility
- Hydraulic valves control sweep, latch, and backcheck
UNWAVERING DEPENDABILITY
- Closer continues to function even if operator fails
- Operates as mechanical surface closer when door is opened manually

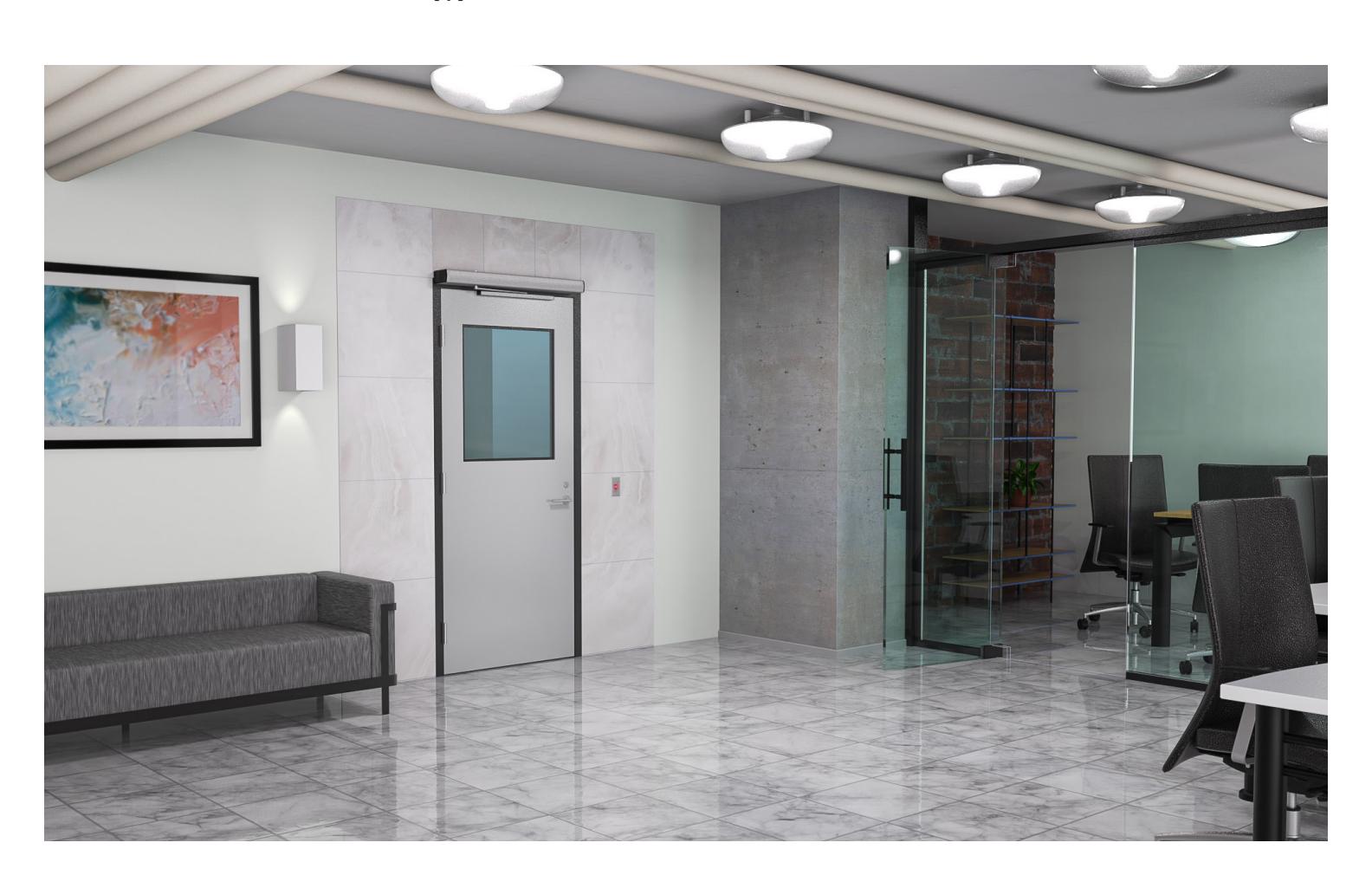

FRAME-MOUNTED ELECTROMECHANICAL OPERATORS
6300 SERIES ($$$)
6200 SERIES ($$)
5200 SERIES ($)
SUPERIOR USER EXPERIENCE
- Modular installation one-person install
- Operator is a secure, password-protected, WiFi hot spot no connection to building's IT required
- Simple setup; no app required
- View status and make adjustments without removing the operator cover
UNPARALLELED VALUE
- Shared aesthetics, installation, and programming across all three operators
- Mix and match 6300, 6200, 5200 Series operators throughout a facility to maximize value to the customer

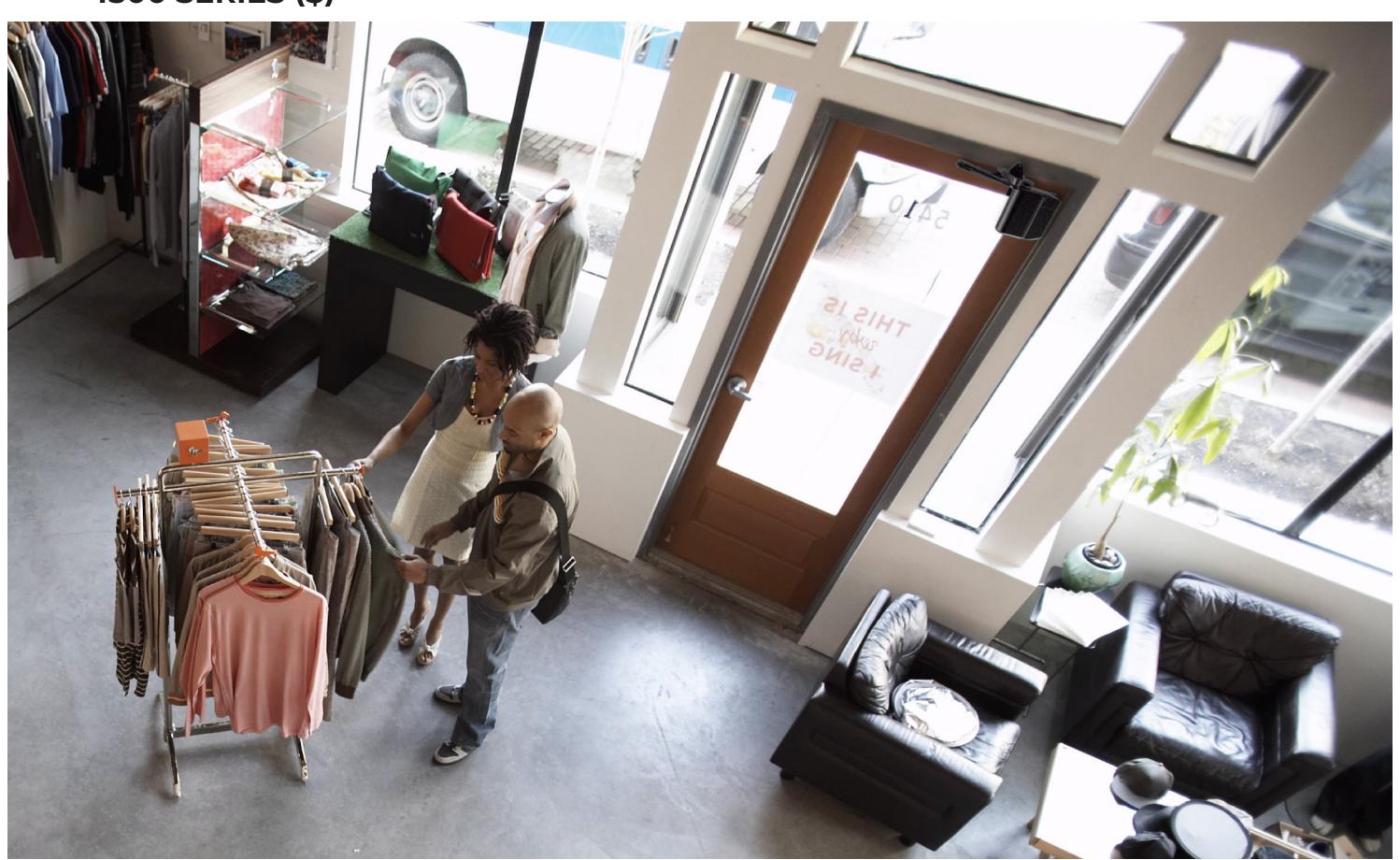

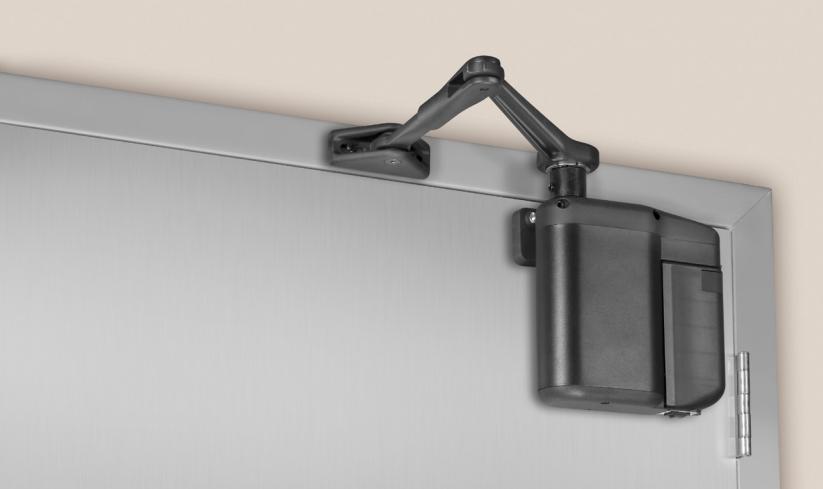

DOOR-MOUNTED ELECTROMECHANICAL OPERATORS
5800 SERIES ($$$)
4500 SERIES ($)
SIMPLE UPGRADE
- Suits most existing door/frame conditions
- Activation switches included
- Ideal for challenging applications such as deep reveal, narrow doors, overhead obstructions
EASY TO INSTALL
- Installs like a door closer
- Minimal/no wiring required
LOW ENERGY OPERATORS: PRODUCT COMPARISON
| FRAME-MOUNTED ELECTROHYDRAULIC | FRAME-MOUNTED ELECTROMECHANICAL | DOOR-MOUNTED ELECTROMECHANICAL | ||||||
|---|---|---|---|---|---|---|---|---|
| FEATURES | 6000 | 5700 | 5500 | 6300 | 6200 | 5200 | 5800 | 4500 |
| Push and go | 1 | 1 | 1 | √ 1 | ||||
| Obstruction detection |
Open/
Close |
Open | Open |
Open/
Close |
Open/
Close |
Open/
Close |
Open | Open/Close |
| Power assist | 1 | 1 | / | |||||
| Power close | 1 | 1 | 1 | √ 1 | 1 | |||
| Latch assist | 1 | 1 | 1 | 1 | 1 | |||
| Infinite hold open | 1 | 1 | 1 | 1 | √2 | 1 | ||
| Use on exterior doors | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Integration with access control systems | 1 | 1 | ||||||
| Blow open function for smoke ventilation | 1 | 1 | ||||||
| WiFi interface setup | 1 | 1 | 1 | 1 | 1 | |||
| Warranty | 2 yrs | |||||||
| Power supply included | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Optional power cord | 1 | 1 | 1 | Standard | ||||
| Standard finishes (689, 690, BSP, WSP) | 1 | 1 | 1 | 1 | 1 | 1 |
693T,
689 only |
1 |
| Price | $$$ | $$ | $ | $$$ | $$ | $ | $$$ | $ |
| SPECIFICATIONS | ||||||||
| Maximum door weight | 250 lbs | 250 lbs | 250 lbs | 250 lbs | 200 lbs | 200 lbs | 250 lbs | 200 lbs |
| Current draw | .9A | .6A | .6A | 1.5A | 1.5A | .4A | .4A | 1.3A |
| Onboard power supply for accessories |
24 VDC
@ 1.3A |
24 VDC
@ 1.1A |
24 VDC
@ 1.1A 5 |
24 VDC
@ 1.3A |
24 VDC
@ 0.4A |
24 VDC
@ .4A |
24 VDC
@ 1.3A |
|
| REGULATORY | ||||||||
| ADA | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| BHMA certified to A156.19 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Meets UL10C positive pressure requirements | √3 | 1 | 1 | 1 | 1 | √ 4 | ||
1 PRO Plus only 2 Auxiliary switch required 3 Push (3-hr); pull (90 min) 4 90 min 5 Sold separately
For a complete list of features and functions, please refer to the catalog .
