Norton Rixson L180 Top Pivot, 3, 4 Offset, High Traffic, Heavy or Lead Lined Doors Template_TP40020
Open the original PDF document
View PDF

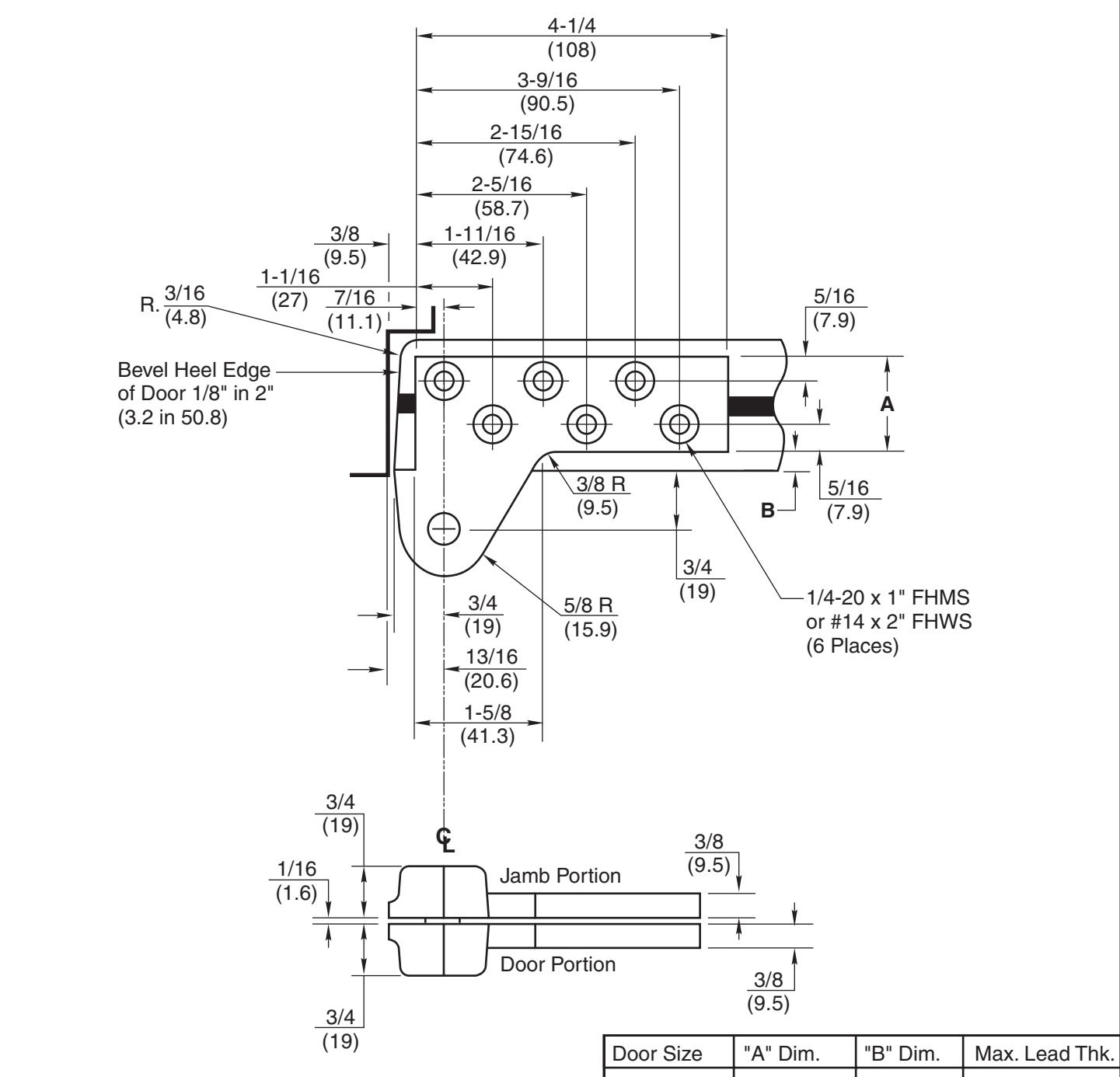

Notes:
- 1. Do not scale drawing.
- 2. Dimensions are given in inches (mm).
- 3. All lead furnished by others.
- 4. Right hand shown.
- 5. Template drawing for reference only.
| Door Size | "A" Dim. | "B" Dim. | Max. Lead Thk. |
| 1-3/4 (44.5) | 1-1/4 (31.8) | 1/4 (6.4) | 9/32 (7.1) |
| 2 (50.8) | 1-3/8 (35) | 5/16 (7.9) | 3/8 (9.5) |
| 2-1/4 (57.2) | 1-1/2 (38.1) | 3/8 (9.5) | 15/32 (11.9) |
| 2-1/2 (63.5) | 1-5/8 (41.3) | 7/16 (11) | 9/16 (14.3) |
| 3 (76.2) | 2 (50.8) | 1/2 (12.7) | 3/4 (19) |
- For door thicknesses not listed, use next size smaller for prep.
- Table above is based on the assumption that lead is place in center of door.
L180 Top Pivot 3/4" Offset For High Traffic, Heavy or Lead Lined Doors
| RIX | SON |
|---|---|
| ASSA | ABLOY |
www.rixson.com
TEMPLATE NUMBER REV
05-24

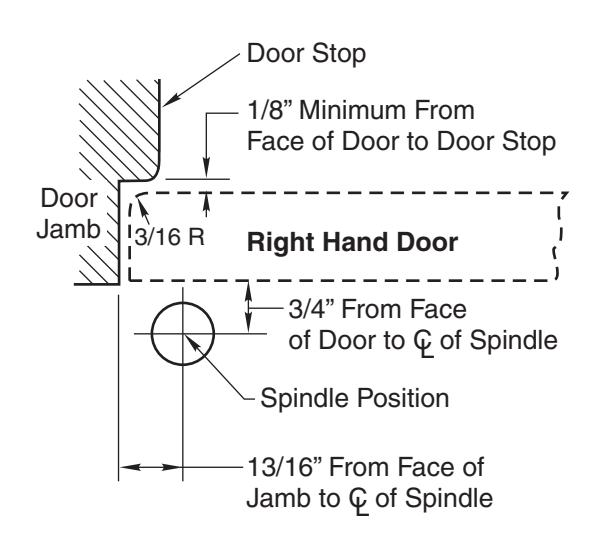

L180 Top Pivot

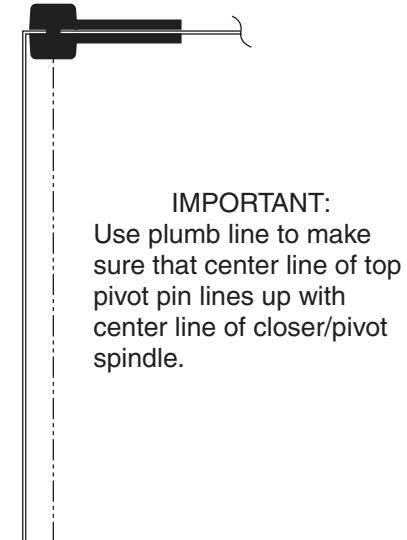

Location

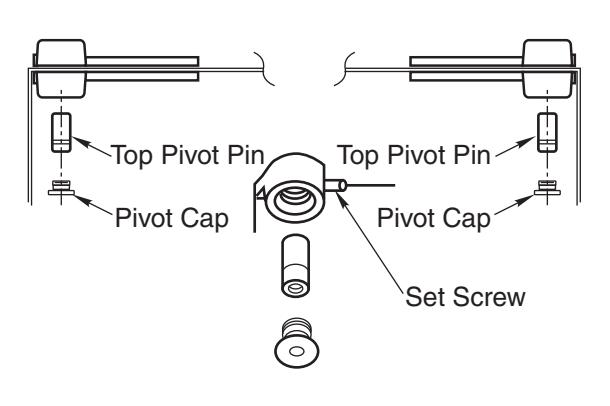

Attachment
- 1. Attach door leaf of top pivot to door.
- 2. Attach jamb leaf of top pivot to frame.
- 3. If side jamb pivot is used, see required template for instructions.
- 4. Push top pivot pin into place. Tighten set screw.
- 5. Attach pivot cap. CAP MUST BE TIGHTENED SECURELY.
Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.
L180 Top Pivot 3/4" Offset For High Traffic, Heavy or Lead Lined Doors
RIXSON ASSA ABLOY
www.rixson.com
IS-L180
REV DAT
05-24
