Norton Rixson L117 Pivot Set, Single Acting, 3, 4 Offset, Lead Lined Doors Template_PS30045

Open the original PDF document

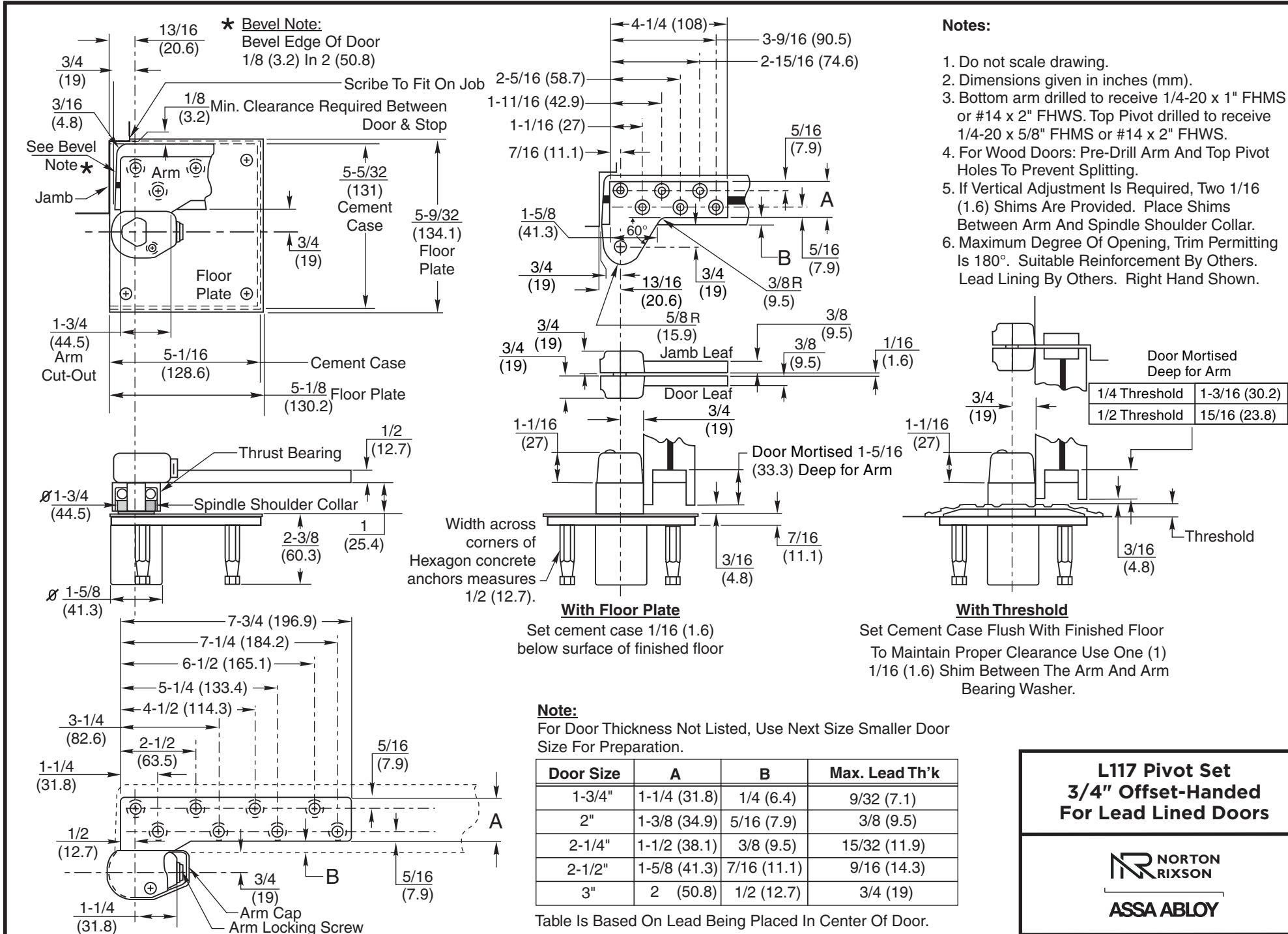

L117 Pivot Set 3/4" Offset-Handed

Door Mortised

Deep for Arm

1-3/16 (30.2)

15/16 (23.8)

-Threshold

ASSA ABLOY

TEMPLATE NUMBER PS30045

3 01/22

Approved 2023-12-15
