(31.8)

Arm Locking Screw

Table Is Based On Lead Being Placed In Center Of Door.

IS-L117

05-24

Offset Hung L 117 Heavy Duty Pivot Set Handed

Determine Hand of Door LH RH

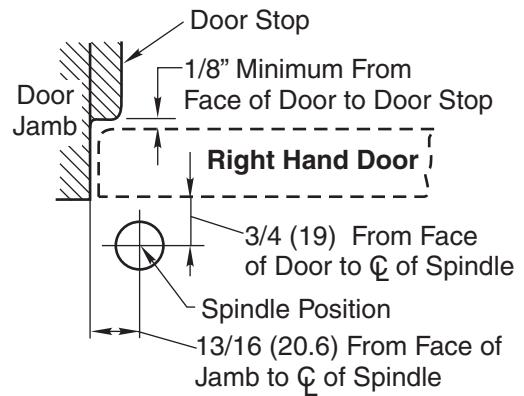

1 Locate Pivot .

  • A. Measure 13/16 (20.6) from door jamb.
  • B. Allow 1/8 (3.2) minimum clearance from door stop to door face. Measure door thickness; add 3/4 (19).
  • C. Where lines meet determines centerline of pivot.

  • F. Grout in cement case with bottom pivot. Cement should not get between pivot and cement case.
  • G. A dummy steel floor plate is provided in the event that grinding of floors is necessary.

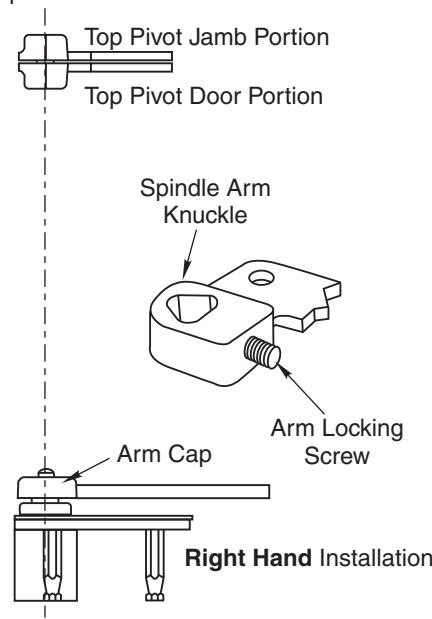

3 Install Top Pivot And Pivot Arm .

  • A. Install top pivot in door per template.
  • B. Install top pivot in frame per template.
  • C. Install arm in door per template.
  • centerline of spindle.

  • D. If door drags at floor or threshold (if used), raise door to desired clearance and insert one or more 1/16 (1.59) shims.
  • E. Tighten Arm and Locking Screw securely with wrench provided.
  • F. Put arm cap on pivot spindle and secure TIGHTLY with cap screw provided.
  • G. Install floor plate, if required.

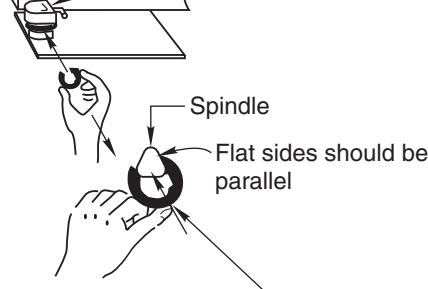

Shim snaps in between arm bearing washer and arm knuckle

Knuckle

Push shim into position with thumb or butt end or screwdriver

D. Centerline of top pivot should line up with

IMPORTANT

Use plumb line to make sure that centerline of top pin lines up with centerline of Pivot Spindle.

2 Install Cement Case In Floor .

  • A. For floor plate application, top of cement case is located 1/16 (1.6) below the finished floor.
  • B. For threshold application, top of cement case is located flush with the finished floor.
  • C. Set cement case in floor and block in position.
  • D. Case should be parallel with centerline of door.

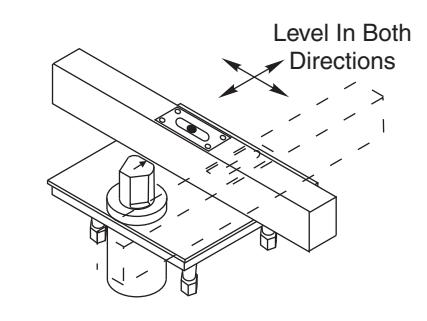

  • E. Cement case should be level. Place level per illustration.

4 Hang Door .

  • A. To facilitate hanging of door, position arrow on top of spindle so it is parallel with the opening, and pointing toward the lock jamb. This can be accomplished with the wrench provided.
  • B. Set door on spindle.

C. Push top pivot pin (1) up into place and replace cap (2).

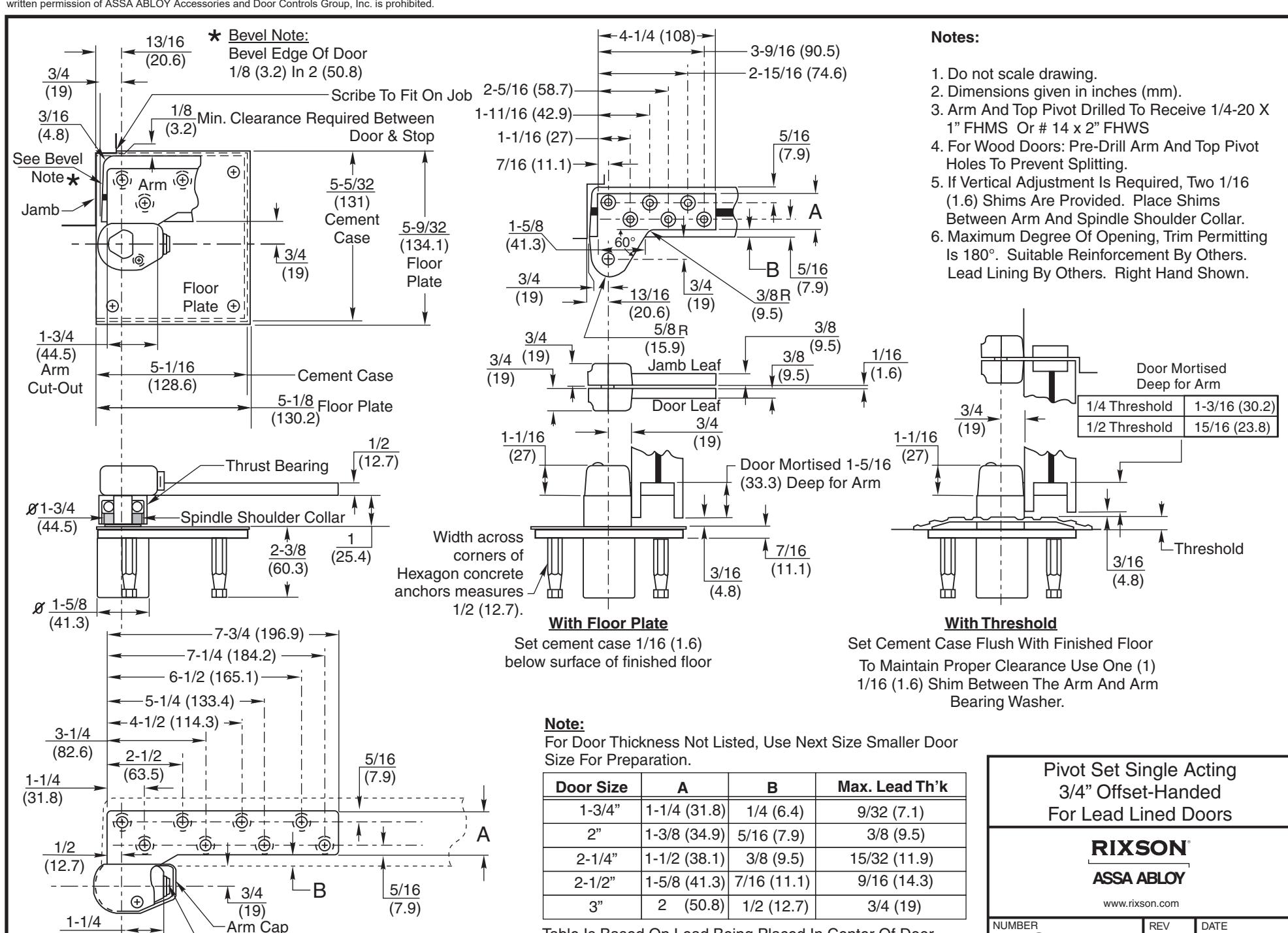

DO NOT SCALE DRAWING

Pivot Set Single Acting 3/4" Offset-Handed For Lead Lined Doors

ASSA ABLOY RIXSON ®

www.rixson.com

IS-L117 NUMBER DATE

REV 3

05-24
