Norton Rixson H345 Top Pivot, Center Hung Installation Instructions_IS-H345

Notes:

• 1. Do not scale drawing.
• 2. All dimensions are in inches.

Installation Instructions:

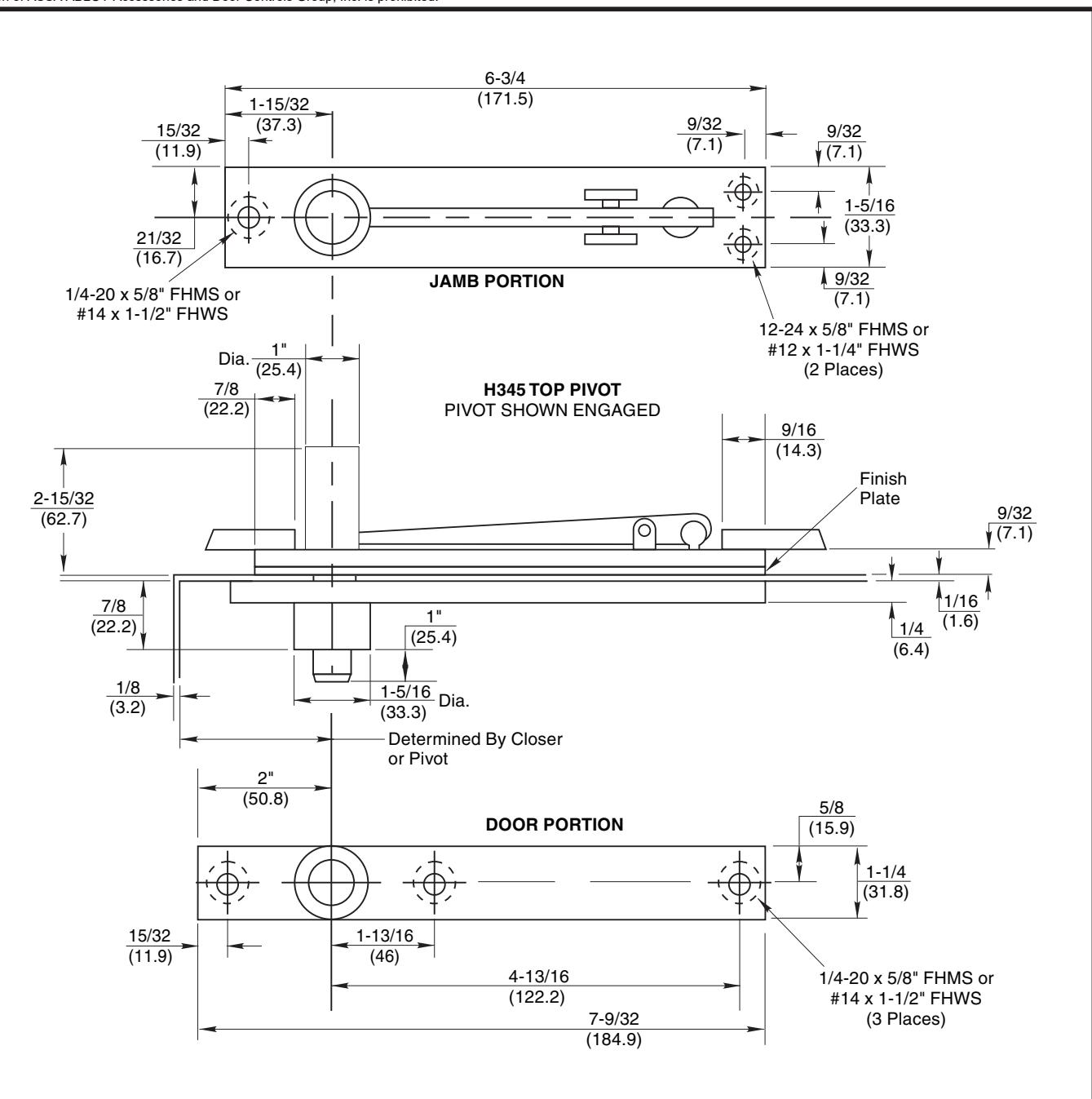

• 1. Prepare door and frame per details shown.
• 2. To insure proper operation of door, the centerline of the top pivot pin must be straight and plumb with bottom spindle.
• 3. Install jamb portion with pin retracted.
• 4. Install door portion.
• 5. Place door on bottom pivot and raise door to vertical position.
• 6. Engage top pivot pin by turning adjusting screw clockwise when door portion is in alignment with the jamb portion.
