Installation Instructions:

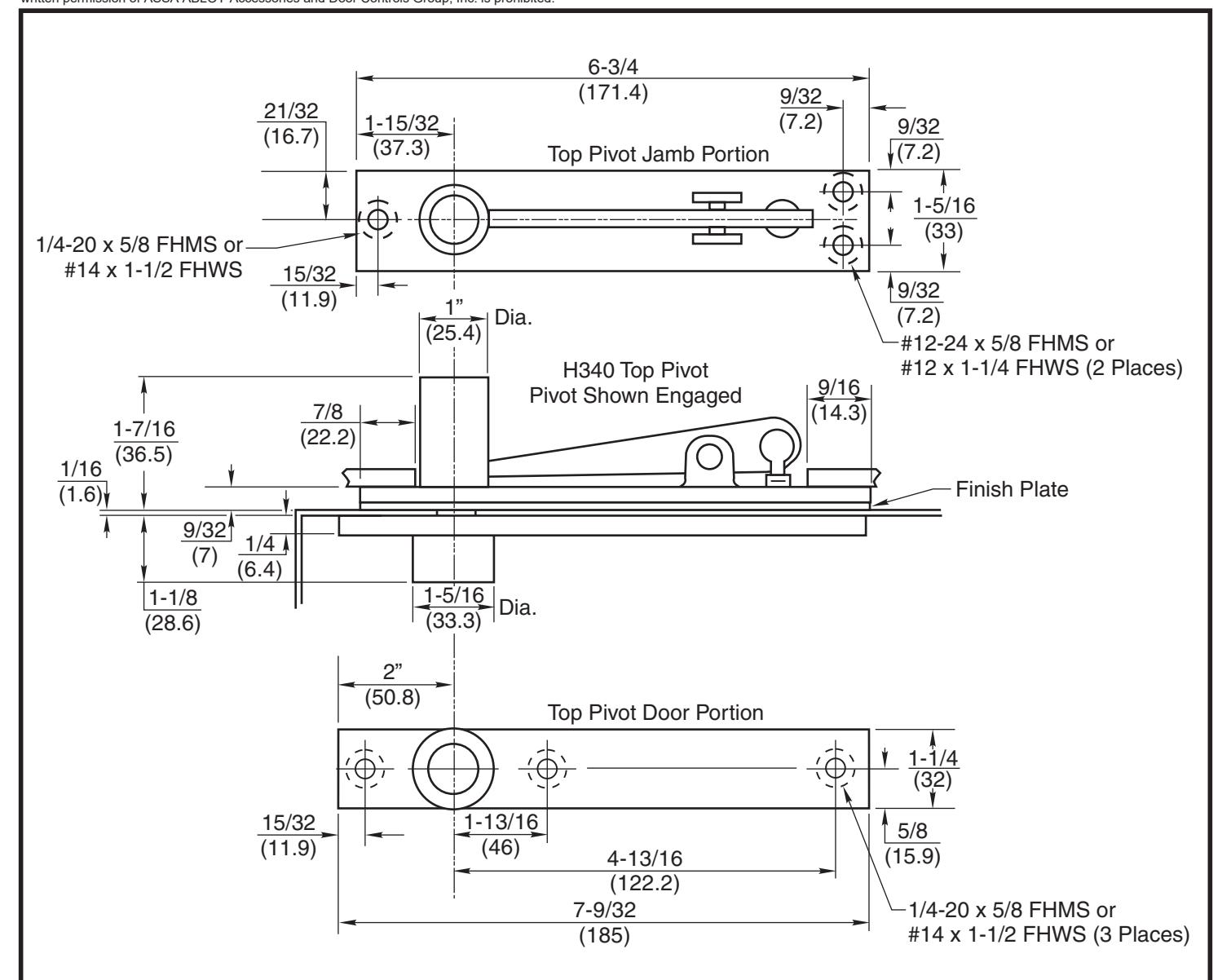

- 1. Prepare door and frame per details shown.
- 2. To insure proper operation of door, the centerline of the top pivot pin must be straight and plumb with bottom spindle.
- 3. Install jamb portion with pin retracted.
- 4. Install door portion.
- 5. Place door on bottom pivot and raise door to vertical position.
- 6. Engage top pivot pin by turning adjusting screw clockwise when door portion is in alignment with the jamb portion.
Notes:
- 1. Do not scale drawing.
- 2. Dimensions are given in inches (mm).
|
H340 Top Pivot
Center Hung |
RIXSON | ||
|---|---|---|---|
| ASSA ABLOY www.rixson.com | |||
| Non Handed | TEMPLATE NUMBER | REV | DATE |
| IS-H340 | 3 | 05-24 | |
